Summary of Contents for Outdoor GreatRoom Company CV-2424

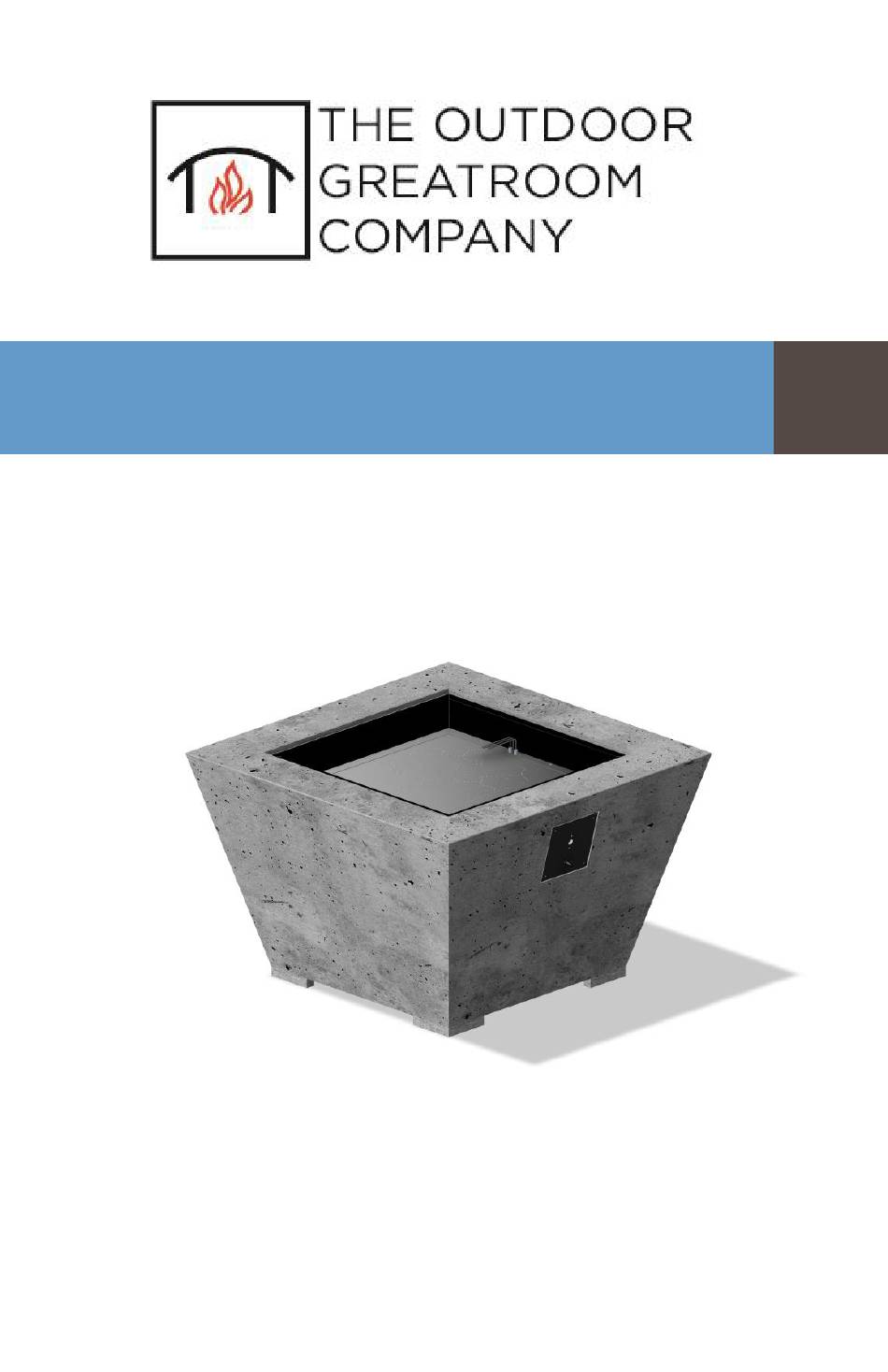

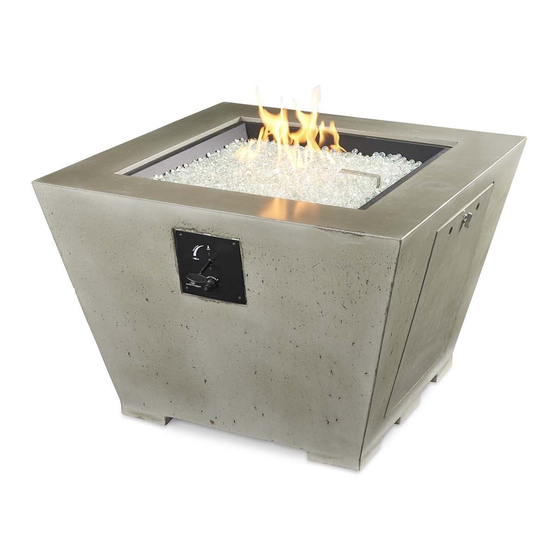

- Page 1 The Cove Fire Pit Installation Instructions for CV-2424...
-
Page 3: Table Of Contents
IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to hooking up your burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting instructions. DO NOT ATTEMPT TO INSTALL CFP2424 BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE®... -
Page 4: Included With Your Fire Pit
Included With Your Fire Pit Cove 2424 Base with Key Valve Control Panel Installed (CV-2424-BASE) (KV-CP-BLK) Cove 2424 Door (CV-2424-DOOR) Black Key (BF-KY-05) 24” x 24” Crystal Fire Plus Burner Kit with black trim (CFP2424-BLK) Refer to Crystal Fire® Plus Manual for items included with Crystal Fire®... -
Page 5: Assembly Instructions
Assembly Instructions 1. Remove Cove-2424-Base from Packaging crate Remove side panels from crate using a power drill with Philips head bit. Three People are required to lift base out of packaging and place into final location. CAUTION: Base is heavy, take all necessary precautions to prevent injury during installation. -
Page 6: Gas Connections
Gas Connections See Crystal Fire® Plus instructions for burner installation. All gas connections were completed at the factory. Check all connections for leaks. If needed, tighten connection with 2 wrenches and re-check for leaks. Attach burner valve to control panel with provided screws as shown below. Ensure sparker box is installed before this step. -
Page 7: Electrode Installation
4. Electrode Installation Plug both BLACK wires hanging from the burner into the back of the CF- SPARKER. If an orange wire is present, do not use it. The orange wire is for Direct Spark Ignition system only. Test system by pushing the button on the igniter. -
Page 8: Propane Tank Installation
Propane Tank Installation With the propane tank valve and key valve off, attach the propane regulator to the propane tank. Hand tighten, do not use a wrench for this connection. Lift and tilt the propane tank through the access door into place underneath the base. -
Page 9: Install Fire Media
6. Install Fire Media Scatter all included glass beads, lava rock, or other approved fire media evenly across entire burner surface. DO NOT OPERATE CRYSTAL FIRE® PLUS BURNER WITHOUT INCLUDED GLASS BEADS OR OTHER APPROVED FIRE MEDIA DO NOT OPERATE CRYSTAL FIRE® PLUS BURNER WITH BURNER COVER IN PLACE IMPORTANT Please consult your Crystal Fire®... -
Page 10: Operating Instructions
7. Operating Instructions Before operating your Cove 2424 fire pit, ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire® Plus Manual for information on proper leak checking and other critical safety information. Verify control valve is in OFF position. - Page 12 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit https://www.outdoorrooms.com/product-registration to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
