Summary of Contents for Outdoor GreatRoom Company CV-2424

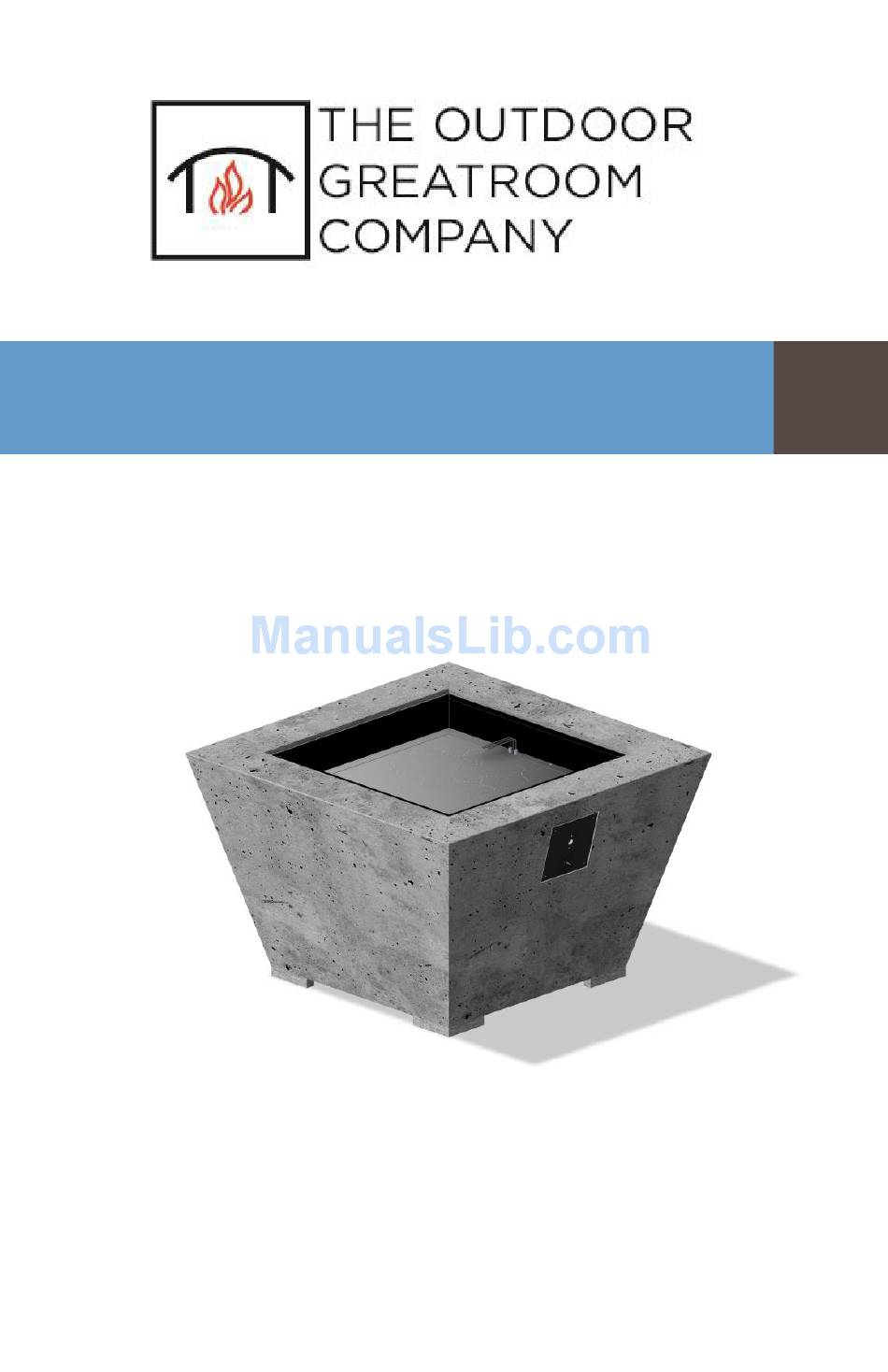

- Page 1 The Cove Fire Pit Installation Instructions for CV-2424...
-
Page 3: Table Of Contents
IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to hooking up your burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting instructions. DO NOT ATTEMPT TO INSTALL CF-2424 BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL. -
Page 4: Included With Your Fire Pit
Included With Your Fire Pit Cove 2424 Base with Key Valve Control Panel Installed (CV-2424-BASE) (KV-CP-BLK) Cove 2424 Door (CV-2424-DOOR) Black Key (BF-KY-05) 24” x 24” Crystal Fire Burner Kit with black trim (CF-2424-BLK) Refer to Crystal Fire Manual for items included with crystal fire burners. -
Page 5: Assembly Instructions
Assembly Instructions 1. Remove Cove-2424-Base from Packaging crate Remove side panels from crate using a power drill with Philips head bit. Three People are required to lift base out of packaging and place into final location. CAUTION: Base is heavy, take all necessary precautions to prevent injury during installation. -
Page 6: Gas Connections
3. Gas Connections Ensure key valve is in the OFF position before making any gas connections. For propane tank installations, install included propane hose and regulator to the control panel as shown below. Use two wrenches to ensure a gas tight connection. TIGHTEN CONNECTION Propane regulator SECURELY WITH WRENCH... -
Page 7: Electrode Installation
Attach flex line from the burner to gas valve as shown. Use two wrenches to secure connection. Drop burner into place in base. 4. Connect Ground wire and Electrode wire from burner to sparker box. Plug both BLACK wires hanging from the burner into the back of the sparker box. -
Page 8: Propane Tank Installation
5. Propane Tank Installation With the propane tank valve and key valve off, attach the propane regulator to the propane tank. Hand tighten, do not use a wrench for this connection. Lift and tilt the propane tank through the access door into place underneath the base. -
Page 9: Install Fire Media
6. Install Fire Media Scatter all included glass beads, lava rock, or other approved fire media evenly across entire burner surface. DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT INCLUDED GLASS BEADS OR OTHER APPROVED FIRE MEDIA DO NOT OPERATE CRYSTAL FIRE BURNER WITH BURNER COVER IN PLACE IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions... -
Page 10: Operating Instructions
7. Operating Instructions Before operating your Cove 2424 fire pit, ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire Manual for information on proper leak checking and other critical safety information. With the Key Valve in the OFF position, open the valve on the propane tank or natural gas supply. - Page 11 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/warranty-form to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
