Summary of Contents for Outdoor GreatRoom Company CV-54

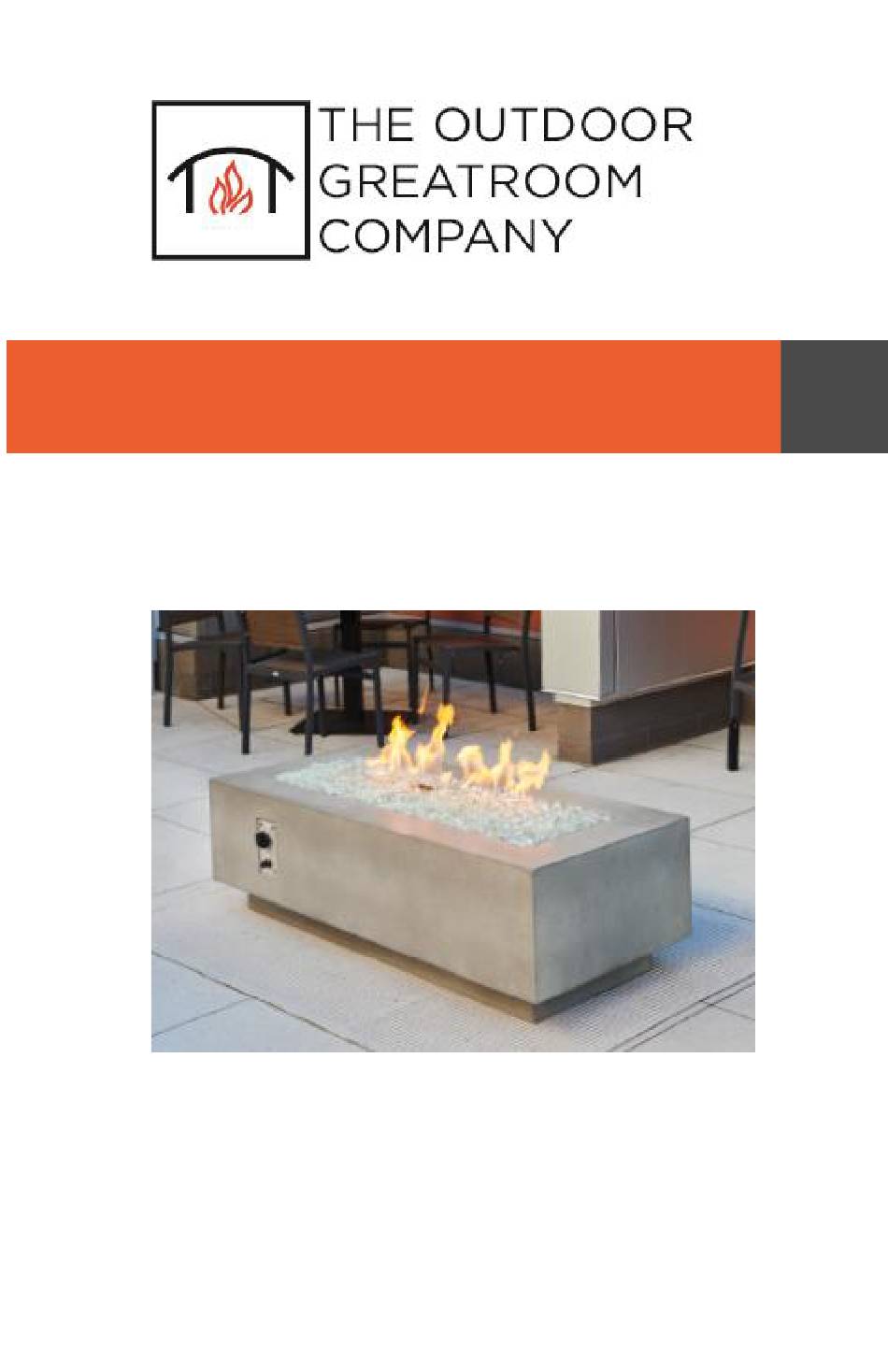

- Page 1 The Cove Fire Pit Installation Instructions for CV-54 and CV-72...
-
Page 2: Table Of Contents
IMPORTANT Contents Required Tools…………………………………..2 Included with your Fire Pit………………………..3 Assembly Instructions……………………………….4 Sparker Box Installation…………………………….4 Gas Connections……………………………………….5 Burner installation ………………….…………..….6 Fire Glass Installation……………………..……..…7 Frequently Asked Questions…….……….………8 Required Tools FOUR people are required for this installation. • 2 Open Ended Wrenches To secure gas connections. •... -
Page 3: Included With Your Fire Pit
Included With Your Fire Pit CV-54 / CV-72 CV-54/CV-72 Base and Pedestal with Control Panel Burner Plate (P/N: BP1242-CV, BP1264-CV) Burner Insert (BI737, BI757) Fire Glass Beads (2 bags CFG-D, 3 bags CFG-D) -
Page 4: Assembly Instructions
Assembly Instructions 1. Remove Cove Fire Pit Base from Packaging crate • Four People are required to lift base out of packaging and place into final location. 2. Sparker Box Installation • Remove sparker cap and hex nut. Insert AAA battery (not included) with + end out. -
Page 5: Gas Connections
3. Gas Connections • See Crystal Fire® Plus instructions for burner installation. All gas connections were completed at the factory. • Check all connections for leaks. If needed, tighten connection with 2 wrenches and re-check for leaks. • Attach burner valve to control panel with provided screws as shown below. - Page 6 Consult the troubleshooting section of the Crystal Fire® Plus Burner Owner’s Manual, if the spark is weak, intermittent, or not present. 6. Drop burner into base. CV-54/CV-72 • Place Pedestal down first, followed by the base • Place burner plate into recessed opening in base.
-
Page 7: Fire Glass Installation
7. Install Fire Media • Scatter all included glass beads, lava rock, or other approved fire media evenly across entire burner surface. DO NOT OPERATE CRYSTAL FIRE® PLUS BURNER WITHOUT INCLUDED GLASS BEADS OR OTHER APPROVED FIRE MEDIA IMPORTANT Please consult your Crystal Fire instruction manual for detailed Please consult your Crystal Fire®... -
Page 8: Frequently Asked Questions
If covering a GFRC item, use a one-way breathable cover as supplied by The Outdoor GreatRoom Company, LLC (OGC) or equivalent. Do not use other materials or objects to hold down or secure a protective cover on top or around the GFRC item. - Page 9 • We recommend cleaning your top regularly with a mild mixture of dish detergent and warm water; rinse thoroughly. How do I reseal Supercast surfaces? • First clean using a diluted solution of vinegar and water to remove any dirt or debris that may have accumulated on the surface and allow to dry.
- Page 10 Thank you for purchasing an Outdoor GreatRoom Company product! Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit https://outdoorrooms.com/pages/product- support product-registration to register your product. St. W. • Lakeville, MN 55044 9583 217 Toll Free: 1-866-303-4028 • Sales@OutdoorRooms.com...
