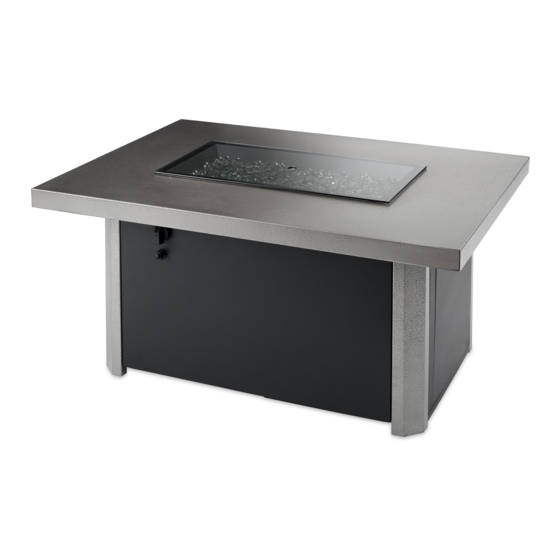

Caden Fire Table
Installation Instructions for Caden Fire Pit Table
CAD-1224
outdoorrooms.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caden and is the answer not in the manual?

Questions and answers

Summary of Contents for Outdoor GreatRoom Company Caden

  • Page 1 Caden Fire Table Installation Instructions for Caden Fire Pit Table CAD-1224 outdoorrooms.com...
  • Page 2: Table Of Contents

    IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
  • Page 3: About Your Fire Table

    ABOUT YOUR FIRE TABLE A. REQUIRED TOOLS • Utility Knife - To cut and remove packaging • 2 Open Ended Wrenches - To secure gas connections • Phillips Screw Driver (Do not use a drill to assemble) - For assembly •...
  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS WARNING Exposed edges may be sharp, use leather gloves when removing packaging and handling the base. Do not remove protective cardboard packaging until you have placed the fire pit in its desired location. UNPACKING Do not discard any packaging until assembly is complete and unit is tested.
  • Page 5 Screw legs onto end panel as shown below. Apply foam gasket to top of panel and legs. FOAM THIS SIDE END PANEL Screw legs onto door frame as shown below. Screw magnet onto door frame. Apply foam gasket to top of door frame and legs. DOOR FRAME SEE DETAIL A FOAM THIS SIDE...
  • Page 6: Top Assembly

    TOP ASSEMBLY Screw panel assemblies in steps 2 and 3 onto the top as shown be- low. Loosely tighten screws, final tightening of all screws after com- pleting step 6 of assembly. DOOR FRAME ASSEMBLY END PANEL ASSEMBLY outdoorrooms.com...
  • Page 7: Cf-Sparker And Control Valve Assembly

    CF-SPARKER AND CONTROL VALVE ASSEMBLY CF-SPARKER Installation • Locate CF-SPARKER inside of Crystal Fire burner box. • Remove CF-SPARKER cap and hex nut. Insert AAA battery (not included) with + end out. • Install CF-SPARKER into control panel as shown below. •...
  • Page 8: Bottom Component Assembly

    BOTTOM COMPONENT ASSEMBLY Screw tank tray onto bottom of the base as shown below. TANK TRAY outdoorrooms.com...
  • Page 9: Setting Up Your Burner

    SETTING UP YOUR BURNER ATTENTION Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device. DO NOT USE TEFLON TAPE OR PIPE DOPE ON FLARE FITTINGS. A. GAS CONNECTIONS WARNING Ensure valve is in the OFF position before making any gas connections.
  • Page 10: Burner Installation

    IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
  • Page 11: Electrode Installation

    C. ELECTRODE INSTALLATION • Plug both BLACK wires hanging from the burner into the back of the CF-SPARKER. If an orange wire is present, DO NOT USE IT. The orange wire is for Direct Spark Ignition system only. • Test system by pushing the button on the igniter.
  • Page 12: Miscellaneous

    4. MISCELLANEOUS WARNING A. FIRE MEDIA INSTALLATION • Scatter all included glass beads, lava DO NOT OPERATE CRYSTAL FIRE rock, or other approved fire media BURNER WITHOUT INCLUDED GLASS evenly across entire burner surface. BEADS OR OTHER APPROVED FIRE MEDIA. WARNING B.
  • Page 13: Operating Instructions

    OPERATING INSTRUCTIONS IMPORTANT Before operating your CAD-1224, ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire manual for information on proper leak checking and other critical safety information. With the valve on the fire pit in the ATTENTION OFF position, open the valve on the propane tank or natural gas supply.
  • Page 14: Warnings

    6. WARNINGS IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: light- ing and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
  • Page 16 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. Warranty: Fire pit tables are covered under a 1 year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/product-registration to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
