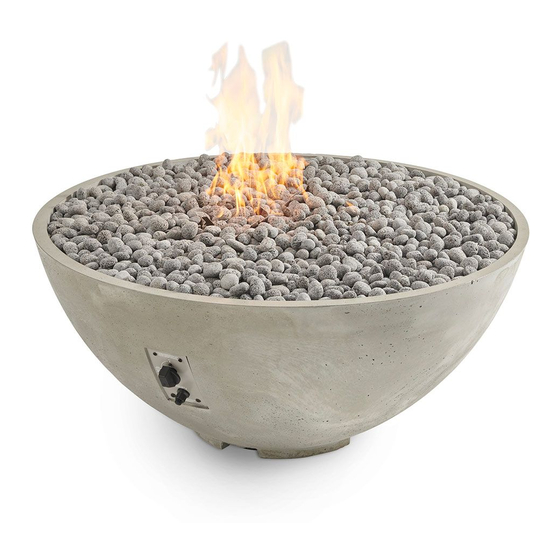

- Page 1 The Cove Fire Pit Installation Instructions for Round Cove Fire Pits...
-
Page 3: Table Of Contents
IMPORTANT Please consult your Crystal Fire instruction manual for detailed Contents instructions and important information related to the burner installation including: lighting and operating instructions, safety Required Tools…………………………….…..2 information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER WITHOUT Included with your Fire Pit……………….3 FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL. -
Page 4: Included With Your Fire Pit
Included with your Fire Pit Crystal Fire® Plus (CFP) Burner Kit... -
Page 5: Assembly Instructions
Assembly Instructions Included with your Fire Pit A. 4 Fasteners 1. First, unscrew the shipping block with a power drill. Discard B. 4 B-Bolts board. It will not be needed for further assembly of this C. 4 C-Bolts product. 2. Remove fire pit base from the crate you received it in. Place D. -
Page 6: Cf-Sparker Installation
CF-SPARKER Installation Locate CF-SPARKER inside of crystal fire burner box. Remove CF-SPARKER cap and hex nut. Insert AAA battery (not included) with + end out. Install CF-SPARKER into control panel as shown below. Depress CF-SPARKER button to test your sparker. ... -
Page 7: Thermocouple Installation
Thermocouple Installation • Refer to Crystal Fire® Plus instruction manual for detailed attachment of thermocouple. • Attach thermocouple to burner valve as shown below. Electrode Installation Connect igniter and ground wire to sparker box. Both wires can connect to either connection point. The unit will operate in either configuration. -
Page 8: Glass Installation
Glass Installation 1. Scatter all the included glass beads evenly onto burner surface. DO NOT OPERATE CRYSTAL FIRE® PLUS BURNER WITHOUT INCLUDED GLASS BEADS OR OTHER APPROVED FIRE MEDIA DO NOT OPERATE CRYSTAL FIRE® PLUS BURNER WITH BURNER COVER IN PLACE... -
Page 9: Cv-30-E Installation
CV-30-E Installation • Place burner plate into Cove base. • Remove the 4 ¼-20 stainless steel screws installed in rivnuts. • Make gas connections. • Ignition wind guard should be oriented towards cutout in burner plate. As shown in detailed view. •... - Page 10 IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE® PLUS BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE®...
- Page 12 Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit https://www.outdoorrooms.com/product-registration to register your product. Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. St. W. • Lakeville, MN 55044 9583 217 Toll Free: 1-866-303-4028 •...
