Hypertherm Powermax65 Field Service Bulletin page 10

Machine interFace For raw arc Voltage

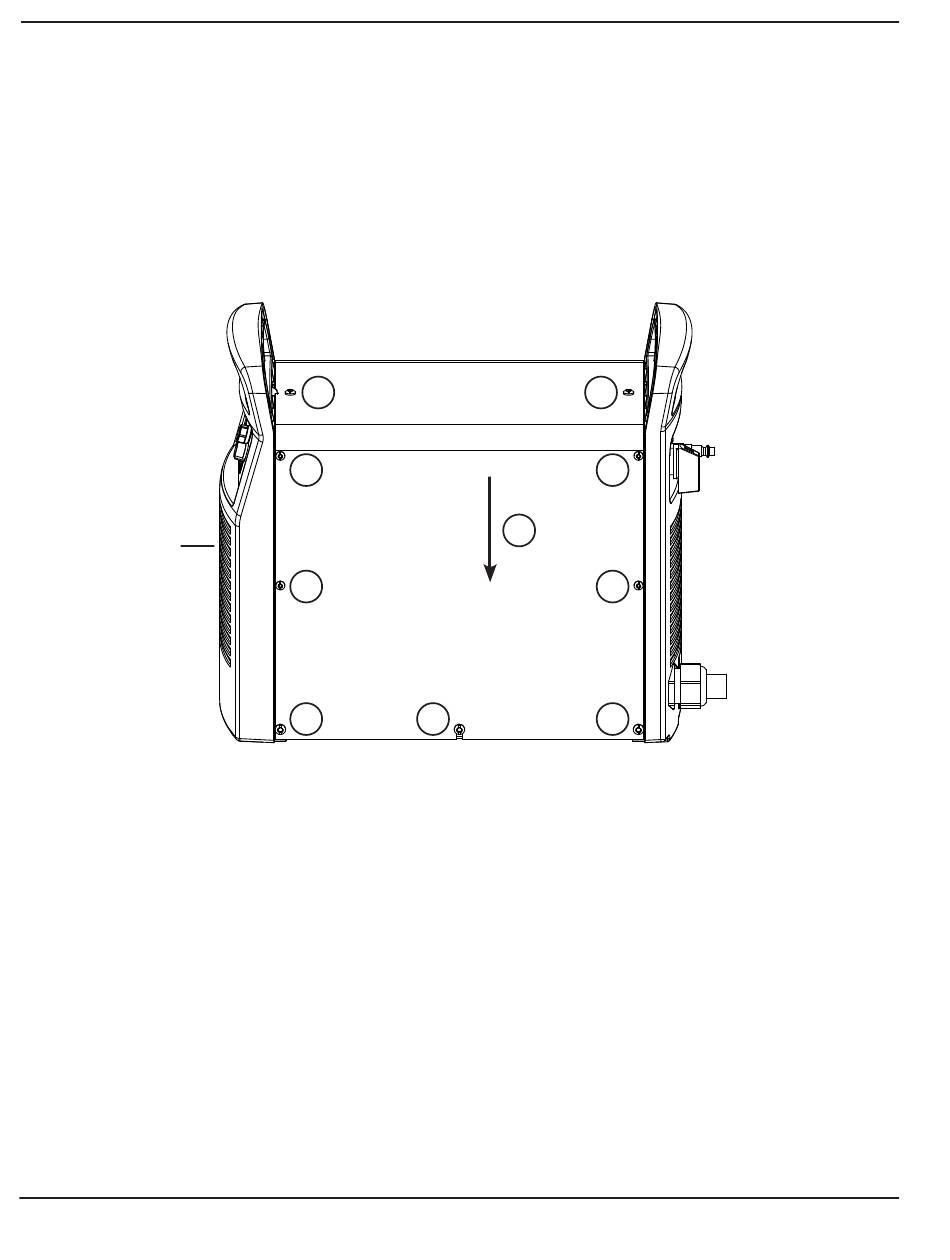

replace the power supply cover
1. Place the cover (3) over the power supply. Be careful not to pinch any wires.
2. Using a TORX or blade screwdriver, install the 8 small screws (2) into the power supply cover. Tighten the screws
to 15 in lbs (17.3 kg cm).
3. Using a TORX or blade screwdriver, install the 8 large screws (1) into the power supply cover. Tighten the screws
to 15 in lbs (17.3 kg cm).
