Copernicus Library On Wheels Assembly Manual page 6

Actual Size:
2
You will need: (Not to Scale)
Bent Stretcher
2x

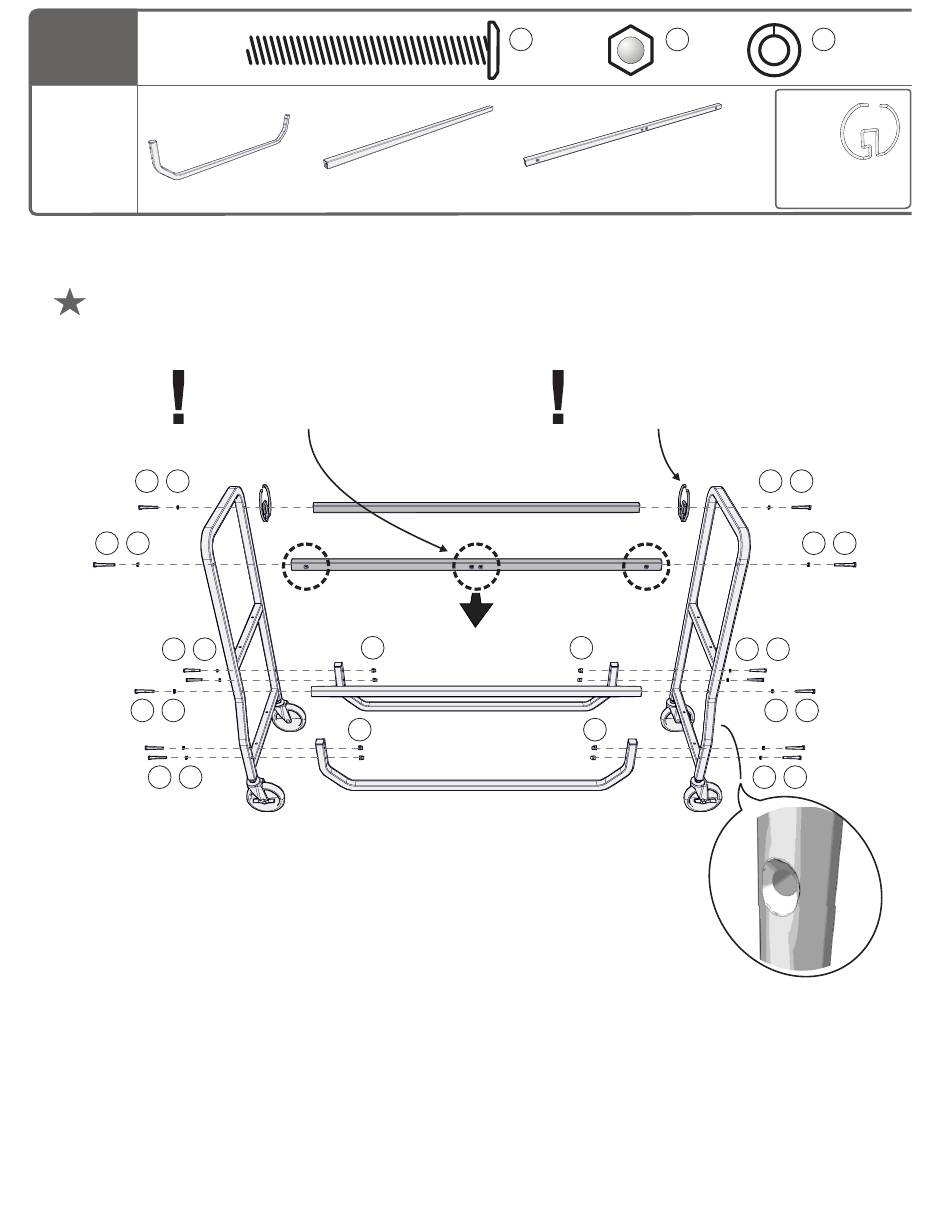

Attach Stretchers & Chart Loop Hooks
DO NOT TIGHTEN ANY FASTENERS UNTIL PROMPTED!
Hand tighten only
Stretcher with threaded inserts goes here.
Indents must face out.
A C
A C
A C
A C
A C
!
Important Note:
Please note that every hole on the frame
has one side indented. The orientation of
the indent may be very important at times
and will be noted.
Please make sure to orient indent as
instructed to make sure hardware holds
Straight Stretcher
2x
B
B
LW430-LWSTEM - Version B - 25 October 2024 - Copernicus Educational Products Inc.
A B
14x 8x
Straight Stretcher with Threaded Inserts
1x
(LWSTEM Only)
Install Chart Loop Hooks onto back stretcher
before securing (2x)
B
B
!
C
14x
LWSTEM
Only
Chart Loop Hook
2x
C A
C A
C A
C A
C A
Assemble with end frame
hole indents facing
outside of unit
