LW430
WARNING
Rubber Stop
8x (4 required)
Bent
Stretcher
2x

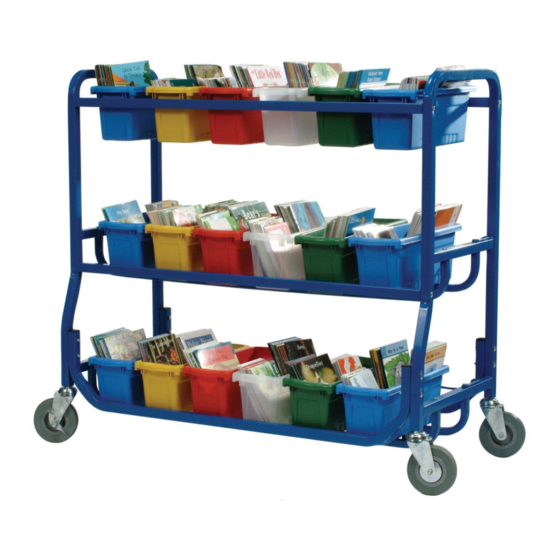

Library On Wheels
Assembly Guide
LW430_2014_B
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
LW430 - Version B - 14 October 2014 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Straight
Stretcher
3x
Outside
Frame
2x
Tub Support
4x
Back Stop
2x
5" Caster
(2 with brakes)
4x
Please Recycle
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Copernicus LW430
Summary of Contents for Copernicus LW430
- Page 1 To be used under direct supervision of an adult. Straight Stretcher Outside Frame Tub Support Rubber Stop 8x (4 required) Back Stop Bent Stretcher 5” Caster (2 with brakes) LW430 - Version B - 14 October 2014 - Copernicus Educational Products Inc. Please Recycle...
- Page 2 Caster Large Washer Rubber Stop Caster Lock 8x (4 required) Back Stop Washer Contents - Box 2 Caster Nut Divided Tub Max Load Assembly 10 lbs/tub Spanner LW430 - Version B - 14 October 2014 - Copernicus Educational Products Inc.
- Page 3 “The beautiful thing about learning is that no one can take it away from you.” - B. B. King “The beautiful thing about learning is that no one can take it away from you.” - B. B. King LW430 - Version B - 14 October 2014 - Copernicus Educational Products Inc.
- Page 4 You may need to use your adjustable wrench (Spanner Wrench) to fully tighten to frame. IMPORTANT: Routine Maintenance Verify regularly that casters are secure to the unit Re-tighten if needed with Wrench LW430 - Version B - 14 October 2014 - Copernicus Educational Products Inc.
- Page 5 Assemble with end Please make sure to orient indent as frame hole indents facing outside of unit instructed to make sure hardware holds properly. LW430 - Version B - 14 October 2014 - Copernicus Educational Products Inc.
- Page 6 Rubber Stop 8x (4 required) Attach Tub Supports and Back Stops Push down firmly while twisting Hint: Moistening the rubber helps NOW TIGHTEN ALL FASTENERS FIRMLY (22 total) LW430 - Version B - 14 October 2014 - Copernicus Educational Products Inc.
