FTT432, FTT432-USB
Assembly Guide
FTT400 _2016_A
Check out our other products online at
www.copernicused.com
WARNING
Handle
x2
BACK
Back Frame
x1
FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
2

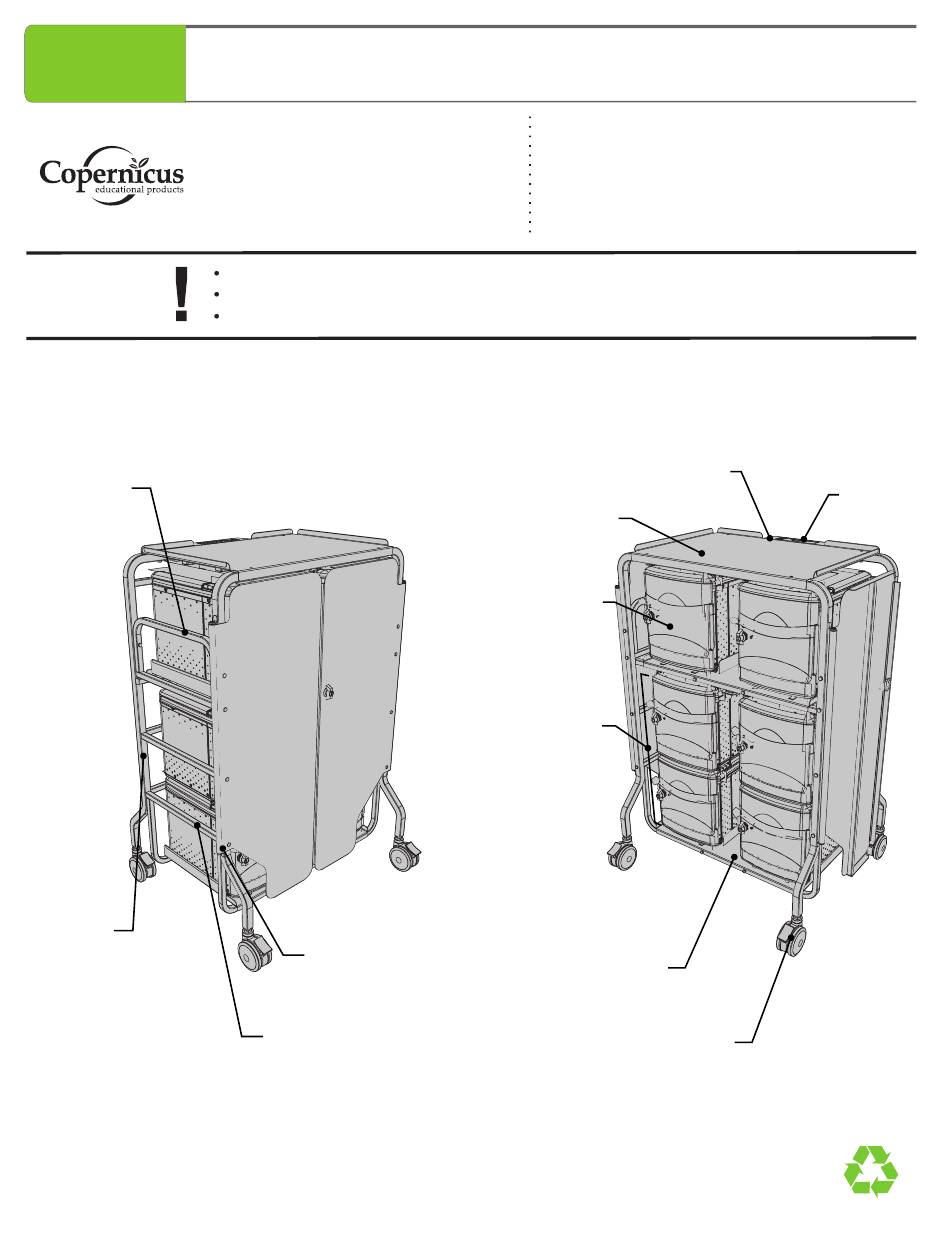

Tech Tub Premium Cart
This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
32 Device Premium Cart
FRONT
Front Frame and Doors
x1
Side Stretchers
x4
®
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Top Shelf
®
2
- 6 Device
Tech Tub
(FTT600) or
(FTT600-USB)
®
- 10 Device
Tech Tub
2
(FTT1000) or
(FTT1000-USB)
Power Timer
Housing
x1
x1
x2
x2
FRONT
Tub Shelf
x2
4" Caster With Brake
x4
Power
Timer
x1
BACK
Please Recycle
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Copernicus Tech Tub2 FTT432
Summary of Contents for Copernicus Tech Tub2 FTT432
- Page 1 (FTT1000) or (FTT1000-USB) BACK BACK FRONT FRONT Back Frame Front Frame and Doors Tub Shelf Side Stretchers 4” Caster With Brake Please Recycle FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
-
Page 2: North American
To validate your warranty, submit the ON-LINE form at www.copernicused.com Enter a draw to win a Copernicus Product for your classroom at the same time! Component Frame Warranty Warranty Warranty Frame FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc. -
Page 3: Before You Begin
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST. Email our Tech Support Service at info@copernicused.com Email our Tech Support Service Check out some of our other great products! www.copernicused.com FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc. - Page 4 Do not install or use the electrical components of this unit during a lightning storm. Electrical Shock Do not climb on, hang from or suspend objects from any components of your product unless otherwise specified. Climb Hazard FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
- Page 5 Tech Tub 2® Tech Tub 2® Timer (FTT600-0) (FTT600-0) (25526) Caster Wrench 7/16” Hex Wrench Power Not to Scale Not to Scale Timer Cable FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
- Page 6 Please note, star washers are critical components for electrical safety. Star washers must be included and fasteners fully tightened to prevent the risk of electric shock. M6 Star Washer FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
- Page 7 Flip frame over onto its head Latch Handle Close Doors and latch them by turning latch handle counter clockwise to the upright position (as shown) FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
-
Page 8: Install Casters
2 Fasten shelf to front and back frame 1 Hook back of shelf under back frame FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc. - Page 9 Hook back flange of Tub Shelf under back frame Fasten front of shelves to front frame and swing front edge down overtop of front frame back back FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
- Page 10 3 Install Power Timer Front Cover 4 Secure Power Timer Front Cover Hook top of cover onto mounting bracket then swing down into place. FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
- Page 11 Tech Tub onto Cart. Slide the 10 device tubs onto the lower shelf and put the 6 device tubs on the upper shelf. FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
- Page 12 Secure cable using cable clip Once the cable has been zip tied in place, trim any excess length off the end of the zip ties. FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
-
Page 13: Power Cords
To keep the power cables organized keep the excess length of cable wrapped on the back of the Tech Tub . Leave enough slack to prevent unnecessary strain on the power cables or power timer. FTT400 - Version A - Patent Pending - Released September 29th, 2016 - Copernicus Educational Products Inc.
