FTT124
FTT124-USB
WARNING
Please Recycle
FTT124_124-USB - PATENT PENDING - Version A -
2

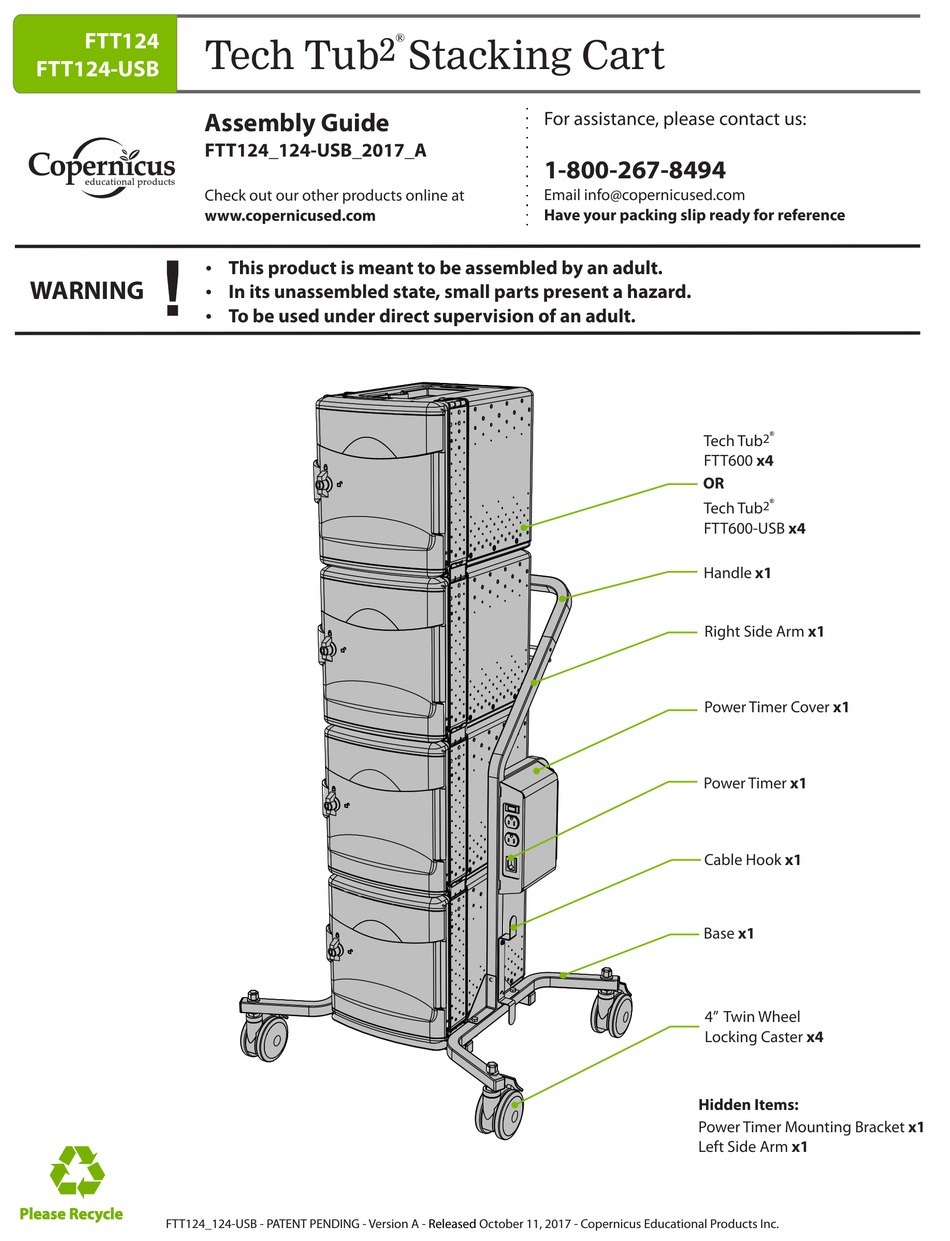

Tech Tub Stacking Cart
Assembly Guide
FTT124 _124-USB_2017_A
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
Ÿ
In its unassembled state, small parts present a hazard.
Ÿ
To be used under direct supervision of an adult.
Ÿ
®
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Released
October 11, 2017 - Copernicus Educational Products Inc.
®
Tech Tub
2
FTT600 x4
OR
®
2
Tech Tub
FTT600-USB x4
Handle x1
Right Side Arm x1
Power Timer Cover x1
Power Timer x1
Cable Hook x1
Base x1
4" Twin Wheel
Locking Caster x4
Hidden Items:
Power Timer Mounting Bracket x1
Left Side Arm x1
