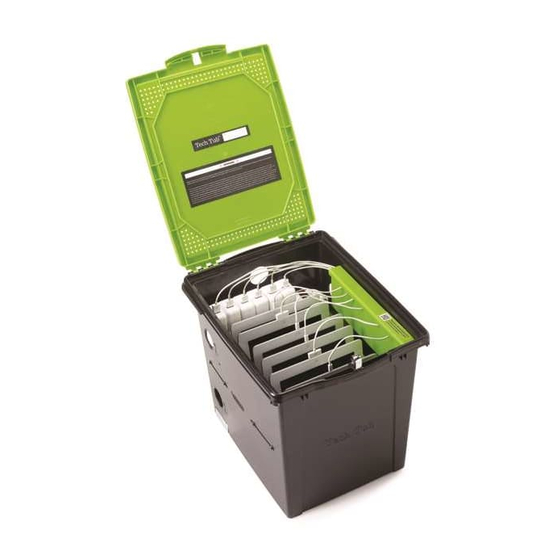

TEC600C, TEC601C
®
Tech Tub for 6 Devices
TEC600C-8,
TEC601C-8
Assembly Guide
Check out our other products online at www.copernicused.com
For assistance, please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com.
Have your packing slip ready for reference.
Please Recycle
Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
Advertisement
Related Manuals for Copernicus Tech Tub TEC600C
Summary of Contents for Copernicus Tech Tub TEC600C
- Page 1 Check out our other products online at www.copernicused.com For assistance, please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com. Have your packing slip ready for reference. Please Recycle Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 2 Please visit www.copernicused.com/warranty and complete the form within 10 business days from product All Components Warranty assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email info@copernicused.com to start your warranty claim.
- Page 3 Unplug when not in use. Read the electrical specifications of any electronic equipment you are using with your Electronic Copernicus products. Failure to read these specifications and follow their instructions could Equipment result in damage to your equipment or personal injury.
- Page 4 M4 Lock Washer Foam Cable Hook M4 x 14mm Carriage Screw M4 Flat Washer Power Strip Hook & Loop Divider Straps (255153) (23229) Power Strip Padlock Bracket (232281) Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 5 Adapter extension M4 x 14mm Cable Hook cables Carriage Screw (255155) M4 Flat Washer Divider Hook & Loop Power Strip Straps (23229) (255153) Power Strip Padlock Bracket (232281) Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 6 Tighten fully. Power strip cord end Keep your power strip upside Pay close attention to down as shown. This will make the assembly easier! orientation of power strip. Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 7 Pull power strip cable out of the ® Tech Tub completely. This will make the installation of the power Run power strip cable strip easier! out of the bottom back hole. Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 8 You will need: (Not to Scale) Power Brick Wall Adapter TEC600C TEC601C ONLY Plug In Power Adapters Tuck Power Brick and excess cable in behind the power strip. Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 9 Tuck Power Adapter and excess cable in behind the power strip. Route Charging Cable through Cable Management Channel Push cable into cablemanagement channel Route cable out through slots Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 10 Wrap Power Strip Cable for Transport Lock Lid with Padlock Note: Padlock will not lock without key Plug cable directly into wall outlet. DO NOT PLUG THIS POWER STRIP INTO ANOTHER POWER STRIP. Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 11 (Not to Scale) Allen Key 4mm Mount Locking Block Label facing Washer goes upwards INSIDE tube Washer goes UNDER tube Table Countertop Underside Drilled holes from Step 6 Section View Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
- Page 12 Push Tech Tub all the way back until the Locking Block is completely in channel. Secure Locking Pin with Padlock Slide Locking Pin through hole on on other side. ® Tech Tub Version B - Released October 25, 2021 - Copernicus Educational Products Inc.
