Copernicus Library On Wheels Assembly Manual page 4

LW430

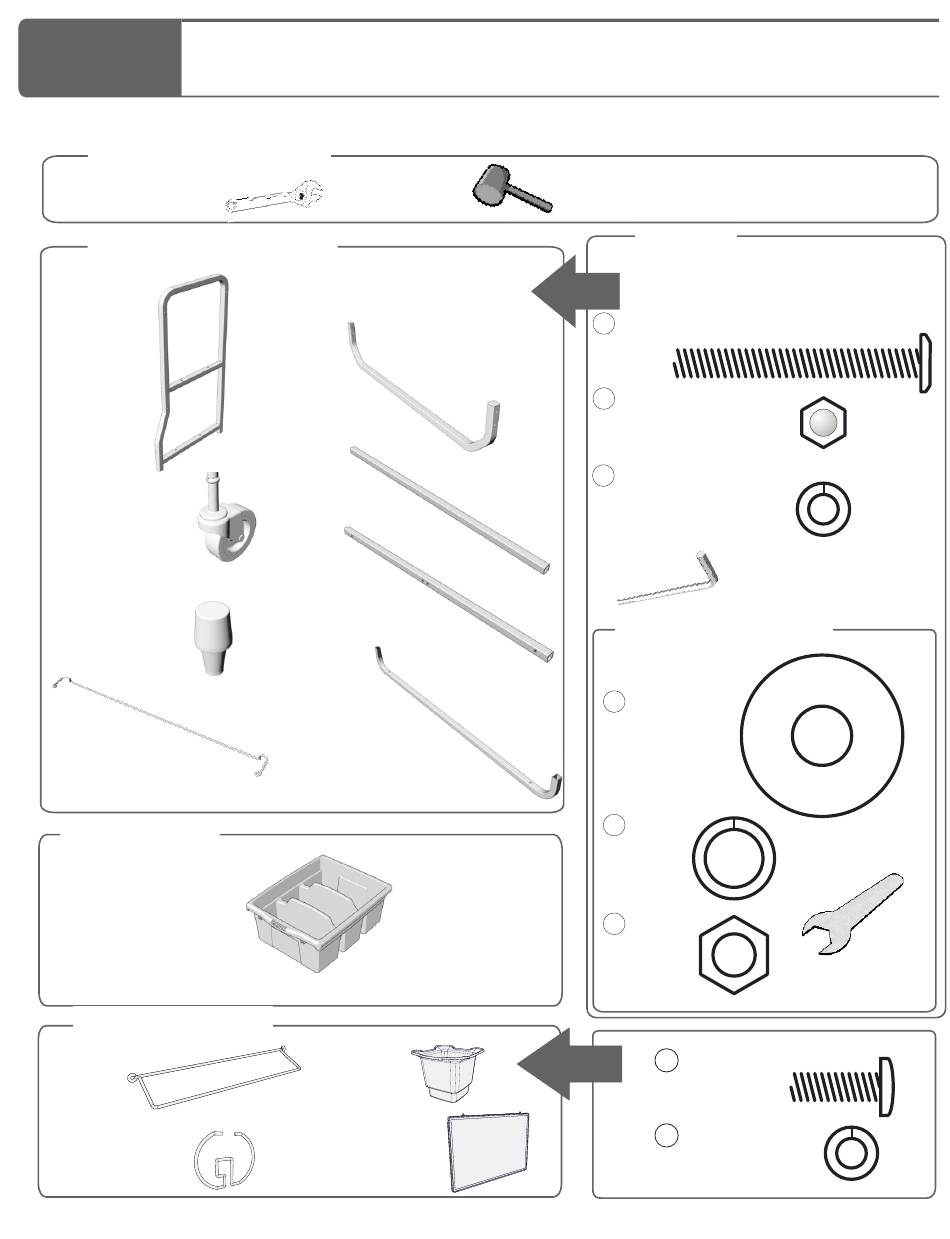

Parts
LWSTEM
Before beginning, you should have:
Additional tools required:
Adjustable wrench
Contents - LW430/LWSTEM-0
End Frame
2x
5" Casters
4x (2 with brakes)
Rubber Stop
8x (4 required)
Back Stop
2x
Contents - Box 2
Divided Tub
9x
Contents - LWSTEM-CB
Tiny Tub Rack
2x
Chart Loop Hook
2x
(31062)
Rubber mallet
Bent
Stretcher
2x
Straight
Stretcher
2x
Straight
Stretcher
with threaded inserts
1x
Tub Support
4x
Max Load
10 lbs/tub
Tiny Tub
8x
Whiteboard
1x
(AC455)
LW430-LWSTEM - Version B - 25 October 2024 - Copernicus Educational Products Inc.
Hardware
Actual Size
In Box 1
M6 x 55mm Bolt
A
(43251)
22x
B
M6 Acorn Nut
(43271)
8x
C M6 Lock Washer
(43273)
22x
Assembly
Wrench
1x
(Not to scale)
Caster Hardware Bag
D
Caster Large
Washer
4x
E
Caster Lock
Washer
4x
F
Caster Nut
4x
In LWSTEM
M6 x 19mm Screw
G
Box only
4x
(43219)
M6 Lock Washer
H
4x
(43273)
Caster Wrench
1x
