Copernicus Library On Wheels Assembly Manual page 5

Actual Size:
1
You will need:
Assembly
Spanner
1x

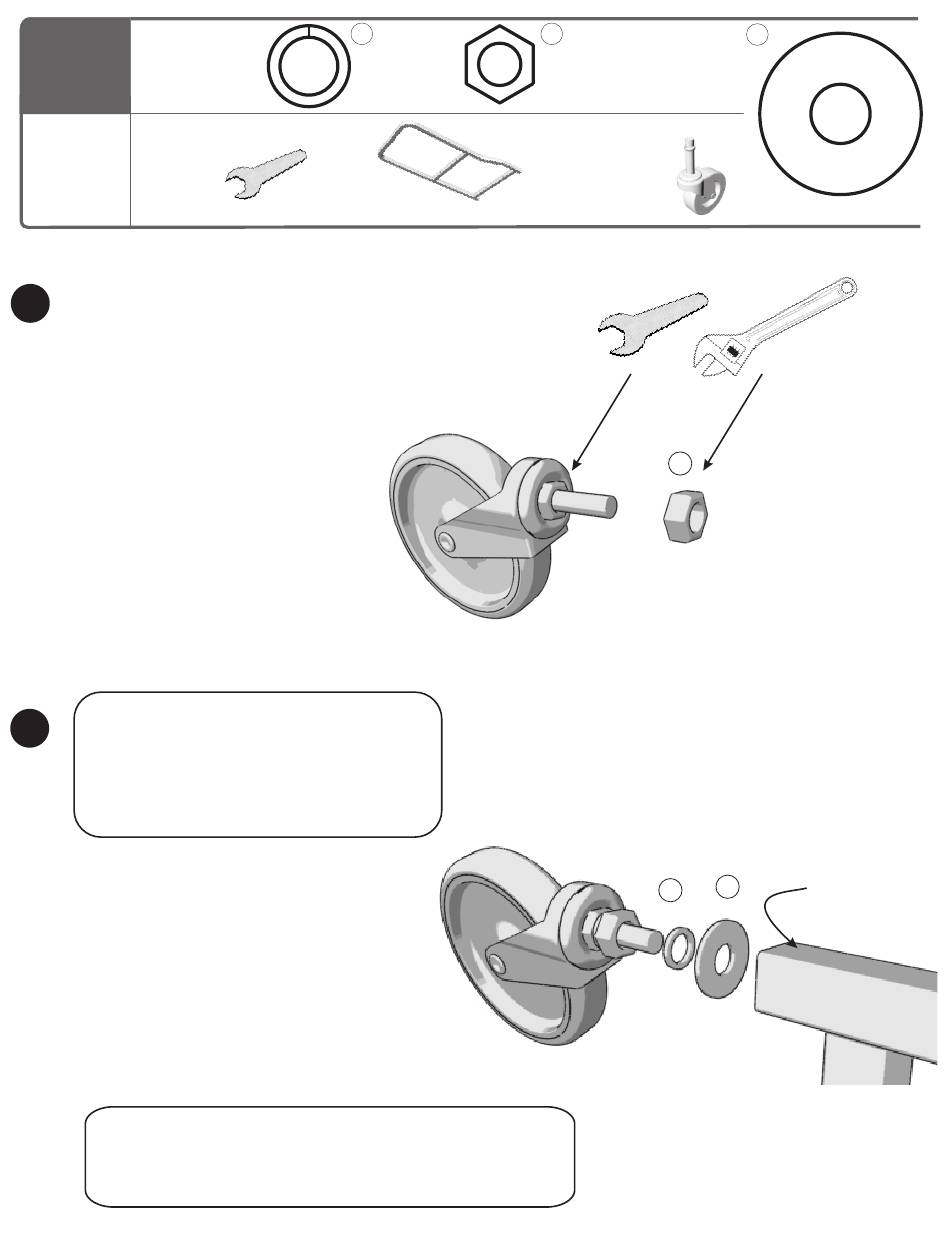

Attach Casters
Install nut on caster stem
Ÿ
1
Using Spanner Wrench provided and your own
Ÿ
Adjustable Wrench, tighten nut against the
caster.
!
Note: it is recommended that casters
2
with brakes be located both front or
both rear. The rear location is
preferred to prevent children from
playing with the brakes.
Place lock washer onto caster stem
Ÿ
Follow with large flat washer
Ÿ
Carefully thread the casters into the ends of
Ÿ
the outside frames. Slowly tighten by the stem
base only.
Tighten firmly. Make sure lock washer is
Ÿ
collapsed.
You may need to use your adjustable wrench
Ÿ
(Spanner Wrench) to fully tighten to frame.
IMPORTANT: Routine Maintenance
Verify regularly that casters are secure to the unit
Ÿ
Re-tighten if needed with Wrench
Ÿ
E
4x
(Not to Scale)
End Frame
2x
LW430-LWSTEM - Version B - 25 October 2024 - Copernicus Educational Products Inc.
F
4x
5" Casters
4x (2 with brakes)
F
D
E
D
4x
!
Tighten firmly
End Frame
