ICP DAS USA ECAT-2024 Series Quick Start Manual

Hide thumbs Also See for ECAT-2024 Series:

Advertisement

Quick Links

Packing List
In addition to this guide, the package includes the following items:
ECAT-202x Series
Technical Support
service@icpdas.com
www.icpdas.com
 For Desktop Web
Related Information
For more detailed information related to the manual, hardware manual:
http://www.icpdas.com/en/download/index.php?model=ECAT-2024
ECAT-2024/2028 series Quick Start
Resources
How to search for ESI, manuals and spec
information on ICP DAS website.
 For Mobile Web
ECAT-202x
ECAT-202x
v1.1, Sep. 2024
P1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECAT-2024 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ICP DAS USA ECAT-2024 Series

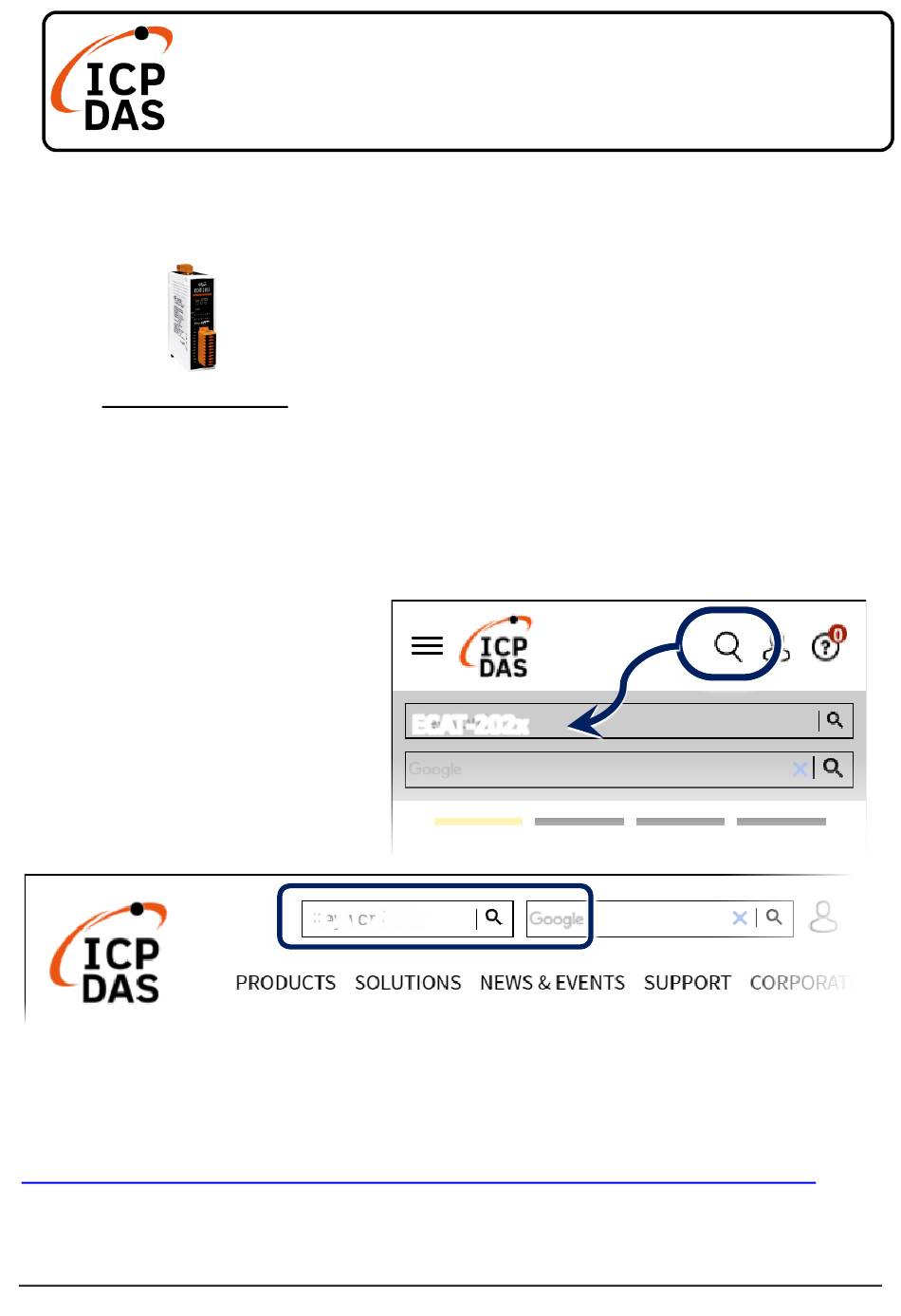

  • Page 1 ECAT-2024/2028 series Quick Start v1.1, Sep. 2024 Packing List In addition to this guide, the package includes the following items: ECAT-202x Series Resources How to search for ESI, manuals and spec Technical Support information on ICP DAS website. service@icpdas.com  For Mobile Web www.icpdas.com ECAT-202x ...
  • Page 2 Connecting the Power and Host ※Switch on module and connect it to an EtherCAT network NOTE: Attaching an ESC directly to an office network will result in network flooding, since the ESC will reflect any frame – especially broadcast frames – back into the network (broadcast storm). 1) Connect the Host device to the IN port on ECAT I/O module.
  • Page 3 Run the EtherCAT MainDevice software (Beckhoff TwinCAT 2.X) Switch on power and execute the TwinCAT System Manager (Config mode) 1. I/O Devices  Right click  Scan Devices… 2. Click “OK” button 3. Choose the correct network device which is connected to Module and click “OK”...
  • Page 4 Multi-meter  Wiring the AO0  Connect the positive probe  (+) of Multi-meter to VOUT0 Connect the negative probe (-) (Pin 01) of Multi-meter to GND (Pin 03) ▲ECAT-2024 ▲ECAT-2028 ▲ECAT-2028C  Verifying AO functionality 1. Click AO0 and Output in the ...
