Packing List

In addition to this guide, the package includes the following items:

EC2-P32

Technical Support

service@icpdas.com

www.icpdas.com

 For Desktop Web

Related Information

For more detailed information related to the manual, hardware manual:

http://www.icpdas.com/en/download/index.php?model=EC2-P32

EC2-P32 series Quick Start

Resources

How to search for ESI, manuals and spec

information on ICP DAS website.

 For Mobile Web

EC2-P32

v1.0, Mar. 2023

Need help?

Do you have a question about the EC2-P32 Series and is the answer not in the manual?

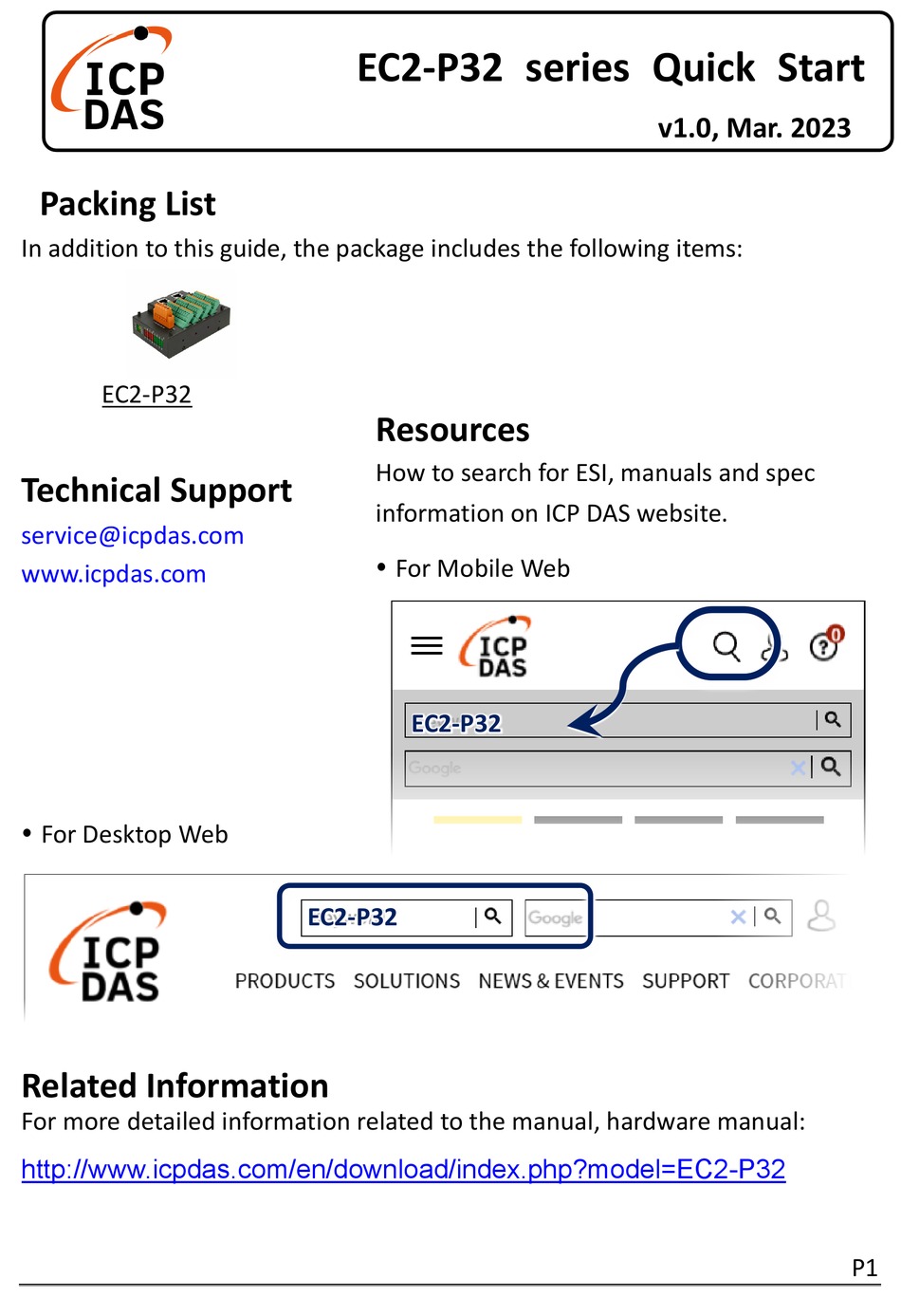

Page 1 EC2-P32 series Quick Start v1.0, Mar. 2023 Packing List In addition to this guide, the package includes the following items: EC2-P32 Resources How to search for ESI, manuals and spec Technical Support information on ICP DAS website. service@icpdas.com  For Mobile Web www.icpdas.com...
Page 2 Connecting the Power and Host ※Switch on module and connect it to an EtherCAT network NOTE: Attaching an ESC directly to an office network will result in network flooding, since the ESC will reflect any frame – especially broadcast frames – back into the network (broadcast storm). 1) Connect the Host device to the IN port on ECAT I/O module.
Page 3 1. I/O Devices  Right click  Scan Devices… 2. Click “OK” button 3. Choose the correct network device which is connected to Module and click “OK” button 4. Click “OK” to start scanning Click “OK” to activate the free run mode for TwinCAT system manager 5.
Page 4 Source To other To other channels channels DI.COM DI.COM Readback as 1 (Close to GND) Readback as 0 (Open) DI.GND DI.GND +S5 V +S5 V To other To other channel channels  Wiring the DI0 to GND  Connect +24V external power supply to the 24V ...
