Packing List

In addition to this guide, the package includes the following items:

EC2-C32

Technical Support

service@icpdas.com

www.icpdas.com

 For Desktop Web

Related Information

For more detailed information related to the manual, hardware manual:

http://www.icpdas.com/en/download/index.php?model=EC2-C32

EC2-C32 series Quick Start

Resources

How to search for ESI, manuals and spec

information on ICP DAS website.

 For Mobile Web

EC2-P16C16

EC2-C

v1.0, Apr. 2023

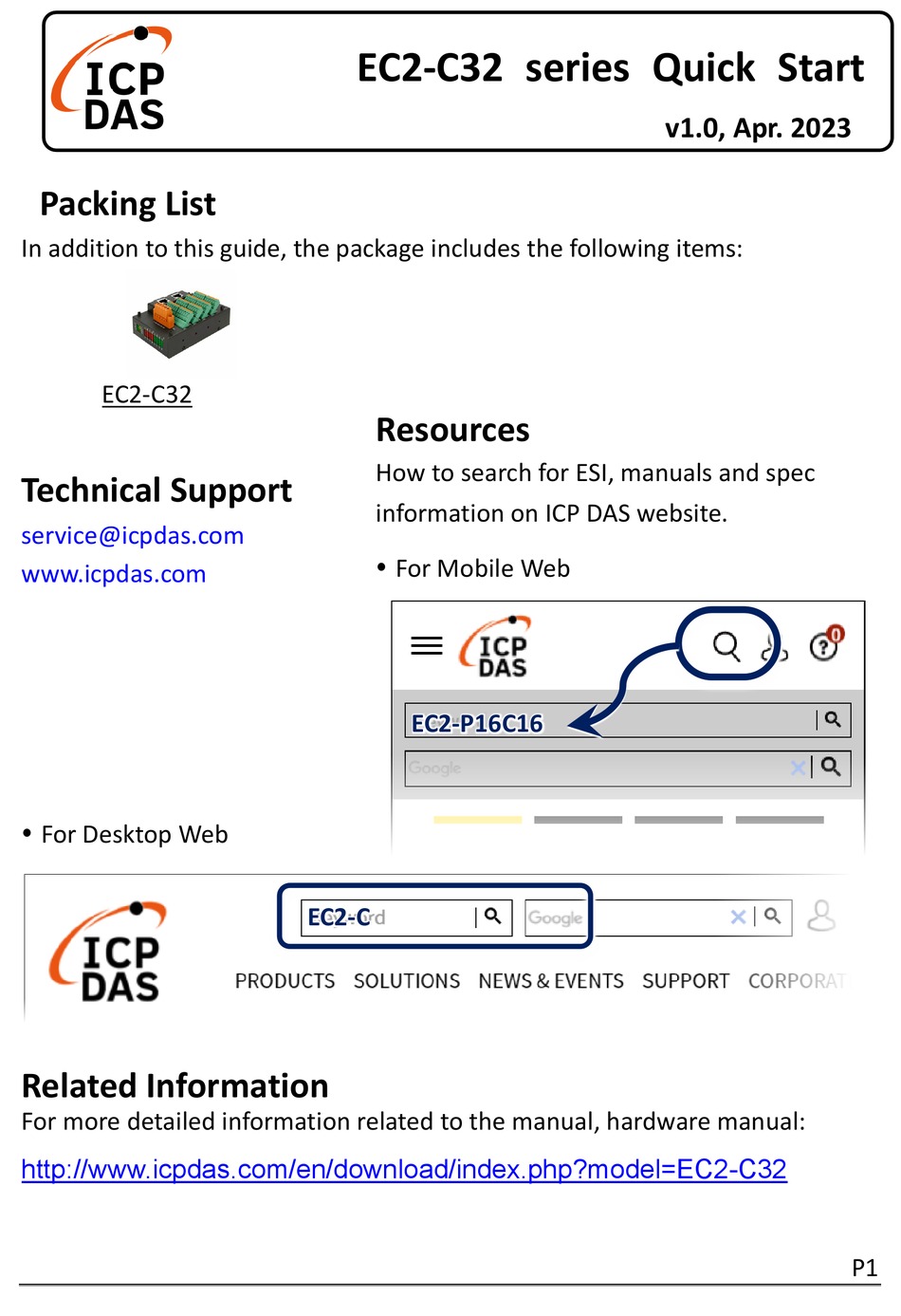

Page 1 EC2-C32 series Quick Start v1.0, Apr. 2023 Packing List In addition to this guide, the package includes the following items: EC2-C32 Resources How to search for ESI, manuals and spec Technical Support information on ICP DAS website. service@icpdas.com  For Mobile Web www.icpdas.com...
Page 2 Connecting the Power and Host ※Switch on module and connect it to an EtherCAT network NOTE: Attaching an ESC directly to an office network will result in network flooding, since the ESC will reflect any frame – especially broadcast frames – back into the network (broadcast storm). 1) Connect the Host device to the IN port on ECAT I/O module.
Page 3 1. I/O Devices  Right click  Scan Devices… 2. Click “OK” button 3. Choose the correct network device which is connected to Module and click “OK” button 4. Click “OK” to start scanning Click “OK” to activate the free run mode for TwinCAT system manager 5.
Page 4  Wire Diagrams Readback as 1 (ON State) Readback as 0 (OFF State) Driver Relay Resistance Load   Wiring the DO0 to LED Connect +24V external power supply to the 24V and LED(+)  Connect the DO0 to LED(-) ...
