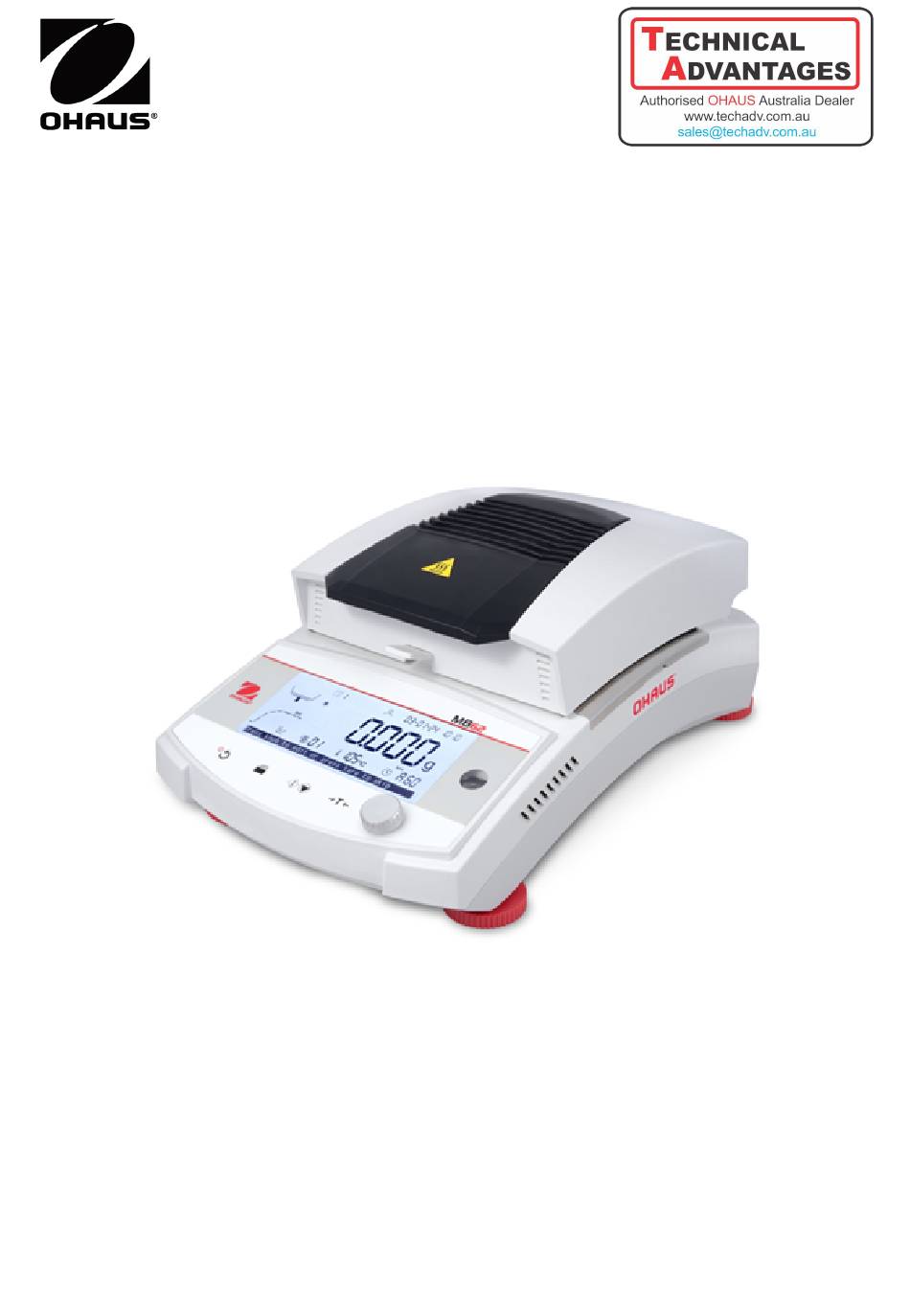

  • Page 1 MB62 Moisture Analyser Instruction Manual...
  • Page 3 3.6. Switch On or Off the Unit...................9 4. Structure and Functions..................10 4.1. MB62 Product Structure................... 10 4.2. MB62 Control Panel..................11 4.3. MB62 Displays and Light Indication..............12 4.4. Drying Program Segment Definition..............14 5. Operation........................18 5.1. Make a Measurement..................19 5.1.1.
  • Page 4 5.5.2. Auto Printing...................40 5.5.3. Print Contents..................40 5.5.4. Connect to a Printer................42 5.6. Sample ID Management...................42 5.7. Password Protection..................42 5.7.1. Reset Password..................43 6. Settings........................44 6.1. Enter the Settings.....................44 6.2. Sub Menus....................... 44 6.2.1. Adjustment .................... 44 6.2.2. General....................44 6.2.3.
  • Page 5 1.2. What is a Carbon Fibre Moisture Analyser? The OHAUS Carbon Fibre Moisture Analyser can be used to determine the moisture content of practically any substance. The instrument operates on the thermo-gravimetric principle: At the start of the measurement, the Moisture Analyser determines the weight of the sample;...
  • Page 6 Your Moisture Analyser conforms with all common standards and directives. It supports standard procedures, work techniques and records as required by GLP (Good Laboratory Practices) and SOP (Standard Operating Procedure). We recommend the use of the OHAUS SF40A or OHAUS SF40A/BT Printer for optimal printing performances.
  • Page 7 Always operate and use your instrument only in accordance with the instructions contained in this manual. The instructions for setting up your new instrument must be strictly observed. If the instrument is not used according to these Operating Instructions, protection of the instrument may be impaired and OHAUS assumes no liability.
  • Page 8 Keep the operating instructions for further reference. CAUTION: Never make any modifications to the instrument and use only original spare parts and optional equipment from OHAUS. Protective Clothing It is advisable to wear protective clothing in the laboratory when working with the instrument.
  • Page 9 MB62 Instruction Manual EN-5 • Use only approved accessories and peripherals. • Disconnect the equipment from mains power before cleaning or servicing. • Service should only be performed by authorized personnel. WARNING: Never work in an environment subject to explosion hazards! The housing of the instrument is not gas tight.
  • Page 10 It must only be used for measuring the parameters described in these operating instructions. Any other type of use and operation beyond the limits of technical specifications, without written consent from OHAUS, is considered as not intended. This instrument complies with current industry standards and the recognized safety regulations;...
  • Page 11 • 1 x Quick Guide Remove packing material from the instrument. Check the instrument for transport damage. Immediately inform your OHAUS dealer if you have complaints or parts are missing. Store all parts of the packaging. This packaging guarantees the best possible protection for the transport of your instrument.
  • Page 12 EN-8 MB62 Instruction Manual 3.3. Assemble the Instrument 1. Lift the cover straight up and Install the Tray Pan (A) in the base of the heating chamber. 2. Install the Pan Holder (C) into position. Turn the Pan Holder until it engages. In the locked position, the arm of the Pan Holder points directly towards the Heating Unit (E).
  • Page 13 MB62 Instruction Manual EN-9 Attention: • Before connecting power, verify that the product or its AC adapter input voltage range and plug type are compatible with the local AC mains power supply. • The dryer unit is designed to operate at a specific line voltage (110V AC or 240V AC).
  • Page 14 EN-10 MB62 Instruction Manual 4. Structure and Functions 4.1. MB62 Product Structure Exterior Structure Structure Structure Top cover Screen Levelling feet Controls Sample pan handler with draft Levelling indicator shield USB Type B interface RS232 Interface Power supply connection and...
  • Page 15 MB62 Instruction Manual EN-11 4.2. MB62 Control Panel Button functions Functions during Functions in Functions in general the drying Menu Button process Short press Long press Short press Short press • Turn on the Moisture Turn off the Analyser. Return to the Moisture •...
  • Page 16 Confirm a selection. press Enter the menu to select a function: Long Sample ID, Result, press Login, Method, Setting. 4.3. MB62 Displays and Light Indication Screen Display Field Name Field Name Drying Program and Progress Instructional Messages Indicator Graphic Instruction Sample ID...
  • Page 17 MB62 Instruction Manual EN-13 Icon Definition Icon Definition Icon Definition Method Switch-off criterion Moisture content in Login percentage Sample ID dry content in percentage Drying Program Regain content in percentage Dry weight in gram Result Setting Temperature Stable weight Graphic Instruction...
  • Page 18 EN-14 MB62 Instruction Manual 4.4. Drying Program Segment Definition Standard Till weight Till Heating from 20 ℃ to the target temperature. loss is auto-off Auto 1 mg per Each segments represents an equal division of criterion is half of the heating temperature.
  • Page 19 MB62 Instruction Manual EN-15 Fast Till Stabling Cooling Heating from 20 ℃ to the weight Till at the down overshoot temperature. loss is auto-off oversh to the Auto 1 mg criterion Each segments represents an target per half equal division of the heating...
  • Page 20 EN-16 MB62 Instruction Manual Note: Standard overshoot temperature is 40% of the target temperature, maximum 230 ℃. Ramp Heating from 20 ℃ to the target Till weight Till auto-off temperature. loss is 1 mg Auto criterion is Each segments represents an equal per half of reached.
  • Page 21 MB62 Instruction Manual EN-17 Step Heating from 20 ℃ to Heating from 20 ℃ to the target temperature. the target temperature. Till Step Till Step Till Step 1 SOC is Each segments Each segments 1 SOC is 2 SOC is...
  • Page 22 EN-18 MB62 Instruction Manual 5. Operation This section provides guidances for users to work with their moisture analyser smoothly. The section covers various aspects of the operation, including performing a measurement, adjusting weight and temperature, and managing methods, results and sample ID.
  • Page 23 MB62 Instruction Manual EN-19 5.1. Make a Measurement OHAUS MB62 has defined a standard testing procedure to ensure the measurement is performed safely and accurately. The moisture analyser will instruct the user to follow the procedure: Tare with empty sample pan > Place sample > Start Testing...
  • Page 24 EN-20 MB62 Instruction Manual 5.1.1. Good Practices of Sample Preparation Characteristics, preparation and size of the sample are all important contributing factors in increasing speed and the quality of the measurement process. Sampling and the sample preparation have a great influence on the reproducibility of the measured results. It is also important that the sample being investigated is a representative part of the total amount of the sample under test.
  • Page 25 MB62 Instruction Manual EN-21 Liquid substances Liquid substances (e.g. dispersions) often tend to form drops on the sample pan owing to the surface tension of the liquid. This prevents a rapid drying process. The use of a commercial glass fibre filter shortens the drying time by a factor of 2 to 3. The glass fibre filter distributes the liquid sample over a wide area as a result of its absorbent action.
  • Page 26 Occasionally, following recording of the initial weight of the sample and before the actual drying, the test substance is subjected to further treatment. The Moisture Analyser from OHAUS offers this possibility in the "manual" operating mode. Such applications could include: •...
  • Page 27 MB62 Instruction Manual EN-23 The preceding table is based on the assumption that the sample is ideal, homogeneous and its moisture can always be separated completely and free from decomposition (e.g. moist sand). Deviations always comprise the uncertainty, which depends on the sample, and the repeatability of the instrument.
  • Page 28 EN-24 MB62 Instruction Manual 5.1.2. Steps to Make a Measurement Prerequisites • The correct Method is configured and loaded (refer to Create a new Method (on page Load a Method (on page 31).) Measurement Procedures 1. Place an empty sample pan on the pan holder, then close the cover and press 2.
  • Page 29 MB62 Instruction Manual EN-25 ◦ Read the final result from the screen. Rotate the Rotation knob to switch the display mode. ◦ Press to return to the Home screen. 4. Remove the sample pan by holding the Pan Handle. CAUTION: The sample and the sample pan may still be hot! Hold the Pan Handle to remove the sample pan.
  • Page 30 MB62 Instruction Manual 5.2. Method Management Method refers to the specific procedure and parameters used in a test for determining the moisture content of a sample. In MB62, users can creates up-to 20 methods. Related information Parameters (on page 26) User Operations (on page 30) 5.2.1.
  • Page 31 5.2.1.2. Drying temperature The drying temperature range of MB62 is 40°C - 200°C. Good practice of Selecting Drying Temperature The drying temperature exerts a controlling influence on the measurement time. It must be selected so that the sample neither decomposes nor changes its chemical structure.
  • Page 32 (cooling effect through endothermic vaporization). In certain cases, local heating and decomposition could still occur at the sample surface. 5.2.1.3. Switch-off criterion (SOC) Switch-off criterion defines when the instrument should end the drying. MB62 contains three types of Switch-off criterion:...
  • Page 33 MB62 Instruction Manual EN-29 Switch-off Definition criterion The switch-off criterion is based on a weight loss per unit of time. As soon as the mean weight loss is less than a preset value during a specified time, the instrument considers drying as complete and automatically discontinues the measurement process.
  • Page 34 EN-30 MB62 Instruction Manual 5.2.2. User Operations Users can perform the following Method-related actions: Actions Refer to Create a new method Create a new Method (on page 30) Select a Method Load a Method (on page 31) View the parameters of a...
  • Page 35 MB62 Instruction Manual EN-31 5.2.2.2. Load a Method 1. Rotate the Rotation knob. The Method ID will start to blink. 2. Navigate to the desired method > short press Rotation knob > short press the knob again to confirm selection. The selected method will be used in the measurements.
  • Page 36 EN-32 MB62 Instruction Manual 5.2.2.4. View the Ramp Time of a Ramp Method Users can define the Ramp time in a Ramp program. To view the ramp time parameter: Prerequisites: • The Ramp method is selected. Note: For how to select a method, please refer to Load a Method (on page 31).
  • Page 37 MB62 Instruction Manual EN-33 5.2.2.5. Edit an Existed Method 1. Rotate the Rotation knob. The Method ID will start to blink. 2. Navigate to the method to be edited, then short press the Rotation knob. 3. Navigate to Edit method, then short press the Rotation knob to enter method editing.
  • Page 38 EN-34 MB62 Instruction Manual 5.3. Weight and Temperature Adjustment 5.3.1. Weight Adjustment The Moisture Analyser can be adjusted with an external mass of 50 grams. Adjustment of the Moisture Analyser is not absolutely necessary for a correct moisture determination as the measurement is relative. The balance determines the weight of the sample before and after drying and the moisture is calculated on the basis of the ratio between wet and dry weights.
  • Page 39 After the weights are removed, the screen will display Adjustment in progress… > Adjustment done. Then press tare to return to the home screen. 5.3.1.2. View Weight Adjustment History MB62 stores the latest valid adjustment history. To navigate to the Weight Adjustment History: Long press the Rotation knob >...
  • Page 40 Press to return to the Home screen. 5.3.2.2. View Temperature Adjustment History MB62 stores the latest valid temperature history. To navigate to the Temperature Adjustment History: Long press the Rotation knob > > Adjustment > History-temp adjust. It provides the below temperature adjustment information: •...
  • Page 41 MB62 Instruction Manual EN-37 5.4. Result Management In MB62, the test results will be displayed when a test is completed. The test results will also be auto-saved into to the memory for future reference. MB62 can stores up-to 100 test results.
  • Page 42 Method (on page 31) 5.4.3. Result Auto-Delete MB62 stores up-to 100 test methods. Users can configure to auto delete the earliest record when the storage is full. Menu Navigation: Setting > System and Data > Result Auto Delete > On...
  • Page 43 MB62 Instruction Manual EN-39 Note: To enable auto delete, please refer to Result Auto-Delete (on page 38). To delete a method manually: 1. Long press the Rotation knob to enter the menu. 2. Rotate the knob and navigate to Enter result.
  • Page 44 For more set-up information, please refer to Print settings (on page 46) 5.5.3. Print Contents Default Print Contents MB62 has preset a group of default print contents, allowing the user to directly print essential test and adjustment data without configuration beforehand.
  • Page 45 MB62 Instruction Manual EN-41 Default print contents includes: –––––-Moisture Analyse–––––- Type • Type (Moisture Analyser Type) MB92 • SNR B94xxxxxxxx • SW (Software version) 0.95.4 • Method Name Method Name • Drying program Test Drying program Standard ◦ Drying temperature ◦...
  • Page 46 5.6. Sample ID Management Users can select the Sample ID of the tests. MB62 enables user to select an ID number from The Sample ID is optional to be displayed in the print content.
  • Page 47 MB62 Instruction Manual EN-43 Access ged In ged Off ✓ ✓ Load a method ✓ Edit a method ✓ Delete method ✓ Import / Export methods ✓ ✓ Review a result ✓ Result Delete result ✓ Export results ✓ Adjustment ✓...
  • Page 48 EN-44 MB62 Instruction Manual 6. Settings 6.1. Enter the Settings 1. Long press the Rotation knob to enter the Menu. 2. Rotate to Setting , and then short press the knob to enter. 6.2. Sub Menus 6.2.1. Adjustment Sub Menu...
  • Page 49 MB62 Instruction Manual EN-45 Sub Menu Description Automatically turn off the moisture analyser in a selected time. • 30 mins Auto off • 1 hour • 2 hours • Off (default) - Keep the backlight on Enable or disable the Status light. For status light definition,...
  • Page 50 EN-46 MB62 Instruction Manual Submenu Description The Transmission menu is to set the communication protocol that specify the format for transmitting data over RS232. It needs to be set the same on both the transmitting and receiving Transmission devices. The Transmission options are 7E1, 7E2, 7N1, 7N2, 7O1, 7O2,...
  • Page 51 MB62 Instruction Manual EN-47 Submenu Description The A.print intmd resultIntermediate results print interval menu is to enable or disable to intermediate print during the drying. A.print intmd resultIntermediate results print interval options are: A.print intmd result • Off (default) : Disable auto print during drying •...
  • Page 52 EN-48 MB62 Instruction Manual 6.2.3.2. USB The USB section introduces the menu of Print settings and Print content settings. Print settings Submenu Description The A.print weight adjustAuto print weight adjustment result refers to auto print weight adjustment results. When selected to On, the weight adjustment result will be printed automatically when the process is completed.
  • Page 53 MB62 Instruction Manual EN-49 Print content The Print content menu is to configure the optional print contents • Select On to include the content in the print output. • Select Off to exclude the content in the print output. Optional printable contents include: •...
  • Page 54 Time When the last value is confirmed, it will return to the System and Data menu. MB62 stores up-to 100 test results. Users can select auto deleting the earliest record when the storage is full. Result auto delete •...
  • Page 55 MB62 Instruction Manual EN-51 6.2.7. Reset Sub Menu Description 1. Select Yes to reset all settings the from the General Reset General menu. 2. Select No to return to the previous submenu. 1. Select Yes to reset all settings from the GLP/GMP Reset GLP/GMP menu.
  • Page 56 EN-52 MB62 Instruction Manual 7. Accessory Material Accessory Number 30954234 Pan Handler, MB32 MB62 MB92 30954235 In-Use Cover, MB32 MB62 11113857 Temperature Calibration Kit 30284477 Scoop 30585411 Aluminum Pan (50) 80850087 Glass Fibre Pads (200) 80252477 Cage, Sample 80252478 Reusable Pan, Set (3), 7mm...
  • Page 57 MB62 Instruction Manual EN-53 8. Maintenance 8.1. Cleaning WARNING: Electric Shock Hazard. Disconnect the equipment from the power supply before cleaning. Make sure that no liquid enters the interior of the instrument. Attention: Do not use solvents, harsh chemicals, ammonia or abrasive cleaning agents.
  • Page 58 Not fixable by user. Err 10.7 20 ℃ over the target Please contact OHAUS. temperature. 8.4. Technical Support Information For technical issues, please speak to an Authorized OHAUS Service Agent. Please visit our website www.ohaus.com to find the OHAUS office nearest you.
  • Page 59 MB62 Instruction Manual EN-55 9. Technical Data Conditions The technical data is valid under the following conditions: Indoor Use Only Altitude: Up to 2000m Operating 5 °C to 40 °C. temperature: Maximum relative humidity 80% for temperatures up to 31 °C Humidity decreasing linearly to 50% relative humidity at 40°C.
  • Page 60 EN-56 MB62 Instruction Manual Model MB62 Pan size (mm) Interface RS232, USB device Adjustable Feet and Level Dimensions (WxHxD) (cm) 21x18x30 Net wt. (kg) Shipping wt. (kg)
  • Page 61 MB62 Instruction Manual EN-57 10. User Commands OHAUS Commands Comm Action Same function as <<On/Off>> key Same function as <<On/Off>> key Print stable weight. Same function as <<Print>> key Print stable weight (in different format as P). Print the current weight.
  • Page 62 This product complies with the EU Directive 2012/19/EU (WEEE). Please dispose this product in accordance with local regulations at the collecting point specified for electrical and electronic equipment. For disposal instructions in Europe, refer to www.ohaus.com/weee. EN 61326-1 CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-010...
  • Page 63 MB62 Instruction Manual EN-59 Party issuing Supplier’s Declaration of Conformity: OHAUS Instruments (Changzhou) Co., Ltd. C Block, 6 Zhengqiang Road, Xinbei District, Changzhou Jiangsu 213022, China Phone: +86 519 85287270 Responsible Party – U.S. Contact Information: OHAUS Corporation 8 Campus Drive, Suite 105...
  • Page 64 OHAUS. In lieu of a properly returned warranty registration card, the warranty period shall begin on the date of shipment to the authorized dealer.
  • Page 66 OHAUS Corporation 8 Campus Drive Suite 105 Parsippany, NJ 07054 USA Tél.: +1 (973) 377-9000 Fax: +1 (973) 944-7177 With offices worldwide. www.ohaus.com *30980439* P/N 30980439 A © 2024 OHAUS Corporation, all rights reserved.
