TLE493D-P3XX-MS2GO
3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI)
User Manual
About this document
Scope and purpose
This document provides an introduction to the 3D Magnetic Sensor 2 Go kit and should enable the reader to
efficiently carry out own evaluations with the 3D magnetic sensor TLE493D-P3B6 and TLE493D-P3I8.
Intended audience
This document is aimed at everyone who wants to work with the 3D Magnetic Sensor 2 Go evaluation kit.
User Manual
Please read the sections "Important notice" and "Warnings" at the end of this document
Revision 1.0
www.infineon.com
2024-12-04
Advertisement
Related Manuals for Infineon TLE493D-P3-MS2GO Series
Summary of Contents for Infineon TLE493D-P3-MS2GO Series
- Page 1 Intended audience This document is aimed at everyone who wants to work with the 3D Magnetic Sensor 2 Go evaluation kit. User Manual Please read the sections “Important notice” and “Warnings” at the end of this document Revision 1.0 www.infineon.com 2024-12-04...
- Page 2 TLE493D-P3XX-MS2GO 3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI) Table of contents Table of contents About this document ........................1 Table of contents ..........................2 Introduction .......................... 3 Hardware overview ..........................3 Software..............................3 Arduino compatible code........................4 Hardware extensions ..........................

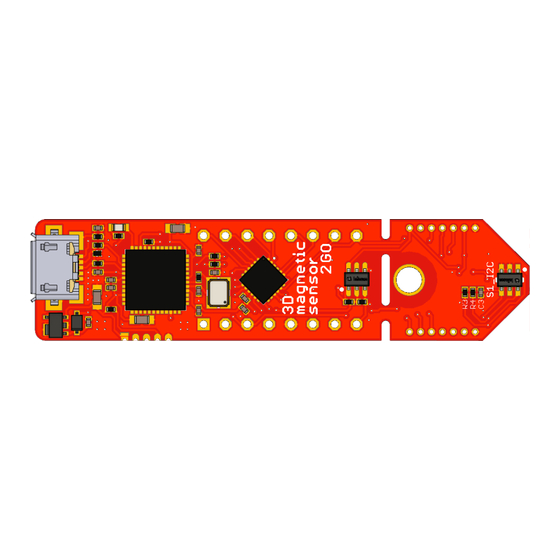

- Page 3 EvalBoard side and a USB connection adequate for the PC side. Figure 1 3D Magnetic Sensor 2 Go EvalBoard Software The required software to run the kit can be found at the Infineon web site. For further information refer to the chapter 3. The software package contains: •...
- Page 4 IDE. Thus, the 3D evaluation board is also compatible with Arduino. Instead of the firmware that is flashed by the GUI for fast evaluation, the user can also program the microcontroller directly. Example code for this purpose is available on the following github page: https://github.com/Infineon/xensiv- magnetic-sensors-sw-examples/tree/main/3D-Sensors/Arduino/Raw_readout Hardware extensions Additionally, to the provided standalone magnet there are several dedicated extensions available that can be mounted to the 3D Magnetic Sensor 2 Go kit.
- Page 5 The evaluation board (EvalBoard) is a ready-to-use printed circuit board (PCB) which contains: • The 3D magnetic sensor TLE493D P3B6 and TLE493D P3I8. For the availability of 3D Magnetic Sensor 2 Go kits with different sensor variants check the Infineon web page: https://www.infineon.com/cms/en/product/sensor/magnetic-sensors/magnetic-position-sensors/3d- magnetics/?tab=~%27all#!products •...
- Page 6 TLE493D-P3XX-MS2GO 3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI) EvalBoard description Figure 3 Mechanical dimensions of the EvalBoard Optional external power supply The 3D Magnetic Sensor 2 Go EvalBoard is supplied via the USB cable. It is also possible to provide an external power supply.
- Page 7 TLE493D-P3XX-MS2GO 3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI) EvalBoard description Figure 4 EvalBoard pin header connectors The 3D Hall sensor pins can be accessed via the pin headers as shown in Table 1. Table 1 Pin header description for the TLE493D-P3B6 3D magnetic sensor X3 Header TLE493D-P3B6 Pin name...
- Page 8 TLE493D-P3XX-MS2GO 3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI) EvalBoard description Figure 5 EvalBoard schematic: 3D magnetic sensors; left: SPI; center: I²C; right: header Figure 6 EvalBoard schematic: the voltage regulator (for the power supply) and the switches enabling the power supply to the sensors User Manual Revision 1.0...
- Page 9 TLE493D-P3XX-MS2GO 3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI) EvalBoard description Figure 7 EvalBoard schematic: the XMC1100 microcontroller and pin headers Figure 8 Sketch of the debug connection User Manual Revision 1.0 2024-12-04...
- Page 10 TLE493D-P3XX-MS2GO 3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI) EvalBoard description Figure 9 EvalBoard schematic: the XMC4200 microcontroller and micro-USB connector User Manual Revision 1.0 2024-12-04...
- Page 11 The software installation for the "3D Magnetic Sensor 2 Go" is designed to be as simple and automated as possible. An installation programme guides you through all the necessary steps. This is available under the following link: https://softwaretools.infineon.com/tools/com.ifx.tb.tool.tlx493d Figure 10 https://softwaretools.infineon.com/tools/com.ifx.tb.tool.tlx493d Download the installation file and execute this file.
- Page 12 3D magnetic sensor evaluation 3D magnetic sensor evaluation This chapter describes how the GUI can be used to make first evaluations with Infineon's 3D magnetic sensors. Getting started Once the software is installed, the following steps are necessary to do the first magnetic measurements.
- Page 13 TLE493D-P3XX-MS2GO 3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI) 3D magnetic sensor evaluation the temperature if enabled. There is a logging option at the bottom, with which you can save data and analyse the recordings afterwards. On the left side, a lot of different settings can be adjusted, depending on the connected board / activated sensor, like the active sensor.
- Page 14 Finally, the 3D Magnetic Sensor 2 Go kit can be used in combination with the Arduino IDE. A library is provided to enable a fast evaluation in the individual application. More details and the download can be found at the link below: https://github.com/Infineon/xensiv-magnetic-sensors-sw-examples/tree/main/3D- Sensors/Arduino/Raw_readout User Manual Revision 1.0...
- Page 15 TLE493D-P3XX-MS2GO 3D 2go kit featuring TLE493D-P3B6 A0 (I2C) and TLE493D-P3I8 (SPI) Revision history Revision history Document Date Description of changes revision 2024-12-04 Initial version User Manual Revision 1.0 2024-12-04...
- Page 16 Edition 2024-12-04 event be regarded as a guarantee of conditions or dangerous substances. For information on the types characteristics (“Beschaffenheitsgarantie”). in question please contact your nearest Infineon Published by Technologies office. With respect to any examples, hints or any typical...
