Advantech MIC-75M20-00 Startup Manual

Advantech MIC-75M20-00 Startup Manual

Pcie expansion module for mic-7 series embedded systems

Advertisement

Quick Links

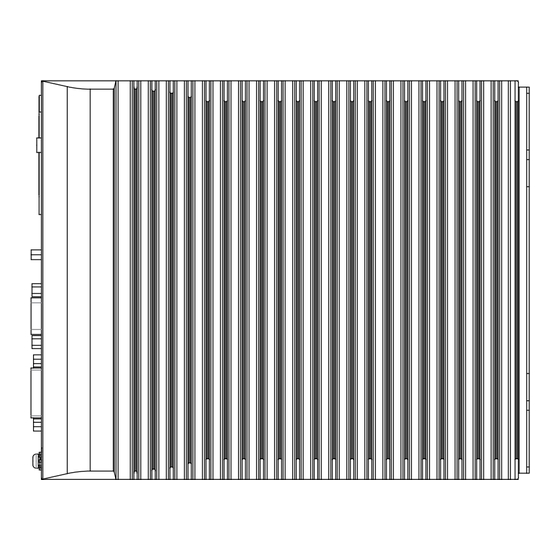

MIC-75M20-00
PCIe Expansion Module for MIC-7 Series Embedded
Systems
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. MIC-75M20-00 i-Module x1
2. MIC-75M20-00 Startup Manual x1 P/N: 20015M2021
3. Card clamp pad x 2
4. Wallmount bracket (Left) x1
5. Wallmount bracket (Right) x1
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe.)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
https://www.advantech.com/en/support
This manual is for the MIC-75M20-00 Rev. A1.
Part No. 20015M2021
Printed in China
P/N: MIC-75M20-00C1
P/N: 1990024989T010
P/N: 1960070545T001
P/N: 1960070543T00A
1st Edition
October 2024
Specifications
PCIe Slots
• One PCIe x16 socket
Note 1:
PCIe x16 supports 75W power consumption.
• One PCIe x4 socket
Note 1:
PCIe x4 supports 15W power consumption.
Note 2:
MIC-75M20 does not support MIC-7300 series
systems.
• One 12V extra power
Note 1:
12V extra power connector supports 25~85W.
Environment
• Operating Temperature:
-20 ~ 60°C with 0.7 m/sec air flow with 1 x Industrial SSD,
without PC expansion boards
0 ~ 45°C with 0.7 m/sec air flow with 1 x 2.5" HDD,
without PC expansion boards
• Storage Temperature: - 40 ~ 85°C (-40 ~185°F)
• Relative Humidity: 95% @ 40°C (non-condensing)
Mechanical
• i-Module Dimensions (H x W x D): 50 x 192 x 230 mm
• With MIC-7 series (H x W x D): 127 x 192 x 230 mm
Note:
We suggest adding an optional system fan (P/N:
98R1752000E) if power consumption of your
add-on card is more than 45W (for better thermal
management).
MIC-75M20-00 Startup Manual 1
