Stirling PA09W1 Instruction Manual

0.9 kw portable air conditioner
Hide thumbs

Advertisement

Quick Links

Download this manual

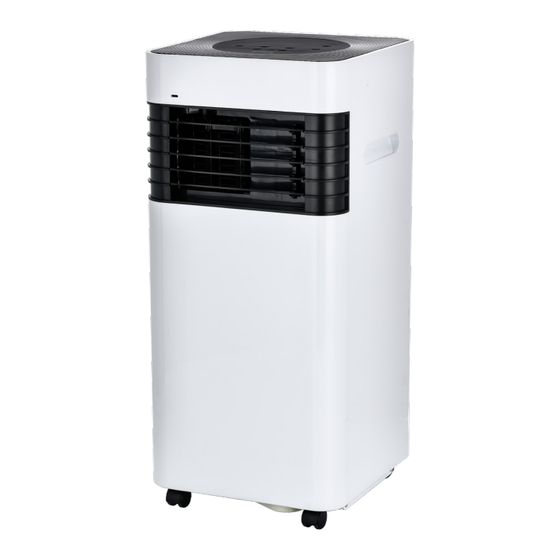

0.9 kW Portable Air Conditioner
Model Number PA09W1
INSTRUCTION MANUAL
AFTER SALES SUPPORT
tempo.org/support
1300 112 534
MODEL: PA09W1 PRODUCT CODE: 717412 11/2024
AUS

Advertisement

loading
Need help?

Need help?

Do you have a question about the PA09W1 and is the answer not in the manual?

Questions and answers

Related Manuals for Stirling PA09W1

Summary of Contents for Stirling PA09W1

  • Page 1 0.9 kW Portable Air Conditioner Model Number PA09W1 INSTRUCTION MANUAL AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 2 Welcome Congratulations on choosing to buy a STIRLING product. ® ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.
  • Page 3 12 Getting Started 13 Product Overview 17 Installation 21 Instructions 27 FAQs & Troubleshooting Guide 29 Other Useful Information 35 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 4 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 5 • Switching on/off: Do not use the mains plug to start and stop the unit; always use the POWER button to start and stop the unit. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 6 • Unattended: Do not leave the appliance unattended when in use. • Attachments: The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 7 • The air extraction opening from the room shall be as low as practicable. The air extraction openings shall be located in a sufficient distance from the air intake openings to prevent re-circulation to the space. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 8 Do not tilt the unit, always keep it upright during transport, installation and use. • Misuse: We accept no responsibility for any eventual injuries or damages caused by improper installation, faulty use or failure to follow the instructions. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 9 Fig. 1 60 cm 60 cm • Permissible excessive operating pressure: Discharge Side Pressure: 2.5 MPa, Suction Side Pressure: 1.2 MPa • Max. allowable pressure: 4.2 MPa AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 10 If the appliance requires maintenance or service, contact our after sales support centre. • WARNING: Ducts connected to an appliance shall not contain a potential ignition source. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 11 Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 12 Electric shock hazard! Before installation, cleaning or servicing, ensure the unit is switched off and disconnected from the power outlet to prevent possible injury. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 13 Transport handle Evaporator air intake Connector for air exhaust duct Air exhaust duct Window exhaust adaptor 10 Drainage outlet 11 Castor wheels (4) Rear view (Fig. 4) AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 14 NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 15 Sleep mode indicator Low speed indicator High speed indicator Power button Sleep button Timer button Mode button Speed button Timer / temperature down button Timer / temperature up button AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 16 Temperature/Timer down button Sleep button Operation mode button NOTE: Do not drop the remote control. Do not place the remote control in a location exposed to direct sunlight. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 17 Do not block the air intake with a protective grid or any other object. • Attach the air exhaust duct connector and the window exhaust adaptor (Fig. 9) on either side of the hose. Fig. 8 Fig. 9 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 18 • Attach the two sides of the window installation plate by sliding A into B, ensuring that they line up properly (Fig. 11). Fig. 10 Fig. 11 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 19 A. The length can be locked by re-tightening the bolt (clockwise). • Slot the exhaust air duct into the window installation plate (Fig. 13). Fig. 12 Fig. 13 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 20 • Slide the other end of the exhaust hose onto the exhaust grate at the back of the air conditioner unit (Fig. 16). • Congratulations! You have finished installing the unit (Fig. 17). Fig. 16 Fig. 17 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 21 Moving the appliance: • Take care when moving the appliance as condensation water may spill out. Ensure the drip tray is empty before moving it. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 22 • The set temperature will then increase by 1°C after one hour, and 2°C after two hours. After six hours the unit will switch off automatically. Please note, the sleep mode indicator will illuminate on the display. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 23 1 and 24 hours. The time will appear on the display. - If no other buttons are pressed, the timer will automatically confirm. - The appliance will automatically turn off once the set time has elapsed. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 24 (see page 23). NOTE: The remote control has a range of approx. 5 m, provided that there are no obstacles blocking the signal. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 25 • Alternatively, attach a water drain hose (not supplied) to the drainage outlet (Fig. 19) and lead the hose to the outside or into a tub or drain for water drainage. Fig. 19 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 26 If the air conditioner is operating in cooling or dry mode with a door or NOTE: window open when relative humidity is above 80%, dew may drip from the outlet. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 27 Lower or raise the set Set temperature reached. temperature. The unit stops Set another timer, or automatically. Timer shut down. switch back on for manual shutdown mode. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 28 The evaporator oil pipe sensor E3 Code Call for service. fails or is damaged. Drain the water manually E4 Code Water drip tray is full. out of the drip tray. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 29 • Clean the air filter with a mild detergent in lukewarm water (max. 40°C). Rinse thoroughly. • Let all parts dry completely in the shade before reinstallation. Fig. 20 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 30 • Used batteries should not be disposed of in household waste. Dispose of them in accordance with statutory regulations. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 31 To purchase a part, contact us at tempo.org/support or on 1300 112 534. Adjustable window slider Air filter Flexible air exhaust hose Remote control Window connector AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 32 The RCM Mark (Regulatory Compliance Mark) indicates that the product complies with the relevant guidelines of the ACMA as well as corresponding government requirements for the safety of electrical devices. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 33 Contact your local authorities for advice on recycling facilities in your area. Or find recycling scheme services listed on Planet Ark’s website at www.recyclingnearyou.com.au, or call Planet Ark on 1300 733 712. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 34 This page has been left blank intentionally. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 35 Tempo (Aust) Pty Ltd ABN 70 106 100 252 PO BOX 6097, North Sydney 2059, NSW Australia Web support: tempo.org/support Tempo Help Desk: 1300 112 534 (Aust) (Operating Hours: Mon–Sat 09:00am to 06:00pm AEST) AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
  • Page 36 Original release 2024 V1.1 9 July 2024 Minor updates pages 3, 10, 15, 16 & 32 V1.2 31 July 2024 Minor updates pages 13, 16, 22, 23, 24 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: PA09W1 PRODUCT CODE: 717412 11/2024...
