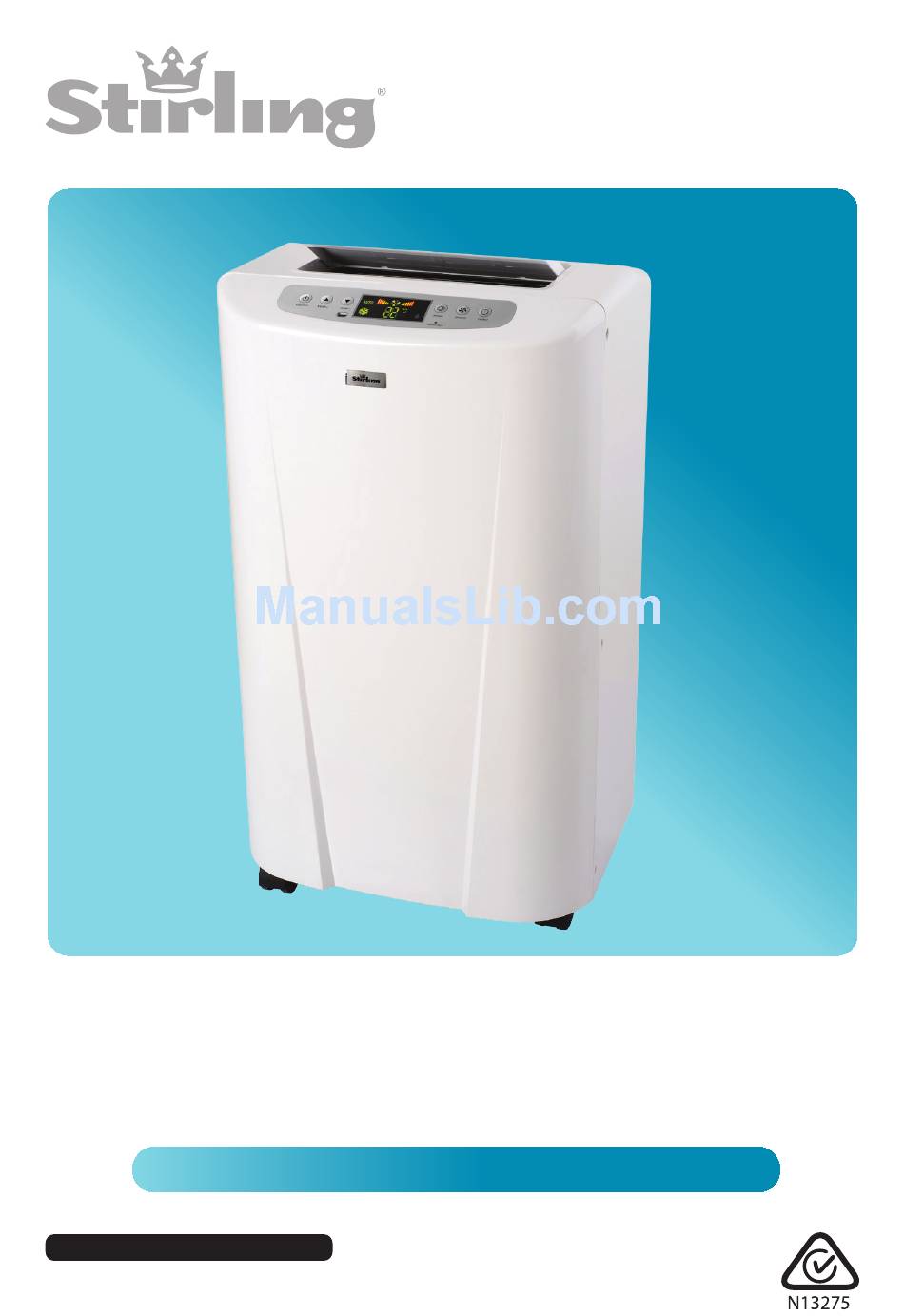

- Page 1 Portable Air Conditioner Model Number A006C-12C INSTRUCTION MANUAL After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
-
Page 2: Table Of Contents
Contents Warranty Details Welcome General Safety Instructions Product Overview Getting Started Instructions Other Useful Information After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au... -
Page 3: Warranty Details
Portable Air Conditioner Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 4: Welcome
Welcome Congratulations on choosing to buy a STIRLING ® product. All products brought to you by STIRLING ® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. -
Page 5: General Safety Instructions
General Safety Instructions Read this manual thoroughly before first use, even if you are familiar with this type of product. We have provided many important safety statements in this manual concerning the use of this appliance. Always read and observe all safety statements. - Page 6 General Safety Instructions (Cont.) Installation • Proper installation: Install the appliance according to the instructions in this manual. Improper installation may result in the risk of fire, electric shock and/or injury. We assume no responsibility for any eventual damages caused by improper installation or faulty use. • Upright position: Place the unit on a flat surface to reduce the risk of it tipping over.
- Page 7 General Safety Instructions (Cont.) • Children: Young children should be supervised to ensure they do not play with the appliance. Close supervision is necessary when any appliance is used by or near children. • Startup settings: Set the unit to maximum cooling and high speed ventilation for the initial startup, then adjust the unit down to a more comfortable setting as required.
-
Page 8: Product Overview

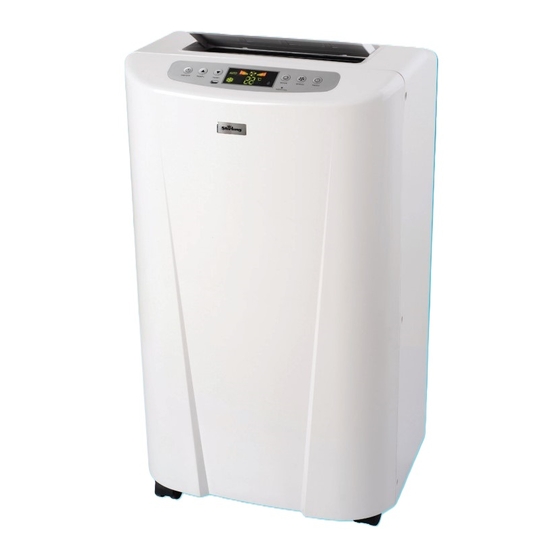

Product Overview Parts list Front view Cold air outlet LED screen Control panel Rear cover Front cover Castor wheels Air inlet grilles Exhaust outlet grille Power cord 10 Condensation water drainage outlet with stopper Side view Rear view Adjustable window slider 67.5cm to 123cm Rectangular hose Flexible exhaust Oval hose... - Page 9 Product Overview (Cont.) Control panel 1 Power on/off button: Press to turn the unit on or off. 2 Temperature + /- buttons: Press to set the desired room temperature. With each press of the [ + ] or [ - ] button, the temperature setting will be increased or decreased by 1°C. (These buttons can also be used to set the timer, in hours.) 3 Signal receiver: Aim the remote control at this sensor.
- Page 10 Product Overview (Cont.) Remote control 1 Power on/off button: Press to turn the unit on or off. 2 Temperature + button: Press to set the desired room temperature. With each press of the button, the temperature setting will be increased by 1°C. (This button can also be used to set the timer, in hours.) 3 Speed button: Press to choose high, middle or low fan speed.
-
Page 11: Getting Started
Getting Started Unpacking • Unpack the appliance but keep the packaging materials for storing the appliance when it is not in use. Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are kept out of their reach. • Unwind the cord fully and inspect it for damage. - Page 12 Getting Started (Cont.) Installing the air exhaust duct The portable air conditioner window kit comes with the following parts: Rectangular hose Flexible exhaust Oval hose Adjustable window slider connector hose connector 67.5cm to 123cm Installing the exhaust hose Fig. 3 • Fit the rectangular exhaust hose connector to the exhaust outlet grille at the back of the air conditioner (Fig.
- Page 13 Getting Started (Cont.) Horizontally opening window (Fig. 6) • Adjust the window slider to the length of a horizontally opening window. • Fit the slider to the bottom of the window. • Fit the oval exhaust hose connector through the opening to the outside. Fig.6 Vertically opening window (Fig.
-
Page 14: Instructions
Instructions • Before switching the unit on for the first time, make sure you have properly installed the exhaust hose (see pages 12-13) and inserted the battery into the remote control (see page 10). • Plug the portable air conditioner into a properly earthed 220~240V AC 50Hz mains socket and switch on power to the outlet. -
Page 15: Auto Mode
Instructions (Cont.) Auto mode In this mode, the air conditioner will automatically decide on the most suitable mode: cooling, dehumidifying or fan, as illustrated in the table below: Room Temperature Mode Set Temperature 23°C 23°C — 26°C Dehumidify 23°C 26°C Cooling 25°C Timer operation The air conditioner has a 24 hour timer you can set to start the unit at a later time, or to switch off the unit automatically. -
Page 16: Other Useful Information
Other Useful Information Care and cleaning Electric shock hazard! Before cleaning and servicing, ensure the unit is switched off and disconnected from the power outlet to prevent possible injury. If the housing surface needs cleaning, wipe it with a damp cloth, then dry with soft, dry cloth. - Page 17 Other Useful Information (Cont.) Before storage Fig.10 At the end of the summer season, follow the simple steps below before disconnecting and storing the portable air conditioner. • Place a pan under the water drainage outlet at the back and remove the stopper (Fig. 10). Any condensation water that has accumulated will drain into the pan.
- Page 18 Other Useful Information (Cont.) Troubleshooting guide Problem Possible Causes Solution Water full indicator lamp Drain the condensation water Unit does not blinks, indicating that the drip manually (see page 17). start when tray is full. pressing on/ Room temperature is lower off button.
- Page 19 Other Useful Information (Cont.) Technical specifications Cooling capacity: 3.5kW / 12000 BTU 18–28m 2 Cooling area: Timer: 24 hour timer Mode of operation: Control panel with LED screen and remote control Fan speeds: 3 (low/medium/high) Cooling modes: 3 (cooling/auto/dehumidifying) Refrigerant: R410A Noise level: 52dB(A) Moisture removal:...
- Page 20 After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
