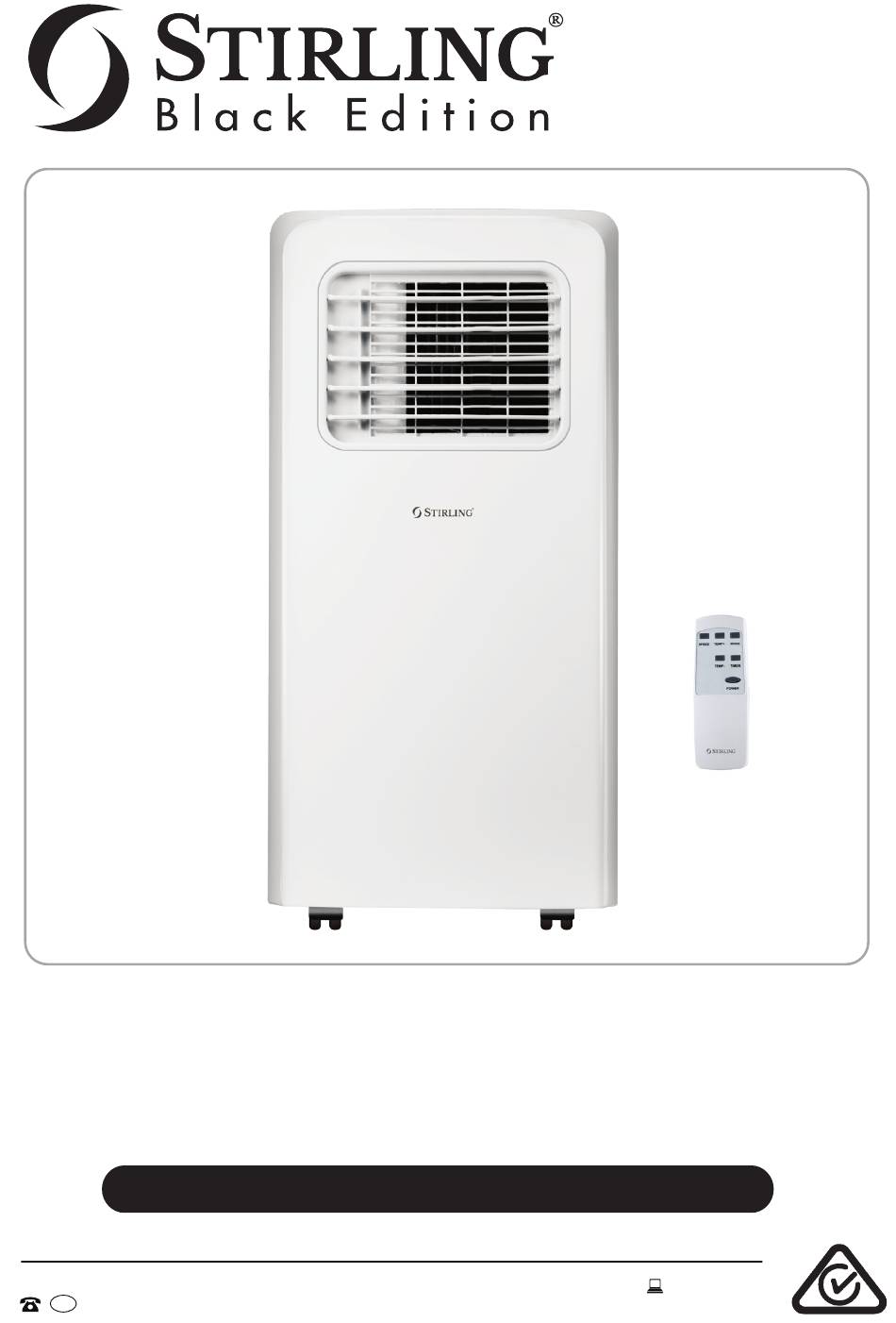

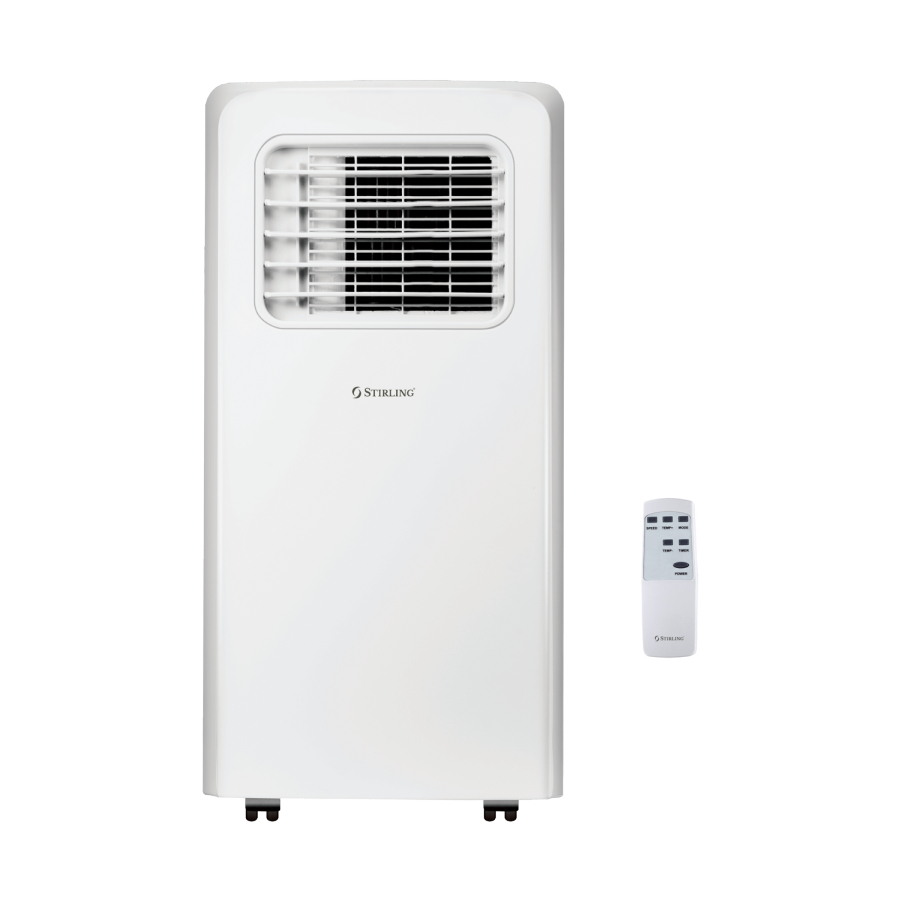

Wi-Fi Portable Air Conditioner
(1.9kW Cooling)
Model Number PA19W
INSTRUCTION MANUAL
AFTER SALES SUPPORT
info@tempo.org
AUS
1300 886 649
MODEL: PA19W PRODUCT CODE: 703227 11/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA19W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stirling PA19W

Summary of Contents for Stirling PA19W

  • Page 1 Wi-Fi Portable Air Conditioner (1.9kW Cooling) Model Number PA19W INSTRUCTION MANUAL AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 2 Welcome Congratulations on choosing to buy a STIRLING product. ® All products brought to you by STIRLING are manufactured to the highest ® standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.

  • Page 3: Table Of Contents

    12 Product Overview 15 Installation 17 Instructions 20 Wi-Fi Control 26 FAQs & Troubleshooting Guide 27 Other Useful Information 31 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 4: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. YEAR WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 5: General Safety Instructions

    Grip by the plug, do not pull by the cord when disconnecting. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 6 • Start-up settings: Set the unit to maximum cooling and high speed ventilation for the initial startup, then adjust the unit down to a more comfortable setting as required. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 7 • The location: When deciding on an installation place, keep in mind that the area must be flat, the air outlets must not be covered up, and there must be a properly earthed 220~240V~ 50Hz power outlet nearby. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 8 Fig. 2 Fig. 1 • Pressure specifications: Permissible excessive operating pressure: discharge 2.6MPa, suction 1.0MPa. Maximum allowable pressure: discharge 3.2MPa, suction 1.2MPa. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 9: R290-Specific Safety Advice

    • The service technician must strictly comply with: – all safety instructions in the manual provided with the appliance – all relevant provisions of gas-related local laws and regulations. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 10 Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 11: Getting Started

    Electric shock hazard! Before installation, cleaning or servicing, ensure the unit is switched off and disconnected from the power outlet to prevent possible injury. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 12: Product Overview

    Power cord and plug connection (cord and plug not shown here) Exhaust air outlet for flexible hose connection Air intake grille Drainage outlet with plug Front & left side view (Fig. 3) Rear view (Fig. 4) AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 13 NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 14 Temperature down button Timer button Power button NOTE: Do not drop the remote control. Do not place the remote control in a location exposed to direct sunlight. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 15: Installation

    IMPORTANT! For best performance, keep the length of the air exhaust hose to the minimum length necessary during operation. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 16 • Fit the exhaust hose connector (window end) through the opening to the outside (Fig. 13). Fig. 12 Fig. 13 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 17: Instructions

    • Moving the appliance: Take care when moving the appliance as conden- sation water may spill out. Ensure the drip tray is empty before moving it. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 18 • Use the same procedure as above, but while the unit is switched on, to set an auto-off time. The selected number of hours will be shown on the display. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 19 • Alternatively, attach a water drain hose (not supplied) to the drainage outlet (Fig. 15) and lead the hose to the outside or into a tub or drain for water drainage. Fig. 15 Drainage outlet AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 20: Wi-Fi Control

    Wi-Fi network. • On your mobile device, tap on the [ STIRLING ] app (Fig. WF1). It will open and take you to the Login Page (Fig. WF2). Fig. WF1 Fig.
  • Page 21 You will now enter Fig. WF6 the main device list (Fig. WF6). Tap [ + ] or [ Add Device ] and add your device from the product list (Fig. WF7). AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 22 Wi-Fi name and password, then tap [ Confirm ] (WF10). The message “Connecting” will appear on the screen (Fig. WF11). Fig. WF9 Fig. WF10 Fig. WF11 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 23 Tap [ Done ] and you will return to the Device list page and your device will be shown. • Click on the device name and it will take you to the device’s main control page (Fig. WF13). Fig. WF12 Fig. WF13 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 24 • Open your Google Home app. (Before you can link your STIRLING App to your Google Home app you will have to have a Google Home account set up.) From the home screen of the Google Home app, tap [ Add ].
  • Page 25 Also ensure that your router is connected to the conditioner. mains supply and that the router and your mobile phone are properly connected to your Wi-Fi network. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 26: Faqs & Troubleshooting Guide

    Drain the water manually E2 Code Water drip tray is full. out of the drip tray. Evaporator temperature Call for service to replace E3 Code sensor failed. the part. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 27: Other Useful Information

    • Clean the air filter with a mild detergent in lukewarm water (max. 40°C). Rinse thoroughly. • Let all parts dry completely in the shade before reinstallation. Fig. 16 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 28 In the event of contact with the acid, rinse the affected areas immediately with plenty of clean water and contact a doctor at once. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 29 Air filter Compressor capacitor Condenser fan Control panel Display PCB Evaporator fan Exhaust hose Motor capacitor Power PCB Remote control Temperature sensor Water stopper Wi-Fi module Window connector AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 30 The RCM Mark (Regulatory Compliance Mark) indicates that the product complies with the relevant guidelines of the ACMA as well as corresponding government requirements for the safety of electrical devices. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...

  • Page 31: Repair And Refurbished Goods Or Parts Notice

    Telephone: 1300 886 649 (Aust) - Fax: (02) 9975 2688 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Sat 09:00am to 06:00pm AEST) Email: info@tempo.org YEAR WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
  • Page 32 Version No Issue Date Description V1.0 02 July 2020 Original release V1.1 16 July 2020 Minor update, page 30 V1.2 27 July 2020 Minor update, page 29 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: PA19W PRODUCT CODE: 703227 11/2020...
