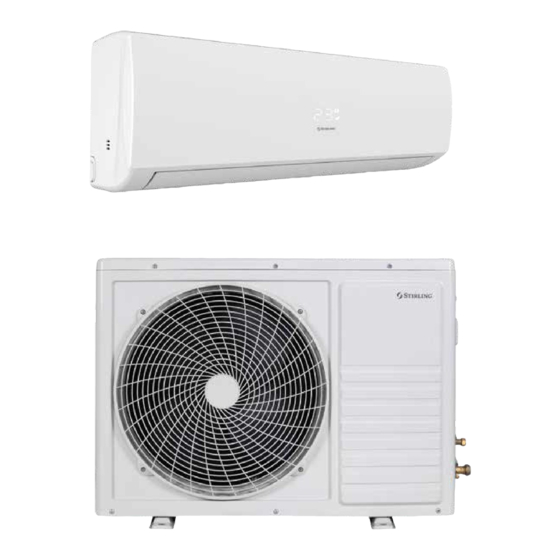

- Page 1 STR-9R32 Outdoor Unit Picture Reverse Cycle Inverter Split System Air Conditioner Model Number STR-9R32 INSTRUCTION MANUAL AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 2 We hope you will enjoy using your purchase for many years to come. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
-
Page 3: Table Of Contents
Contents Welcome Warranty Details General Safety Instructions Product Overview Getting Started Instructions FAQs and Troubleshooting Guide Other Useful Information Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... -
Page 4: Warranty Details
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... -
Page 5: General Safety Instructions
• Power cord: Do not bend, tug or compress the power cord as this could damage it. A damaged power cord can cause electric shock or fire. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... - Page 6 Take particular care in rooms where there are children, or old or sick people. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 7 • Liability: We assume no liability for any eventual damages to property or injury to persons caused by misuse of the product or noncompliance with these instructions. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 8 • The service technician must strictly comply with: – All instructions in the installation manual provided with the appliance – All relevant provisions of gas-related local laws and regulations. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 9 Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
-
Page 10: Product Overview
All images in this 9 Airflow direction flaps manual are for reference purposes only. Parts 10 Remote control are not necessarily pictured to scale. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... - Page 11 STR-9R32 Outdoor Unit Picture Fig. 2 NOTE: The diagrams throughout this manual are for illustrative purposes only and may vary slightly from the appearance of the unit purchased. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 12 20 Pipe insulation (open tube) Quick start guide 21 Binding tape Warranty certificate 22 Rubber mats for outdoor unit (x4) 23 Screws & plugs (x6) 24 Drainage mouth AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
-
Page 13: Getting Started
You can set the air conditioner to cool, heat or dehumidify the air, or let the unit adjust the room temperature automatically to ensure comfortable conditions all year round. These modes are described in detail in the “Instructions” section of this manual. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... - Page 14 However, ceiling sweep fans will help move warm/cool air back down to floor level in rooms with very high ceilings. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 15 HEAT without the batteries in place. Then insert the batteries, and the unit will be programmed to function in all available modes. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
-
Page 16: Instructions
Illuminates when the Sleep function is Sleep activated NOTE: The shape and position of switches and indicators may vary slightly according to the model, but their function is the same. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... - Page 17 MODE Select the mode of operation. of each action. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 18 AUTO FAN indicator LOW FAN SPEED indicator MEDIUM FAN SPEED indicator HIGH FAN SPEED indicator MUTE indicator SLEEP indicator ECO indicator SUPER/TURBO indicator Not applicable for this model AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 19 See “Inserting/replacing batteries”, page 15, for detailed instructions. NOTE: Only remove the batteries from the remote control when the air conditioner is not in operation. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 20 • DANGER! Never insert your hand or objects in the unit’s air outlet. It contains a fan that turns at high speed. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 21 • If the remote control is programmed for COOLING mode, you will not be able to activate the heating function. To do this you need to take out the batteries and repeat the programming procedure for HEATING mode (see page 15). AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 22 (with the POWER button). • In case of a power failure or other disconnections from the power supply, you will have to reset your timer settings. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 23 • In HEATING mode the set temperature is gradually decreased by 2°C during the first 2 hours. • After running in SLEEP mode for 10 hours, the unit will automatically switch off. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 24 • To activate the I FEEL function, press the I FEEL button on the remote control until the I FEEL symbol ( ) appears in the display. • This function will terminate two hours after activation. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 25 0Pa for The emergency button is located on the all models. right part of the unit under the front panel. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
-
Page 26: Faqs And Troubleshooting Guide
• The remote control batteries are flat — insert new ones. • There are obstacles between the remote control and the signal receiver on the indoor unit — move the obstacles, see page 19. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... - Page 27 Malfunction of the indoor fan motor — call for service. Filter cleaning reminder — cut off power and clean the filter before reuse. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
-
Page 28: Other Useful Information
• Clean and replace the filters. • On a sunny day let the appliance work in ventilation for some hours, so that the inside of the unit can dry completely. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... - Page 29 • If the battery of the outdoor unit is clogged by dust, leaves or other environmental debris, remove it with an air jet or a bit of water. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 30 Spare parts Our after sales support centre stocks the following spare parts for the STR-9R32 STIRLING Reverse Cycle Inverter Split System Air Conditioner. To purchase a part, call the centre on 1300 886 649 or email us at info@tempo.org...
- Page 31 Indoor Airflow Volume Heating 550m Indoor Unit Net Weight Outdoor Unit 27kg Indoor Unit 910 x 294 x 206 Dimensions (mm) Outdoor Unit 831 x 300 x 553 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 32 This air conditioner contains a flammable refrigerant, which must be removed before disposal. Contact your municipal authorities for any codes or regulations concerning the disposal of such materials. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 33 Proof of professional installation is also required for warranty claims. Please fill in the details below: Name of licensed installer: ..............Licence number: ..................Date of installation: ................Signature / Date: ................... AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
- Page 34 This page has been left blank intentionally. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
-
Page 35: Repair And Refurbished Goods Or Parts Notice
Tempo (Aust) Pty Ltd ABN 70 106 100 252 PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Sat 09:00am to 06:00pm AEST) Email: info@tempo.org AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019... - Page 36 Instruction Manual Revision Index Version No Issue Date Description V1.0 20 June 2019 Original release V1.1 09 July 2019 Minor updates: pages 12, 30 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-9R32 PRODUCT CODE : 12414 11/2019...
