Portable Air Conditioner Model Number A013A-14CB INSTRUCTION MANUAL AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Welcome Congratulations on choosing to buy a STIRLING product. ® All products brought to you by STIRLING are manufactured to the highest ® standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.
Welcome Warranty Details General Safety Instructions Product Overview Getting Started Features Installation Instructions FAQs & Troubleshooting Guide Other Useful Information Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. YEAR WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Grip by the plug, do not pull by the cord when disconnecting. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 6
• Airflow: Do not direct the airflow onto plants or animals, as long and direct exposure to cold air from the air conditioner could adversely affect them. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 7
– in an area where furniture or other objects can obstruct the airflow – in the presence of flammable substances or vapour such as alcohol, insecticides, petrol, etc. – at a dry cleaner’s premises. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 8
Discharge 5.0MPa, Suction 1.5MPa • Liability: We assume no responsibility for any eventual damages caused by improper installation, faulty use or failure to follow the instructions in this manual. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...

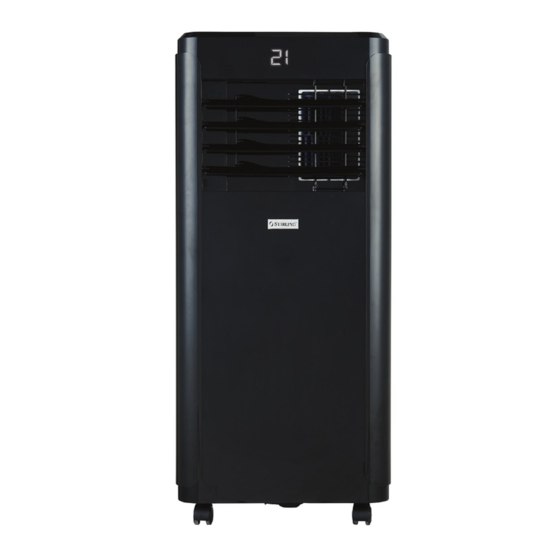

Product Overview Front view Scope of delivery Portable air conditioner Control panel “Hidden” display Air outlet grille Louvres Front cover Castor wheels Side filter Side view Top view AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 10
Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Pay particular attention to the safety instructions on the previous pages. Electric shock hazard! Before installation or servicing, ensure the unit is switched off and disconnected from the power outlet to prevent possible injury. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
SWING: Swing selection button — turns oscillation on or off Battery compartment (at the back of the remote control cover, not visible here) AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
To cool the room effectively, the window kit must be properly installed. Fig. 6 Fig. 5 IMPORTANT! Keep the length of the air exhaust hose to the minimum length necessary during operation. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 14
• Fit the slider to the side of the window, then close the window. • Fit the exhaust hose connector (window end) through the opening to the outside. Fig. 8 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
• Moving the appliance: Take care when moving the appliance as condensation water may spill out. Ensure the drip tray is empty before moving it. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 16
After one hour, the appliance will increase the set temperature by 1°C and by another degree after another hour. • Press the SLEEP button again to cancel night-time operation. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 17
• Press the button again to stop right/left airflow. • To adjust the airflow upwards or downwards, move the louvres slightly up or down. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
E0 Code failed. sensor (the unit can also work without replacement). Drain the water manually E2 / E4 Code Water full. out of the drain tray. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
• Wash the filter with a mild detergent in warm water (max. 40°C). Rinse the filter thoroughly and let it dry completely in the shade. • Reinstall the dry filter into its designated space before reuse. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 20
Keep the appliance in a dry, cool place, out of children’s reach. Condensation water drainage outlet with plug and cap Fig. 10 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 21
Magnetic switch Display PCB Motor Drain tray Motor capacitor Dust screen Power PCB Exhaust adaptor Remote control Exhaust hose Transformer Exhaust hose connector Window kit Fan blade AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 22
Contact your local authorities for advice on recycling facilities in your area. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Telephone: 1300 886 649 (Aust) - Fax: (02) 9975 2688 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Sat 09:00am to 06:00pm AEST) Email: info@tempo.org YEAR WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
Page 24
Version No Issue Date Description V1.0 07 June 2019 Original release V1.1 19 July 2019 Minor updates, page 22 V1.2 08 August 2019 Minor updates, page 8 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: A013A-14CB PRODUCT CODE: 12221 10/2019...
