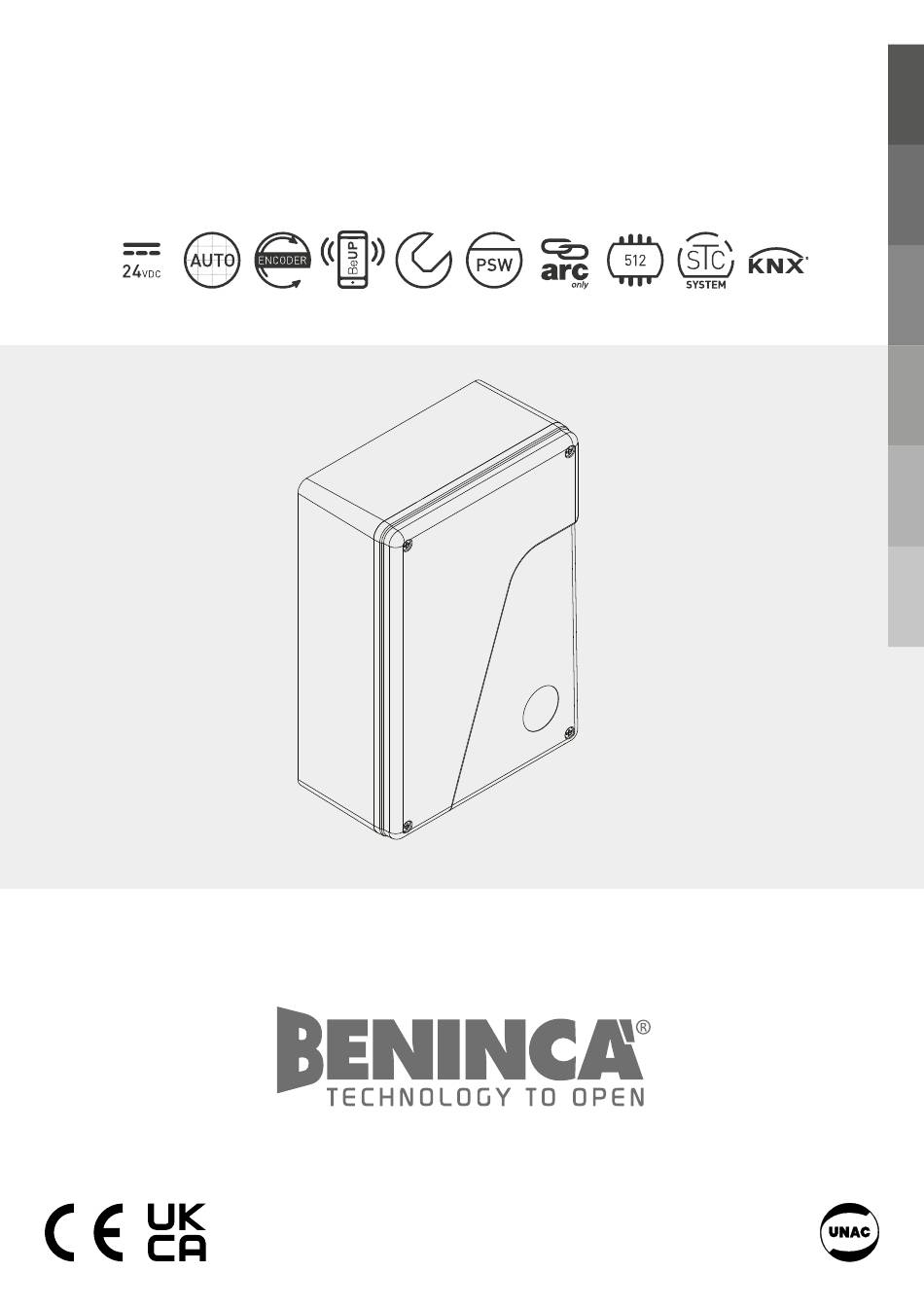

- Page 1 L854200409 09/2023 rev 2 TRUST24 UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 115-230V 50/60Hz TRUST24 2x12V Battery (Optional) ESA:on ESA:off STAND-BY ���� ���� ���� ���� EXP.1 ���� ���� ���� LAMP LOCK AUX1 EXP.2 500 mA AL.ENC. AUX2 N.C.
- Page 3 ENCODER CONNECTIONS LIMIT SWITCH CONNECTIONS AL.ENC. AL.ENC. MINV:OFF MINV:ON AUX1:0004 tst3:on RF.+ SUN PANEL SC-RF J1 Close DEFAULT 12/24 J1 Open BZ-W1-W2 CLOSE J2 DAS N.C. N.C. 12-24 Close LED 2 OPEN DAS 8K2 CH1 CH2 12/24V J2 DAS Open DAS N.C.
- Page 4 AUX 1 500 mA PHOTOTEST - PHOT OP AUX1:0000 AUX1:0000 AUX1:0000 ���� AUX1 500 mA AUX1 PHOTO PHOTO PHOTO ���� AUX1:0003 AUX1:0003 AUX1:0004 24Vdc Max 500 mA LIGHT WARNING! tst1:on tst1:on tst1:on NO LED LAMP! II° CH RADIO AUX1:0001 AUX1:0001 AUX1:0001 24Vac 24Vac...
- Page 5 Display OFF Power ON Firmware Ver. (3s) v1. 0 0 8888 Diagnostic tped ibca fso1/c1 fso1/c1 fso2/c2 fso2/c2 slo1/c1 PREL Slo2/c2 tdmo ltca tdmc MBLK tsm1 tsm2 tst1 pm01 tst2 pmc1 tst3 Pmo2 imot PMC2 minv pso1 aopf psc1 pso2 blco psc2 blcc...
- Page 6 RADI PUSH PUSH PUSH STOP PUSH n tx PUSH 0025 PUSH Nman 0012 3456 MACI 2 Cycle AUTO PUSH OPEN/CLOSE RE-ENTER CODE 0000 9000 9C5a conf CODE Display OFF Legenda Premere il tasto (-) / Press key (-) / Die Taste (-) drücken Appuyez sur la touche (-) / Presionar la tecla (-) / Wcisnąć...
- Page 7 WARNING The product shall not be used for purposes or in ways other than those for which the product is intended for and as described in this manual. Incorrect uses can damage the product and cause injuries and damages. The company shall not be deemed responsible for the non-compliance with a good manufacture technique of gates as well as for any deformation, which might occur during use.
- Page 8 TRUST24 CONTROL PANEL ELECTRICAL CONNECTIONS The following table shows the electrical connections in Fig. 1: Terminals Function Description L-N-GND Supply Mains input 115-230Vac 50-60Hz + BATT - Batteries Input for connection of the back-up batteries (accessory) M0T1 Motor 1 Connector for connection of 24 Vdc MOT1...
- Page 9 CONNECTIONS CHECK 1) Disconnect power supply. 2) Manually release the gates, bring them to approx. half the stroke and lock them again. 3) Restore the power supply. 4) Give a step by step command using the button connected to the input of the PP, remote control or button <->. 5) The gates must move in opening.
- Page 10 PARAMETERS, LOGICS AND SPECIAL FUNCTIONS The following table describes the individual functions available in the control panel. PARAMETRS (PAR) MENU FUNCTION MEMO MIN-MAX-(Default) Automatic closure time Active only with “TCA”=ON logic. 3-240-(40s) At the end of the time set, the control panel commands a closure manoeuvre. Adjusts the opening percentage of motor 1 (pedestrian function).
- Page 11 Sets a short inversion once the closure limit switch point has been reached. sasc It may be useful to facilitate the manual release of the gate. 0-40 (10) Value expressed in 1/10 (0=0s - 40=4s) Sets a short inversion once the opening limit switch point has been reached. saso It may be useful to facilitate the manual release of the gate.
- Page 12 Enables and disables rapid closure. On: rapid closure enabled. With the gate open or in the opening phase, intervention of the (OFF) photocell causes automatic closure 3 s after complete opening. Active only with TCA:ON Off = rapid closure disabled Person present function enabled or disabled.
- Page 13 Enables or disables the block in closure function. blcc On: block function enabled. (OFF) Off: Block function disabled. Selects the type of electric lock used. On: Magnetic electric lock, normally powered according to the Vloc setting. Output en- abled with gate closed. mloc (OFF) Off: Latch electric lock, normally not powered.
- Page 14 RESET (RES) Control panel RESET ATTENTION!: It returns the control panel to the default values. Pressing the <PG> button for the first time causes the RES message to flash; pressing the <PG> button again resets the control panel. Note: The transmitters are not deleted from the receiver or the access password. All the logic and all the parameters are brought to the default values and it is therefore necessary to repeat the autoset procedure.
- Page 15 EMERGENCY BATTERY The TRUST24 control panel includes the power supply board prepared for connection in series of two batteries 12V 2,1Ah DA.BT2 (optional) which enable operation of the automation also in the event of temporary absence of the mains power supply.
- Page 16 E-mail: Declare that the DOC is issued under our sole responsibility and belongs to the following product: Dichiara che il documento è rilasciato sotto la propria responsabilità e appartiene al seguente prodotto: Model/Product: TRUST24 Modello/Tipo: TRUST24 Type: Control box 115÷230Vac Tipo di prodotto: Centrale di comando 115÷230Vac...
