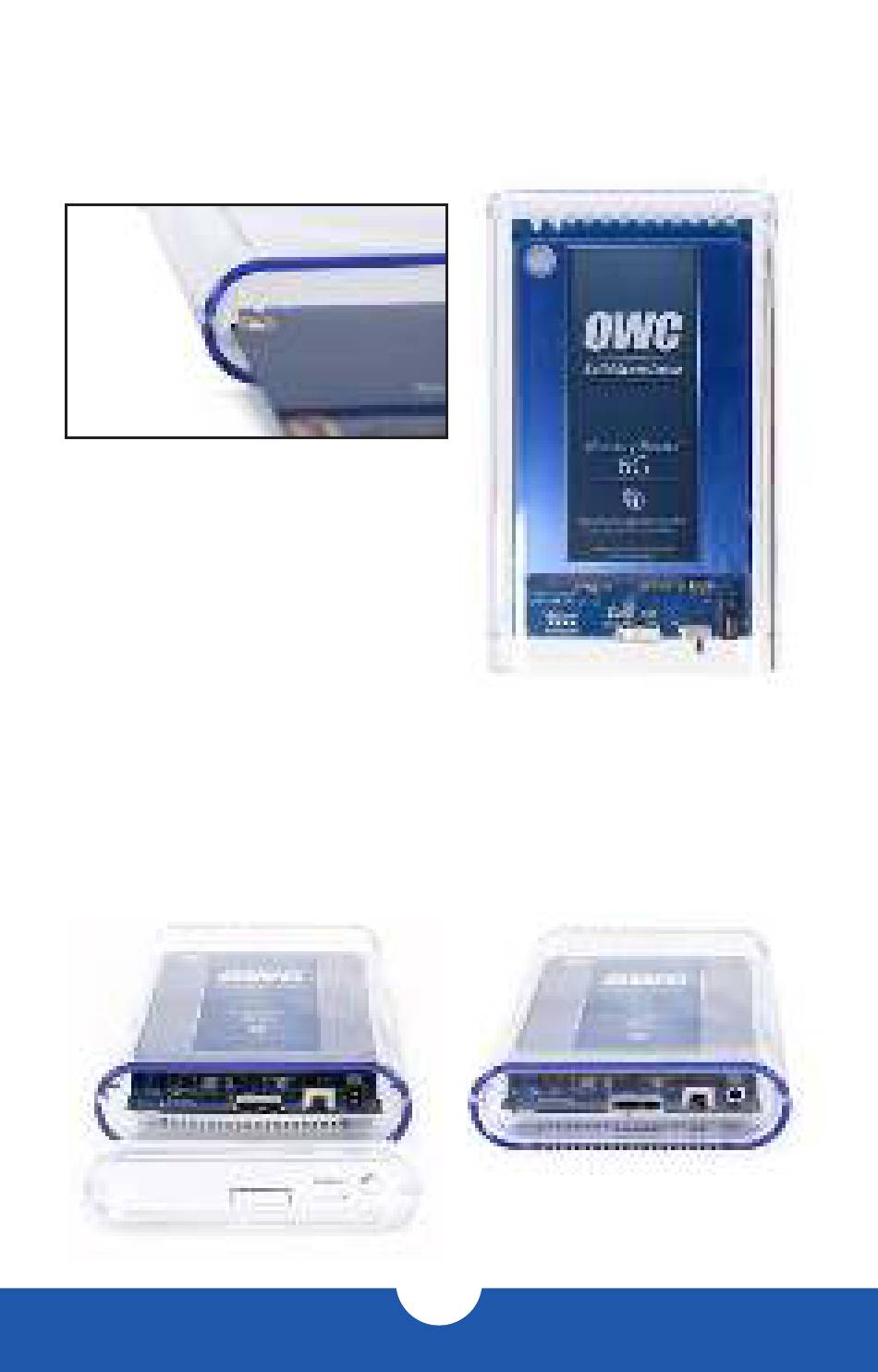

4. Take the circuit board and align its front edge (i.e. the edge opposite the
power switch) with the two grooves on the heat sink (below left). Once aligned,
carefully slide the entire board back into the enclosure, until it contacts the
front cover (below right).
5 . Take the plastic end-cap for the enclosure and line up the cutouts for the
port(s), power switch, and power plug, with their counterparts on the back of
the circuit board (below left). Make sure the end-cap is not upside down. Press
the end-cap into the back of the enclosure until its cutouts sit flush around the
port(s), and the power switch protrudes through its cutout (below right).
