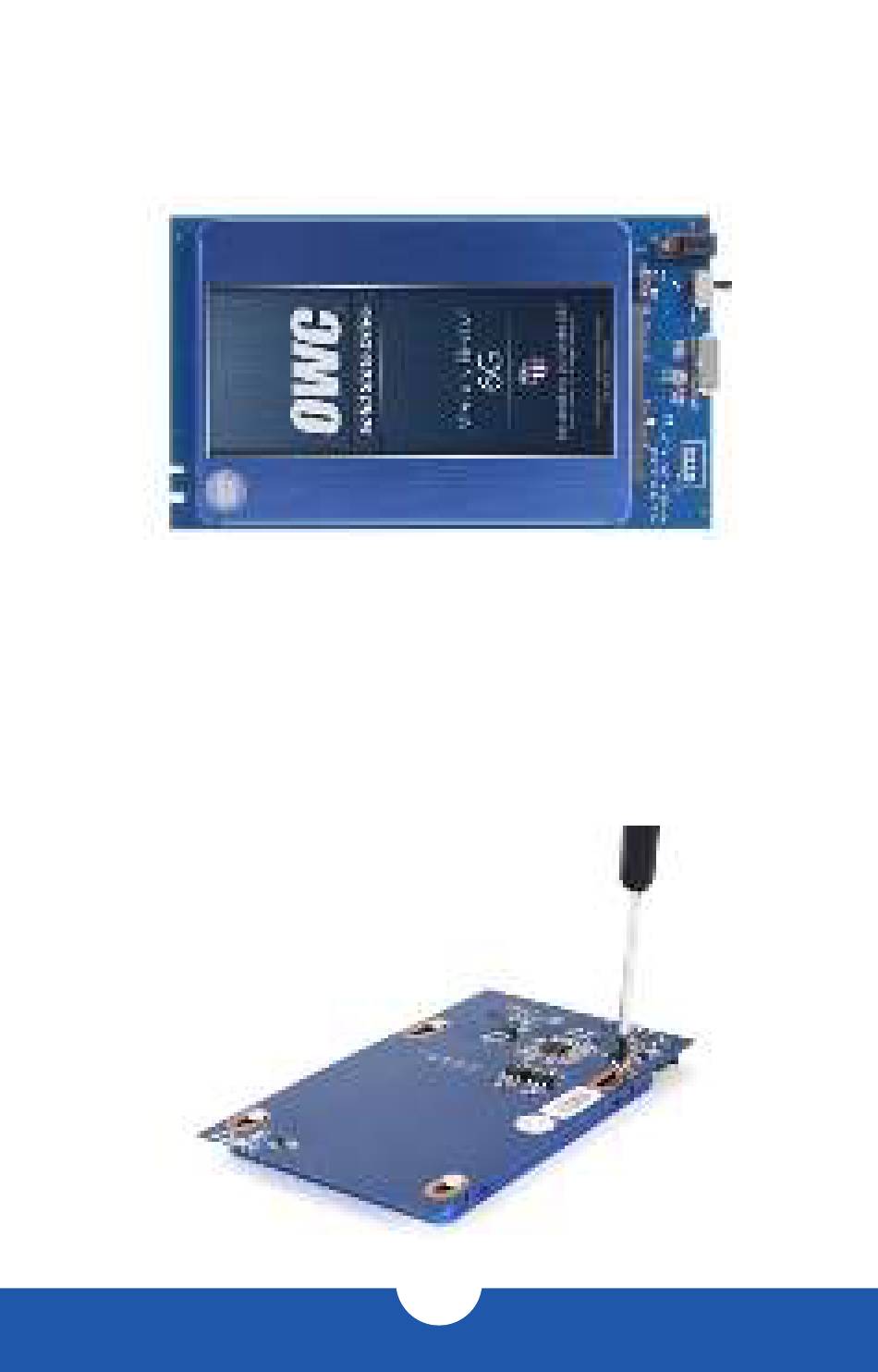

2. Insert the SATA connector on the back of the drive into the SATA connector
on the printed circuit board. Ensure the drive is firmly seated before moving to
the next step. Note: the USB 3.1 Gen 1 version is shown; your circuit board may
look slightly different.
3. Holding the drive in place, turn the circuit board over. Take four of the larger
screws from the included packet and affix the drive to the circuit board. For any
given drive, the positions of its screw holes may not line up exactly within the
oval screw holes on the circuit board. As long as the SATA connection remains
solid, this is not a problem.
4
DEVICE SETUP
OWC MERCURY ON-THE-GO PRO
