Functional Features
The PIXELATOR MINI and PLINK INJECTOR enabling reliable pixel control over long distance.

Supports input protocols: Art-Net, sACN and ESP.

Up to 32 Universes (4U per port) pixel control.

Easy to configure & update through any web browser.

Compatible with multiple asynchronous pixel output protocols with custom voltage timing.

Allows creation of custom pixel protocols. (See 'Custom Protocol Creation Guide' document)

Static or Dynamic (DHCP) IP configuration (DHCP by default).

Pixel grouping is configurable for each port. (1 to 680 for RGB / 1 to 512 for RGBW.)

Pixel colour order is configurable for each port.

Hardware Features
8* RJ45 ports (each providing up to 4 Universes output).

RJ45 connector (10/100 Mbps).

Active IEEE 802.3AF Active PoE or 12-24v DC power input.

Power and output status LED indicators.

All ports feature ESD surge protection and resettable fuses to block external faults & electrical noise

propagation through control infrastructure.
1U Half Width form factor with mounting options for 1U Half Width Rack, 19" Rack, Surface mount, TS-35

DIN mounting.
Compatible with ENTTEC CVC4 RGBW auto-addressable LED dimmer.

PLINK INJECTORs (Sold Separately)
The ENTTEC PIXELATOR MINI supports transmission over 300 meters via Cat6 STP cable, ensuring a reliable
connection to the PLINK INJECTOR. The ENTTEC PLINK INJECTOR seamlessly converts signals into SPI
protocols, effortlessly delivering them up to 3 metres to pixel fixtures.
Designed for versatility, the PLINK INJECTOR features DC power input terminals alongside SPI Data, VCC, and
GND output connections. With the ability to support external DC power supplies of up to 10 Amps, it ensures
compatibility with a wide range of LED tapes and dots, offering exceptional performance and flexibility for
diverse installations.
PC + ENTTEC ELM Software
(SKU: 70581)
For voltage compatibility, please note the following:
◼ SKU 73546 is designed for Pixels with a 5VDC input.
◼ SKU 73544 is designed for Pixels with a 12-24VDC input.
◼ SKU 73924 is designed for outdoor installation (IP66) featuring adjustable voltage
jumper.
6 |

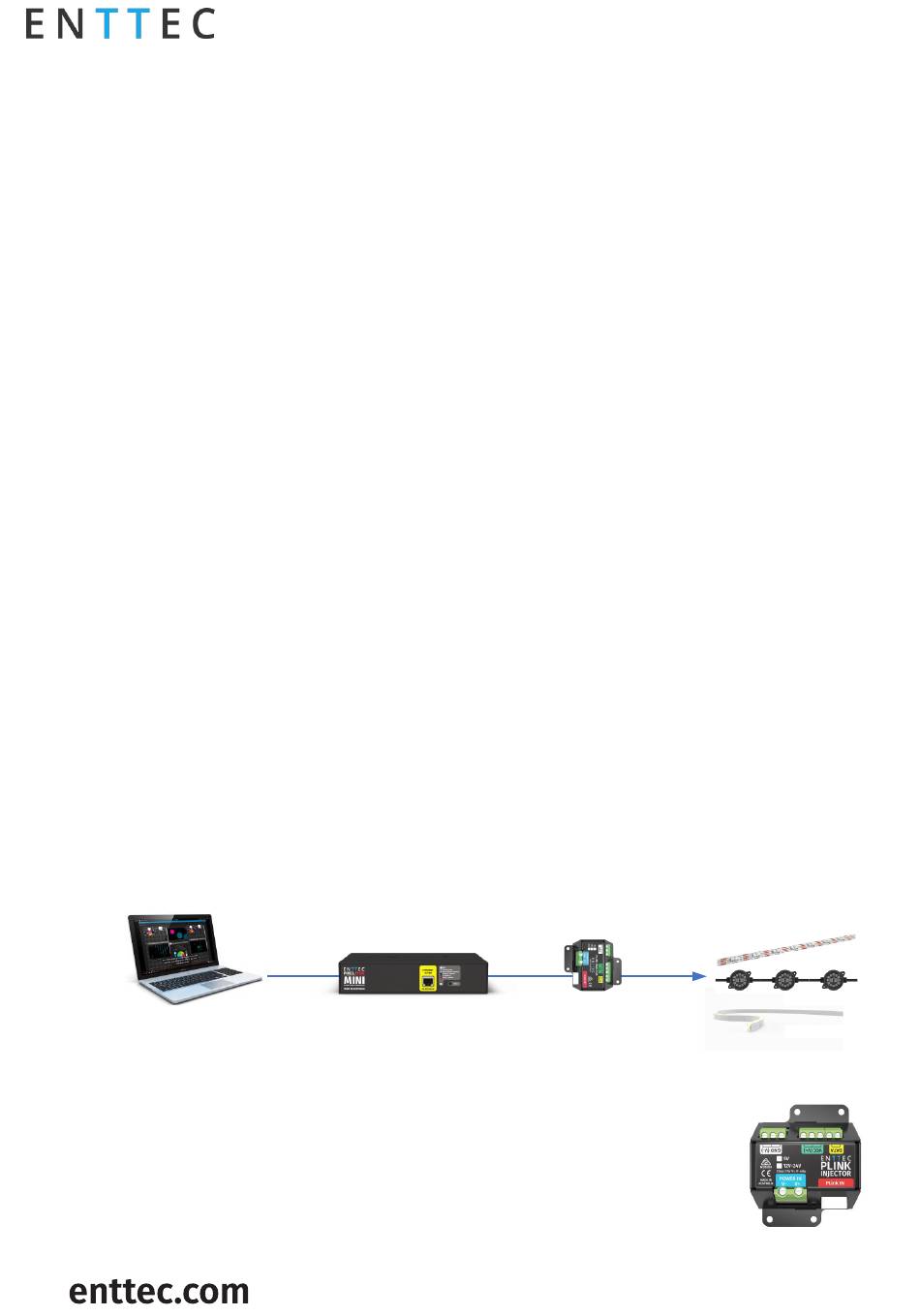

Art-Net,
