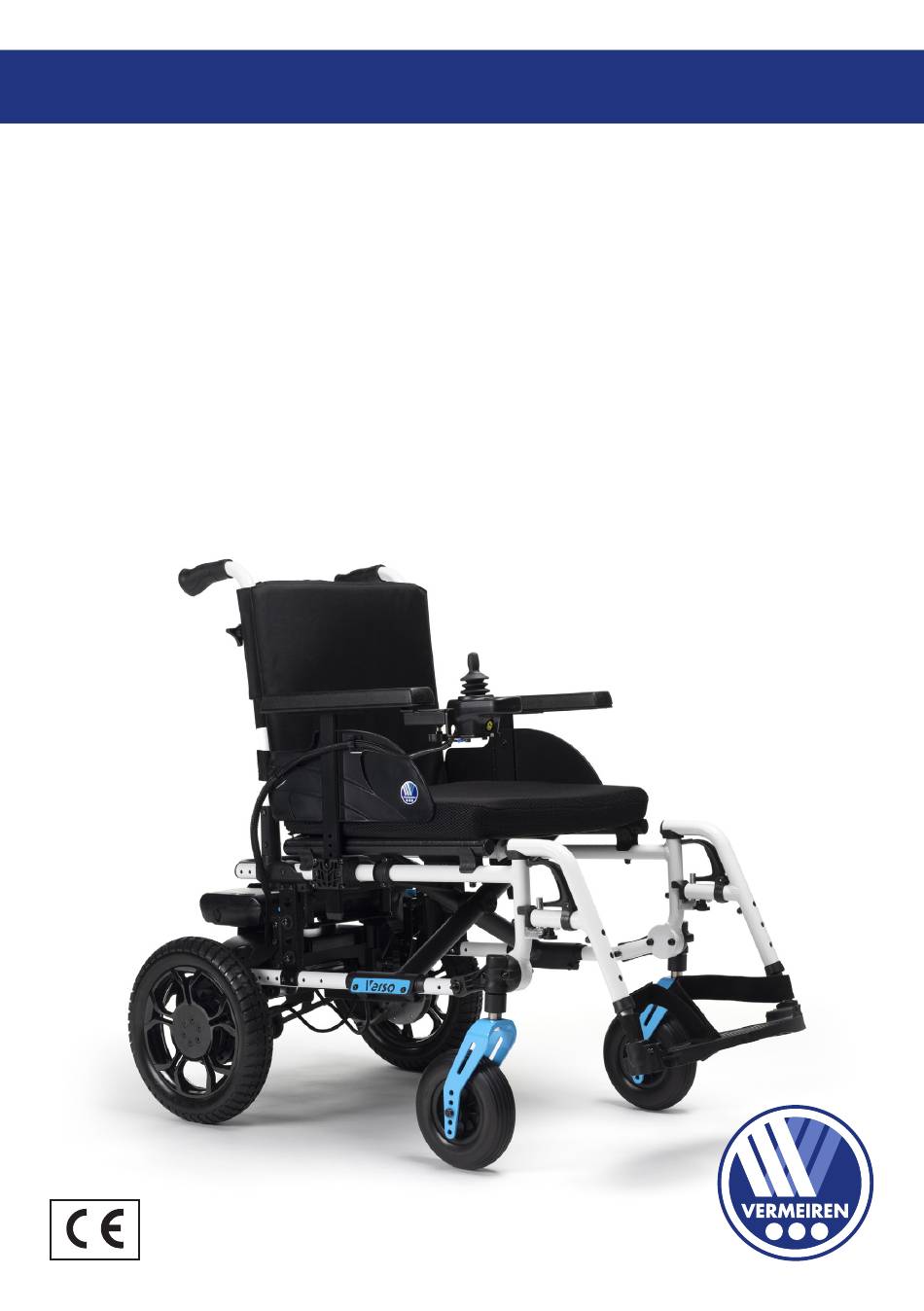

- Page 1 M A N U A L D E I N S T R U C C I O N E S I N S T R U K C J A O B S Ł U G I N Á V O D K O B S L U Z E Verso...
- Page 3 3.6. Transfer to/from the wheelchair. 3.7. Comfort adjustments 3.8. Battery status and charging Maintenance 4.1. Points of maintenance 4.2. Maintenance instructions 4.3. Expected lifespan 4.4. Reuse 4.5. End of use 4.6. Warranty Troubleshooting Technical specifications User manual | 2024-10 Verso...
- Page 4 Vermeiren. Thank you for your trust in the products of Vermeiren. To support you on the use of this wheelchair and its operating functions, this manual is offered. Please read this manual carefully;...
- Page 5 User manual For user and specialist dealer Installation instructions For specialist dealer Service manual for wheelchairs For specialist dealer EC declaration of conformity User manual | 2024-10 Verso...
- Page 6 Safety belt Leg rests or footrests Footplates 10. Steering wheels (front wheels) 1 1. Driving wheels with motors / Rear wheels 12. Front light (optional) 13. Rear light (optional) 14. Battery 15. Cross 16. Identification plate User manual | 2024-10 Verso...
- Page 7 130kg. It is not designed for transportation of goods or objects, nor for any use other than previously described. • Only use accessories and spare parts approved by Vermeiren. • Please read all technical details and limits of your wheelchair in chapter 6..
- Page 8 • Alterations or substitutions should not be made to the wheelchair securement points or to structural and frame parts or components without consulting the wheelchair manufacturer. • Make sure that your hands, clothes, belts, buckles or jewellery don’t get caught by wheels or other moving parts during use. User manual | 2024-10 Verso...
- Page 9 Maximum weight of the user in kg Maximum safe slope in ° (degrees). For indoor use only (battery charger) Maximum speed Type designation Catalogue number Serial number Medical device Manufacturer Date of manufacture Declaration of conformity Attention: important information User manual | 2024-10 Verso...
- Page 10 When transporting the wheelchair by aircraft, lock and disconnect the battery before handing the wheelchair over to airport personnel (see §3.8.2. and §3.8.3. ). The battery can remain in the wheelchair. Consult your airline for the correct handling procedure. User manual | 2024-10 Verso...
- Page 11 • Make sure that your fingers, clothes, buckles won’t get trapped during (dis)assembly. To assemble the powered wheelchair: Unfold the seating frame (A). Place the seating frame on the front wheels and the rear support wheels. Place the drive train unit behind the seating frame. User manual | 2024-10 Verso...
- Page 12 Lift the seating frame up and away from the drive train unit. Remove the arm supports. Remove the footrests. Fold the seating frame. Place the operating console into the designated support on the drive train unit and tighten the star knob (1). User manual | 2024-10 Verso...
- Page 13 User manual | 2024-10 Verso...
- Page 14 • Always keep the swing range of footrest and operating console in mind to prevent bystanders from being injured or objects from being damaged. • Always unplug the battery charger from the wheelchair before starting to drive. User manual | 2024-10 Verso...
- Page 15 • Do not drive on roads with heavy traffic. • Take the weather conditions into consideration. Avoid driving by moist weather, extreme heat, snow, black ice, freezing temperatures; see technical specifications in chapter 6.. User manual | 2024-10 Verso...
- Page 16 • Do not use your wheelchair on an escalator or stairs. • Only use ramps approved by Vermeiren and do not exceed their maximum load. • To safely overcome obstacles or slopes, put the wheelchair in its most upright sitting position.
- Page 17 Speed decrease button Speed increase button Joystick 3.3.1. Technical protections For your own safety, and to prevent that the wheelchair gets damaged, movements are monitored by the electronics. This may result in speed decrease or complete stop. User manual | 2024-10 Verso...
- Page 18 Before you start your drive, make sure that the lighting system cables have been connected. Left indicator Right indicator Hazard lights Driving lights To activate any of the lights, press the appropriate button once. To switch off the lights, press the button again. User manual | 2024-10 Verso...
- Page 19 In this situation, the brakes start braking if: • the wheelchair is OFF; • the wheelchair is ON and the joystick is released. Releasing the joystick makes the wheelchair stop gently and activates the brakes. User manual | 2024-10 Verso...
- Page 20 3.6.2. Sitting in the wheelchair Sit down on the seat with your lower back against the backrest. Turn the footplate(s) down and put your feet on the footplates. Replace the armrests, if applicable. User manual | 2024-10 Verso...
- Page 21 • Make sure that your fingers, clothes, buckles don’t get trapped during adjustment. 3.7.1. Safety belt Fasten the safety belt by clicking the buckle into the receiver. If necessary, adjust the length of the straps. To open the seat belt, press the red button. User manual | 2024-10 Verso...
- Page 22 Swing the footplate downwards. To take off the footrests: Pull lever . Swing the footrest to the outside of the wheelchair until it comes loose from the guidance. Pull the footrest from the tube hood . User manual | 2024-10 Verso...
- Page 23 Place the back cushion back over the backrest starting at the front and ending at the back. Secure the Velcro connections by pressing the cushion against the backrest with your hand. Make sure that all straps are secured with Velcro. User manual | 2024-10 Verso...
- Page 24 It is possible to set the backrest backwards with a maximum inclination of 30°. Make sure that the patient sits in the chair when the attendant adjusts the backrest inclination and that the wheelchair does not tip over. User manual | 2024-10 Verso...
- Page 25 • When your product is not used on a daily basis, make sure to switch off the battery as well as the drive electronics, see §3.3. and §3.8.2.. • Read the storage and maintenance instructions in §4.2. and technical details in §6.. User manual | 2024-10 Verso...
- Page 26 The LED indicator on the battery charger will show the status of the charging process: ɣ Red - Charging ɣ Green - Standby / Fully Charged Once the battery is fully charged, remove the battery charger from the wall socket and the battery. User manual | 2024-10 Verso...
- Page 27 Because of the wiring, both indications can deviate a little bit. In that case, take the worst charge level indication. 3.8.2. Switching the electric device On/Off Press the on/off switch on the side of the battery. User manual | 2024-10 Verso...
- Page 28 Turn the key (1) to the unlock symbol. Pull the battery gently out of the battery housing. 4. Maintenance Regular care ensures that your wheelchair is preserved in a perfectly functional condition. For the maintenance manual, refer to the Vermeiren website: www.vermeiren.com. User manual | 2024-10 Verso...
- Page 29 Risk of injuries and damage • Repairs and replacements may only be undertaken by trained persons and only genuine replacement parts of Vermeiren should be used. The last page of this manual contains a registration form for the specialist dealer to record each service.
- Page 30 • Never use a hose or high-pressure cleaner to clean the wheelchair. • Keep the operating console clean and protect it from water and rain. Wipe all rigid parts with a damp cloth (not drenched). If necessary, use a mild soap, suitable for varnishes and synthetics. User manual | 2024-10 Verso...
- Page 31 The best way to do so, is to disassemble the wheelchair to facilitate the transport of recyclable parts. 4.6. Warranty The warranty on this product is subject to the general terms and conditions of each country. User manual | 2024-10 Verso...
- Page 32 In case of a possible problem, a system code is displayed by the blinking LEDs of the battery status indicator, see §3.3. (2). The following table summarises the possible system codes. Some problems can be solved by yourself. For all problems marked with a star (*), consult your specialist dealer. User manual | 2024-10 Verso...
- Page 33 Take these details into account during use. The values are no longer applicable if your wheelchair has been modified, damaged, or is severely worn. Be aware that the driving performance is influenced by ambient temperature, humidity, slopes (driving up/ down), type of surface and battery status. User manual | 2024-10 Verso...
- Page 34 Brand Vermeiren Product group Powered wheelchair, Class A Type Verso Description Dimensions Maximum user weight 130 kg Overall length with footrest 1078 mm (in shortest seat depth) Backrest 30° : 1 137 mm (in shortest seat depth) Overall width (depends on the seat width)
- Page 35 Brand Vermeiren Product group Powered wheelchair, Class A Type Verso Description Dimensions Front location of arm pad structure 322,5 mm – 370 mm Minimum turning radius 1 145 mm Ground clearance 61 mm Diameter of rear wheels 12" Diameter of front wheels...
- Page 36 By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date: Date: User manual | 2024-10 Verso...
- Page 37 User manual | 2024-10 Verso...
- Page 38 User manual | 2024-10 Verso...
- Page 39 User manual | 2024-10 Verso...
- Page 40 VERMEIREN GROUP Vermeirenplein 1/15 2920 Kalmthout Belgium www.vermeiren.com Version: G, 2024-10 Basic UDI-DI: 5415174VersoG7 All rights reserved, including translation.
