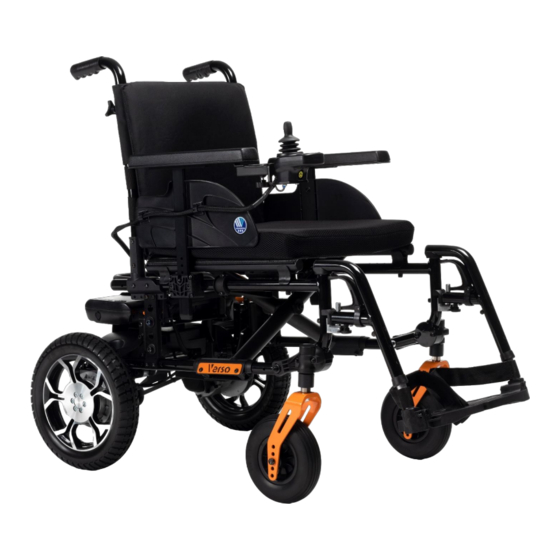

Vermeiren Verso User Manual

Hide thumbs Also See for Verso:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
M A N U E L
D ' U T I L I S A T I O N
G E B R U I K S A A N W I J Z I N G
G E B R A U C H S A N W E I S U N G
M A N U A L E D I I S T R U Z I O N I
M A N U A L
D E
I N S T R U C C I O N E S
I N S T R U K C J A
O B S Ł U G I
N Á V O D
K
O B S L U Z E
Verso

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verso and is the answer not in the manual?

Questions and answers

Related Manuals for Vermeiren Verso

Summary of Contents for Vermeiren Verso

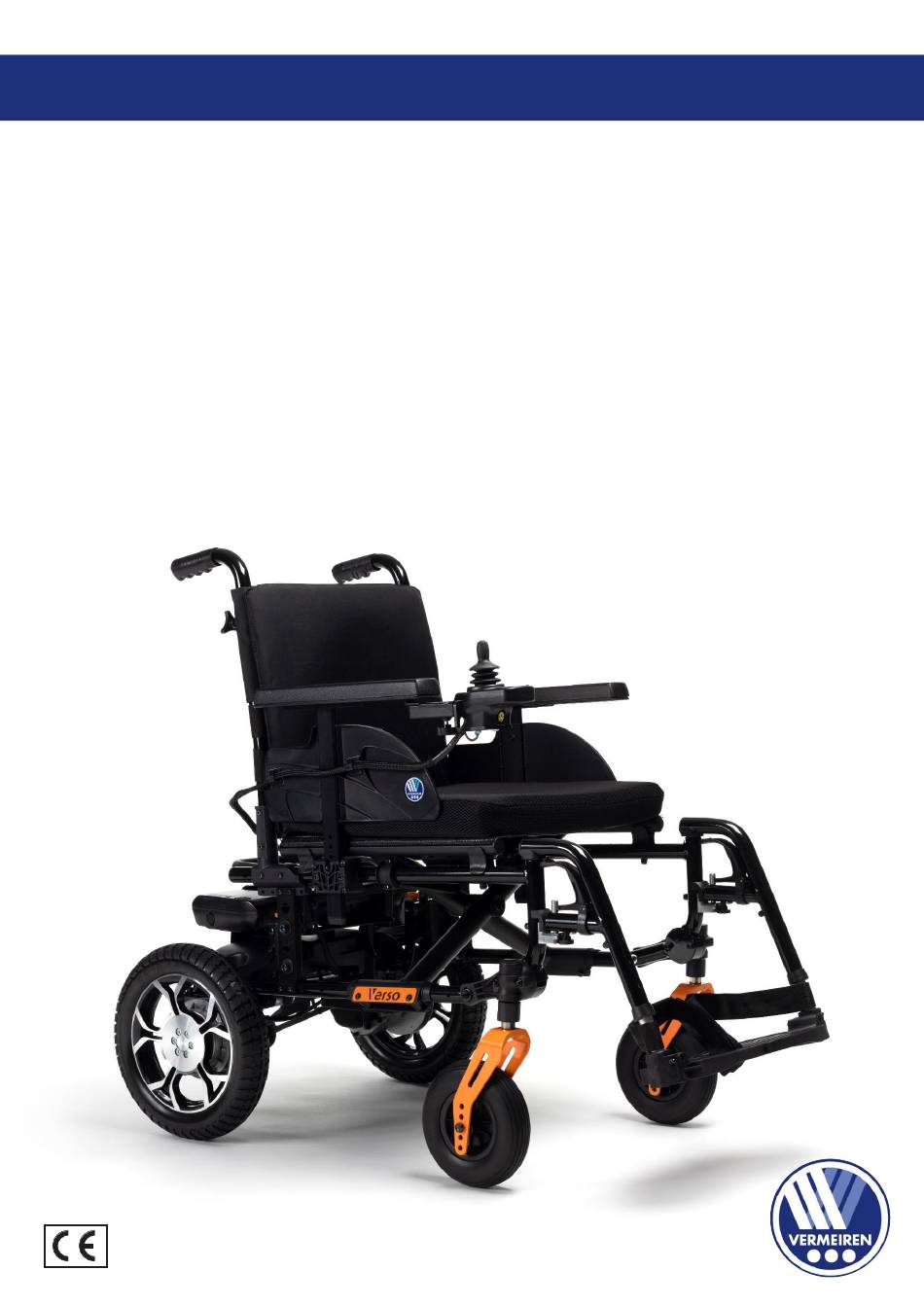

  • Page 1 I N S T R U C C I O N E S I N S T R U K C J A O B S Ł U G I N Á V O D O B S L U Z E Verso...

  • Page 3: Table Of Contents

    Verso 2024-07 Content Content Content ........................1 Preface........................2 Your product ....................3 Options ......................3 Before use ..................... 4 Intended use ....................4 General safety instructions ................4 Symbols on the wheelchair ................5 Transport ....................... 5 Assembly/Disassembly ................. 6 First use and storage ..................

  • Page 4: Preface

    Vermeiren. Thanks for your trust in the products of Vermeiren. To support you on the use of this wheelchair and its operating options, this manual is offered. Please read it carefully; it will help you to get familiar with the operation, capabilities and limitations of your wheelchair.

  • Page 5: Your Product

    Verso 2024-07 Your product Your product Backrest 7. Front wheels Operating console 8. Rear wheels / Driving wheels with motors Armrest 9. Battery Seat 10. Cross Footrest 11. Identification plate Footplate Options  Contact your specialist dealer about options. He will gladly advise you.

  • Page 6: Before Use

    For this reason, consult your doctor first and make sure that your specialist dealer is informed about his advice.  Only use accessories and spare parts approved by Vermeiren.  Please read all technical details and limits of your wheelchair in chapter 6.

  • Page 7: Symbols On The Wheelchair

    Verso 2024-07 Before use  Alterations or substitutions should not be made to the wheelchair securement points or to structural and frame parts or components without consulting the wheelchair manufacturer.  Make sure that your hands, clothes, belts, buckles or jewellery don’t get caught by wheels or other moving parts during use.

  • Page 8: Assembly/Disassembly

    Verso 2024-07 Before use 2.4.3 Transport by vehicle, as luggage The best way to transport your electric wheelchair in the car is to drive it by using ramps. If you are not experienced to drive the electric wheelchair using ramps, you can put the wheelchair in neutral mode and push the wheelchair in the car using ramps.
  • Page 9 Verso 2024-07 Before use...

  • Page 10: First Use And Storage

    Verso 2024-07 Before use First use and storage Risk of battery damage CAUTION  Never completely discharge the battery.  Do not interrupt the charging cycle; only disconnect the battery charger when the battery is fully charged.  Make sure that your wheelchair is stored dry to prevent mould from growing and the upholstery from being damaged.

  • Page 11: Using Your Wheelchair

    Verso 2024-07 Using your wheelchair Using your wheelchair Risk of injuries WARNING  First read previous chapters and inform yourself about the intended use. Do NOT use your wheelchair unless you have read and fully understood all instructions.  Also read the instructions in the operator console manual and battery charger manual! ...

  • Page 12: Operating Console

     Do not use your wheelchair on an escalator or stairs.  Only use ramps approved by Vermeiren and do not exceed their maximum load.  To safely overcome obstacles or slopes, put the wheelchair in its most upright sitting position.

  • Page 13: Brake And Free-Wheel Lever

    Verso 2024-07 Using your wheelchair 1. ON/OFF button 2. Battery charge indicator 3. Speed indicator 4. Horn button 5. Speed decrease button 6. Speed increase button 7. Joystick 3.3.1 Technical protections For your own safety, and to prevent that the wheelchair gets damaged, movements are monitored by the electronics.

  • Page 14: Moving To/From Wheelchair

    Verso 2024-07 Using your wheelchair The EM brakes function automatically, only if free- wheel lever (1) is in braking position. In this situation, the brakes start braking if:  the wheelchair is OFF;  the wheelchair is ON and the joystick is released.
  • Page 15 Verso 2024-07 Using your wheelchair 3.6.1 Mounting or removing the footrests Mounting the footrests is done as follows: 1. Hold the footrest sideways at the outside of the wheelchair’s frame and mount the tube hood  into the frame. 2. Swing the footrest inwards until it clicks in position.
  • Page 16 Verso 2024-07 Using your wheelchair 3.6.4 Backrest support The backrest of the wheelchair has a suspension system with adjustable Velcro straps, to adjust the flexibility of the backrest. 1. Pull the backrest cushion from the Velcro straps of the backrest.

  • Page 17: Battery Status And Charging

    Verso 2024-07 Using your wheelchair Battery status and charging WARNING Risk of injuries and damage due to fire  Only use the battery charger delivered with the wheelchair. The use of any other charger may be dangerous (fire hazard).  The battery charger is only intended to charge the batteries delivered with the wheelchair, not to charge any other batteries.

  • Page 18: Switching The Electric Device On/Off

    Verso 2024-07 Using your wheelchair 3.7.1 Battery charge indicator There are two battery charge indicators: On the battery pack: 1. Press button  on the battery pack. 2. The LED's of the battery charge indicator  will indicate the battery charge level.

  • Page 19: Maintenance

    The service frequency depends on the frequency and intensity of use. Contact your dealer to agree to a common timetable for inspection/maintenance/repair. Read the user instructions of the applied battery charger regarding maintenance. For the maintenance manual, refer to the Vermeiren website: www.vermeiren.com. Before each use Inspect the following points: ...

  • Page 20: Troubleshooting

    Verso 2024-07 Maintenance 4.2.2 Cleaning CAUTION Risk of damage by moisture  Keep the operating console clean and protect it from water and rain.  Never use a hose or high-pressure cleaner to clean the wheelchair. Wipe all rigid parts of the wheelchair with a damp cloth (not drenched). If necessary, use a mild soap, suitable for varnishes and synthetics.

  • Page 21: End Of Use

    Verso 2024-07 Maintenance End of use At end of life, you need to dispose of your wheelchair according to the local environmental legislation. The best way to do so, is to disassemble the wheelchair to facilitate the transport of recyclable parts.

  • Page 22: Troubleshooting

    Verso 2024-07 Troubleshooting Troubleshooting Risk of injuries and damage to the operating console or wheelchair WARNING  NEVER attempt to repair the operating console yourself.  For failures of the operating console, you need to contact your specialist dealer. He/She decides if the console needs to be reprogrammed.

  • Page 23: Technical Specifications

    Verso 2024-07 Technical specifications Technical specifications The technical details below are only valid for this wheelchair, at standard settings and optimal ambient conditions. Take these details into account during use. The values are no longer applicable if your wheelchair has been modified, damaged, or is severely worn. Be aware that the...
  • Page 24 Verso 2024-07 Technical specifications Brand Vermeiren Type Electric wheelchair, Class A Model Verso Maximum occupant mass 130 kg Minimum turning radius 1145 mm Ground clearance 61 mm Diameter rear wheels 12” Type of rear wheels ** PU tyres Diameter front wheels...
  • Page 27 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
  • Page 28 Vermeiren GROUP Vermeirenplein 1 / 15 2920 Kalmthout website: www.vermeiren.com Instructions for specialist dealer This instruction manual is part and parcel of the product and must accompany every product sold. Version: F, 2024-07 Basic UDI: 5415174VersoG7 All rights reserved, including translation.
