Summary of Contents for Ecler eMOTUS5P
-

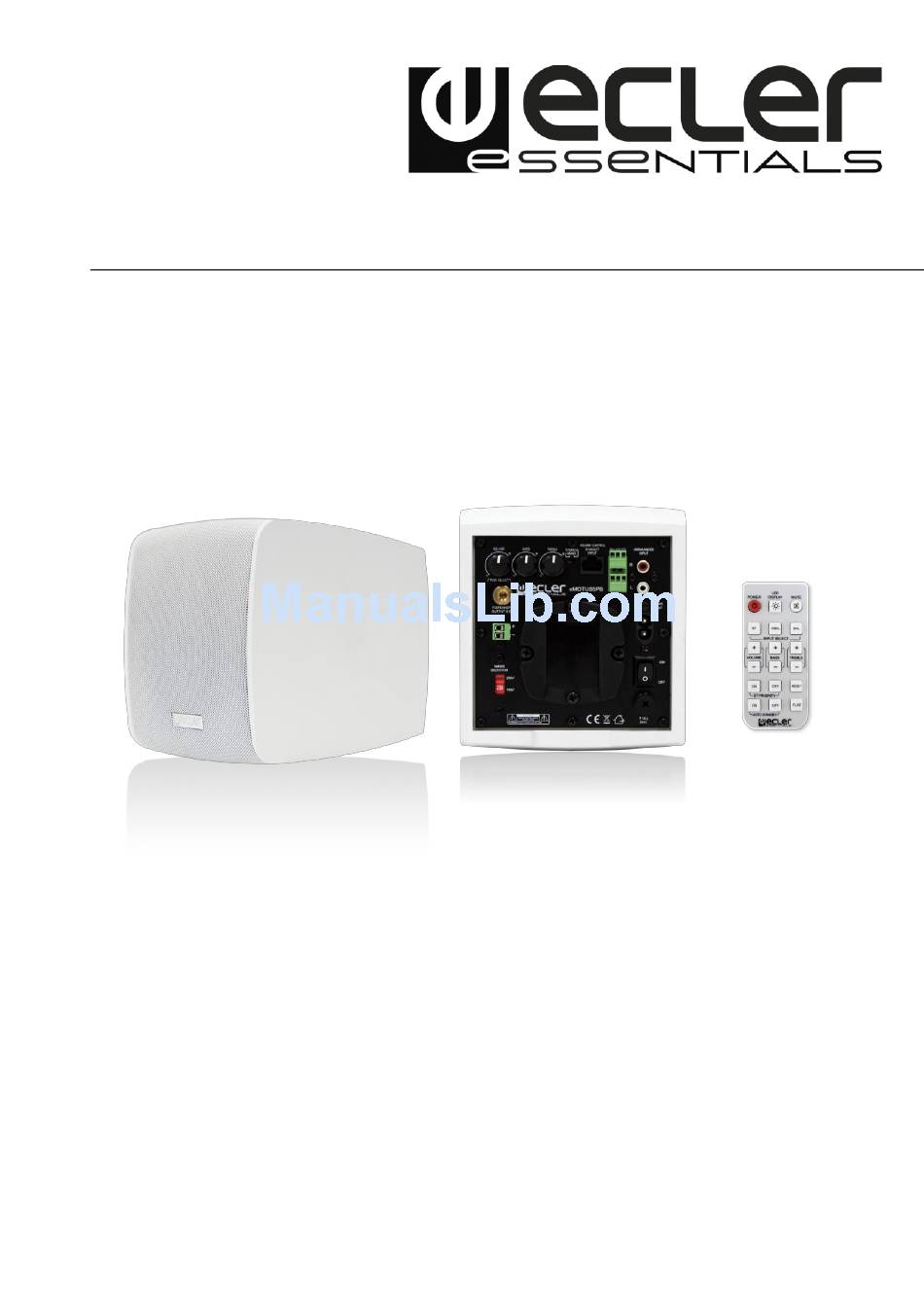

Page 1: User Manual
SURFACE MOUNT CABINE TS Powered Loudspeakers - Stereo kit USER MANUAL... -
Page 2: Table Of Contents
INDEX Important note Precautions Introduction Key Features Positioning and fitting Start up Remote control Rear panel Technical specifications Packing content... -
Page 3: Important Note
Congratulations. You now own the result of a well-designed, carefully produced manufacture. We thank you for your trust by having chosen our set of powered eMOTUS5P/eMOTUS5PB acoustic cabinets. To achieve its maximum working order and performance, it is VERY IMPORTANT, before connecting, to read this manual carefully. -
Page 4: Introduction

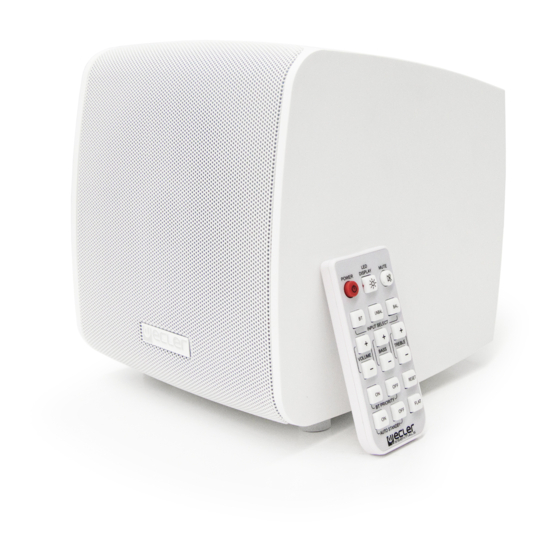

INT R OD U C T I O N The eMOTUS5P / eMOTUS5PB is a kit of loudspeakers including an active and a passive acoustic box. The eMOTUS5PB includes a wireless BT receiver, remote control and remote control volume port (0-10 VDC). A compact, professional stereo kit, easy to handle and at a very attractive price. -
Page 5: Positioning And Fitting
Adjust the levels of sound pressure to reproduction requirements. Despite its small size, the eMOTUS5P / eMOTUS5PB has a performance far higher than that of domestic loudspeakers. Procedure for installing on a surface: 1. Make three 6 mm screw holes in the wall, aligned with the position of the holes in the bracket. - Page 6 5. Connect the power supply cables, signal input and link between the two units to the connectors on the rear part of the housing. Ensure correct polarity in the Euroblock terminals. 6. Place the acoustic box in its final position, sliding it vertically downwards so that the rear side of the rail slots into the bracket rail.
-
Page 7: Start Up
ST A RT U P eMOTUS5P To start up the system, turn on the MASTER (L) unit with the switch on the rear panel and adjust the volume and equalizer to the required settings. You may select the audio source (balanced or non-balanced input) by pressing the rotating volume encoder. -
Page 8: Remote Control
RE M O TE C O NT R O L Remote control (only applies to the eMOTUS5BT model) º 1. Turn on: on/off. The green LED display lights up when the unit is on. When off, no LED is displayed. 2. - Page 9 10. Auto Standby: keep pressed (for 2 secs.) to activate/deactivate the auto standby function. If this is activated, after 2`30” with no audio in the inputs and if the remote controlled is not used, the unit will switch to standby mode. 11.
-
Page 10: Rear Panel
RE A R PA NE L 1. Output volume control 2. Bass control 3. Treble control 4. Stereo-mono switch 5. Remote input RJ-45. Only applies to the eMOTUS5BT model 6. Balanced audio input - Euroblock connectors 7. Non-balanced audio input – RCA connectors 8. -
Page 11: Technical Specifications
TE C H N IC A L S PE C I F IC A TI O NS eMOTUS5PB / eMOTUS5P Power 2 x 25W RMS Impedance 8 Ω Frequency response (±10dB) 85Hz – 20kHz THD + Noise @ 1kHz Full PWR ≤0.5%... -
Page 12: Packing Content
P A C KI NG C ON TE N T eMOTUS5P / eMOTUS5PB loudspeaker kit (one active unit + one passive unit) 2 x articulated brackets for wall mounting 5mm Allen key 2 x metal safety lines against any possible flaking off, with corresponding screws and lock washers. - Page 13 All product characteristics are subject to variation due to production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 information@ecler.es www.ecler.com...
