FITTING INSTRUCTIONS FOR TP0008 FOOTBOARD SLIDERS
HONDA SILVERWING

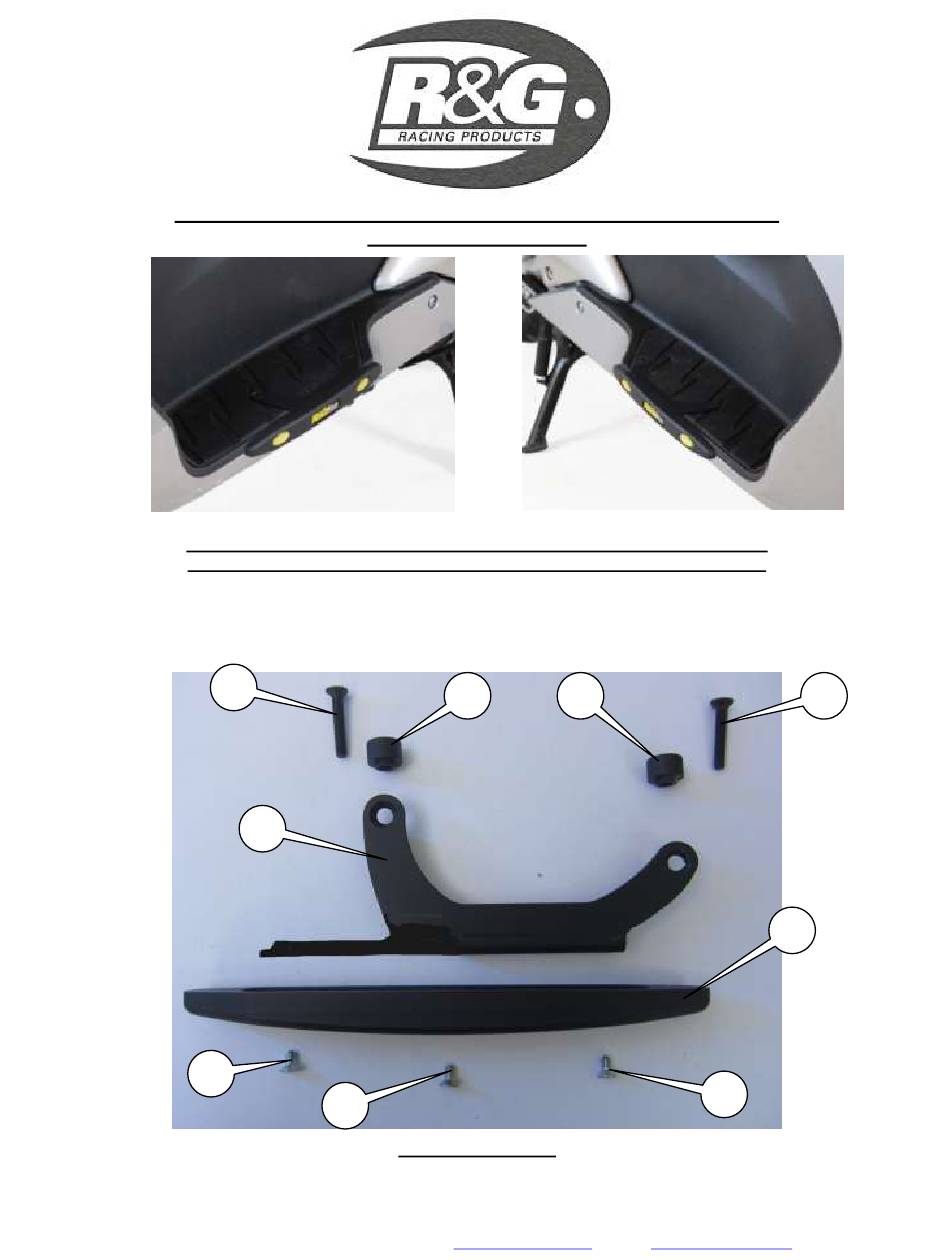

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike.
T
(
)
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
FOR CLARITY OF INSTRUCTIONS ONLY
2
3
3
2
1
4
5
5
5
LEFT HAND SIDE
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Related Manuals for R&G TP0008
Summary of Contents for R&G TP0008
- Page 1 FITTING INSTRUCTIONS FOR TP0008 FOOTBOARD SLIDERS HONDA SILVERWING THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike.
- Page 2 RIGHT HAND SIDE TOOLS LEGEND ITEM 1 = MOUNTING PLATE LEFT SIDE (MP0030) (x1). ITEM 2 = M6x35mm LONG COUNTERSUNK BOLTS (x4). ITEM 3 = STEPPED SPACER (S0522) 14mm LONG (x4). ITEM 4 = SLIDER (SL0007) (x2). ITEM 5 = M5x12mm LONG COUNTERSUNK BOLTS (x6). ITEM 6 = MOUNTING PLATE RIGHT SIDE (MP0031) (x1).
-
Page 3: Tools Required
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt – the rubber washers should be thrown away! TOOLS REQUIRED Set of metric Allen keys to include 3 & 4mm A/F sizes. ... - Page 4 FITTING INSTRUCTIONS LEFT HAND SIDE Remove the original rubber foot mat by lifting a corner and gently pulling. Remove the two bolts that are now accessible as arrowed in picture 1. Take the M6 making tool (item 7) that is in the kit and screw into one of these holes, ensuring the point is at the top, as shown in picture 2.
- Page 5 Instructions de montage pour TP0008 Sliders de repose pied HONDA SILVERWING Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage. La façon dont le kit est emballé ne correspond pas forcément à la façon de monter les pieces sur la moto.
- Page 6 OTE GAUCHE OTE DROIT UTILS LEGENDE ARTICLE 1 = Plaque de montage coté gauche (MP0030) (x1). ARTICLE 2 = M6x35mm Boulon à tête fraisée (x4). ARTICLE 3 = Entretoise crantée (S0522) 14mm de long (x4). ARTICLE 4 = Slider (SL0007) (x2). ARTICLE 5 = M5x12mm Boulon à...
- Page 7 ARTICLE 6 = Plaque de montage coté droit (MP0031) (x1). ARTICLE 7 = Outil de marquage (x1). ARTICLE 8 = 10.5mm Outil de perforation (x1). Notez que si les kits sont emballés avec des rondelles en caoutchouc servant à tenir les composants, ces rondelles doivent être jetées.
- Page 8 Instructions de montage (Coté gauche) Enlever la plaque en caoutchouc du repose pied d’origine en soulevant un coin et en tirant doucement. Enlevez les 2 boulons qui à présent sont accessible (Photo 1). Prendre l’outil de marquage M6 (Article 7) qui est dans le kit puis visser dans un des trous, en vous Assurant que le point est en haut (Photo 2).
