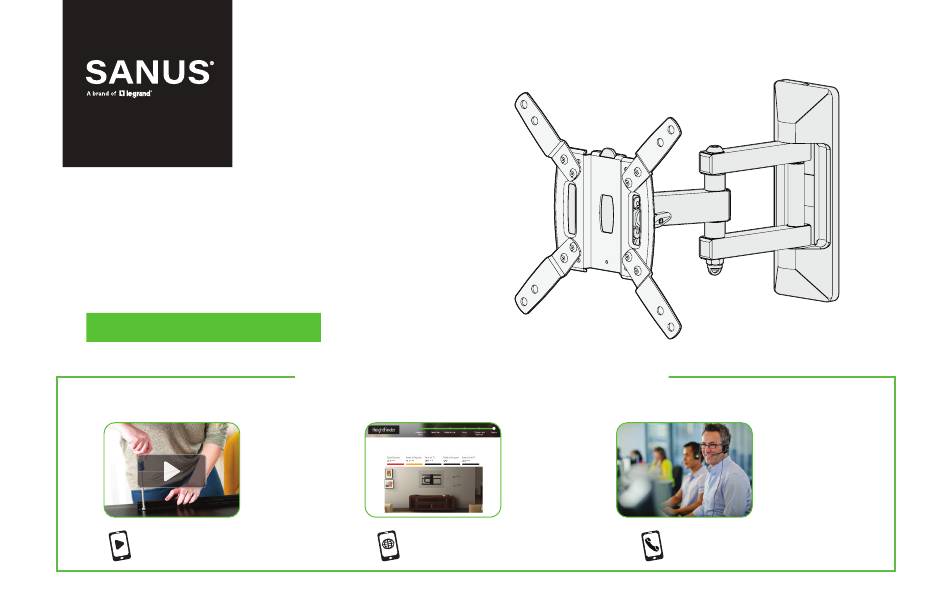

LSF 110

INSTRUCTION MANUAL

Para Español ver página 18

Want to watch a

video that shows

how easy this DIY

project will be?

Watch it now at:

SANUS.com/2847

Need help?

Do you have a question about the SANUS LSF110 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND SANUS LSF110

Page 1 LSF 110 INSTRUCTION MANUAL Para Español ver página 18 WE’RE HERE TO HELP Want to watch a Get it right the Our US-based Recommended placement video that shows ﬁrst time. install experts how easy this DIY HeightFinder are standing ™ project will be? shows you by to help.
Page 2 IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE Before getting started, let’s make sure this mount is perfect for you! Does your TV No — Perfect! ( including accessories ) 35 lb Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call weigh more than (15.8 kg) 35 lb (15.8 kg) ?
Page 3 Dimensions TV INTERFACE 7.87in 200mm 2.95in 75mm 7.87in 2.95in 3.94in 200mm 75mm 100mm 7.87in 200mm WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 3.03in 77mm 16 deg 16 deg DOWN 10.18in 10.46in 258.6mm 265.7mm WITHOUT WITH EXTENSION 8.50in 6.40in EXTENSION BRACKETS...
Page 4 Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
Page 5 STEP 3 Hardware STEP 2 Parts and Hardware Lag Bolt (qty. 2) THIS WAY UP 8-32 x 3⁄8 in. 5/16 x 2 ½ in. 8-32 in. Locking Screw Washer (qty. 1) (qty. 1) STEP 2B: CONCRETE INSTALLATIONS Concrete Installation Kit CMK1 [NOT INCLUDED] Additional Hardware Contact Customer Service to inquire about the addition...
Page 6 M5 x 35mm STEP 1 Attach TV Bracket to TV 1.1 Measure Your TV Hole Pattern 1.2 Assemble Your TV Bracket Measure the width and height of your TV hole pattern in mm. Determine which TV bracket configuration to use, A, B, or C based on your TV hole pattern measurements.
Page 7 Dimensions in mm Dimensions in mm TV Hole Pattern TV Hole Pattern Measurement Measurement 200 x 200 200 x 100 Assemble TV bracket extenders onto TV bracket as illustrated. Assemble TV bracket extenders onto TV bracket as illustrated. Secure using eight screws in the corner holes shown.
Page 8 1.3 Select TV Screw Diameter 1.4 Select TV Screw Length If your TV has a flat back, use the shorter screws. If your TV included inset spacers Hand thread screws into the threaded inserts on the or wall mount adapters, use them back of your TV to determine which screw diameter Spacers and longer screws are supplied to accommodate: UNDER the...
Page 9 1.5 Attach TV Bracket Position your TV bracket configuration over your TV hole pattern - making sure the brackets are vertically centered and level. Install using either the screw/washer (Flat Back) or screw/washer/spacer (Round Back / Extra Space) combination you selected for your TV. IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
Page 10 STEP 2A Attach Wall Plate Wood Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1 ½ x 3 ½ in. (38 x 89 mm) Locate your stud.
Page 11 Slide the cover to expose the mounting holes in wall plate assembly Install wall plate assembly using two lag bolts . Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts. Reattach the cover onto the wall plate assembly Loosen NOTE: If needed, you can make small level adjustments to the wall plate by loosening the bottom lag bolt...
Page 12 STEP 2B Attach Wall Plate Solid Concrete / Concrete Block Installation CAUTION: Avoid potential personal injury or property damage! Concrete Installation Kit CMK1 is not included ● Mount wall plate assembly directly onto concrete surface (no wall covering) Contact Customer Service at 1-855-734-7805 to inquire about ●...
Page 13 Slide the cover to expose the mounting holes in wall plate assembly Install wall plate assembly using two lag bolts . Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt .
Page 14 STEP 3 Hang TV onto Wall Plate HEAVY! You may need assistance with this step. Position the arm of wall plate assembly so the elbow is bent 90 degrees and pressed against the wall. Hang the TV onto the arm of wall plate assembly by first hooking the top support, then resting the TV into place.
Page 15 Manage Cables If desired, thread the supplied cable tie through the loop provided on the arm of the wall plate assembly , and secure your TV cables along the arm for a clean look. IMPORTANT: Fully extend the arm of wall plate assembly to ensure you have enough slack in the cables for full TV movement.
Page 16 TV Adjustments TILT ADJUSTMENT LEVEL ADJUSTMENT Your TV should adjust easily when moved, then stay in place. To adjust the leveling of your TV, loosen the locking screw , level your TV, then tighten locking screw If your TV is too loose or too tight, adjust the tilt tension knob by hand. IMPORTANT: This locking screw must be installed to secure the TV onto NOTE: Once your TV is in place, tighten the tilt tension knob to...
Page 17 SWIVEL ADJUSTMENT EXTENSION/RETRACTION ADJUSTMENT REMOVING THE TV Your TV should adjust easily when moved, then Your TV should adjust easily when moved, HEAVY! You may need stay in place. then stay in place. assistance with this step. If your TV is too loose or too tight, adjust the arm If your TV is too loose or too tight, adjust To remove your TV from the wall plate tension screws using hex key...
Page 18 ESPAÑOL INSTRUCCIONES DE SEGURIDAD IMPORTANTES. CONSÉRVELAS. LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO. Antes de comenzar, verifiquemos que este soporte sea el ideal para sus necesidades. ¿Su televisor pesa No — ¡Perfecto! más de 15.8 kg (35 (15.8 kg) Sí...
Page 19 ESPAÑOL Dimensiones Ver pagina 3 Ver pagina 4 Piezas y accesorios suministrados ADVERTENCIA: Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfixia. Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones. Si faltan piezas o alguna está dañada, no devuelva el artículo al distribuidor;...
Page 20 ESPAÑOL 1,2 Arme la placa de sujeción del televisor Determine qué configuración de placa de sujeción debe usar (A, B, o C) según las medidas del patrón de orificios del televisor ( Los patrones de orificios más pequeños solo requieren placa de sujeción .
Page 21 ESPAÑOL PASO 2A Fijar la placa mural montantes de madera Ver pagina 10 PRECAUCIÓN: Evite lesiones y daños materiales. ● El yeso que recubre la pared no debe exceder los 16 mm (5/8''). ● Tamaño mínimo del montante de madera: nominal 51 mm x 102 mm (2'' x 4''); real 38 mm x 89 mm (1½'' x 3½''). NOTA: TV se desplaza 21.9 mm (0.86 pulg.) a la derecha oa la izquierda cuando está...
Page 22 ESPAÑOL Hormigón sólido o bloques de cemento PASO 2B Fijar la placa mural Ver página 12 PRECAUCIÓN: Evite lesiones y daños materiales. El Kit de instalación en hormigón CMK1 no ● Instale el módulo de la placa mural directamente sobre la superficie de hormigón está...
Page 23 ESPAÑOL PASO 3 Colgar el televisor en la placa mural Ver pagina 14 ¡ELEMENTO Coloque el brazo del ensamblaje de la placa mural de modo que el codo quede flexionado a 90 grados y presionado contra el muro. PESADO! Para colgar el televisor en el brazo del ensamblaje de la placa mural , primero enganche el soporte superior y luego apoye el televisor en su lugar.
Page 24 Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
