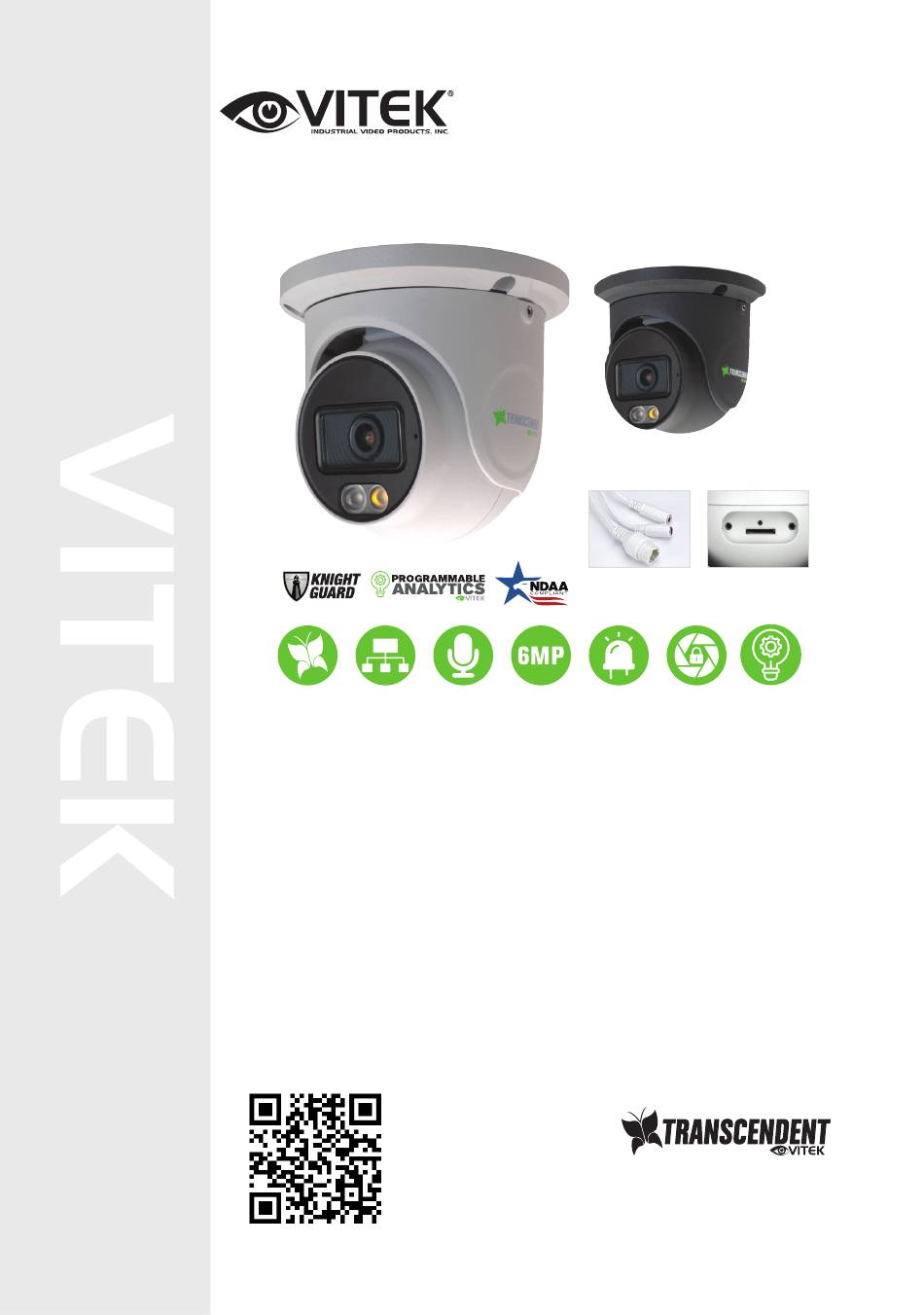

QUICK START GUIDE
TRANSCENDENT
NETWORK
• 1/2.5" 6.0 MegaPixel CMOS Image Sensor
• Up to 20fps@6MP (3200 × 1800), Up to 30fps@4MP & lower
• 2.8mm Fixed Iris Lens
• Matrix IR / White Light (up to 100' Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Object Abandoned / Missing, Scene
Change, Line Crossing, Video Blur, Video Color Cast
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via VMS, Web Browser, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Mounts and Adapters [See All Options on Page 9]
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
VTC-TNT6FEA-2
Transcendent Series 6 MegaPixel
Fixed Lens WDR IP Turret Camera
CABLE CONNECTIONS
Ethernet (PoE), 12VDC
Input, Audio In*
INTEGRATED
6 MEGAPIXEL
MATRIX IR LED
AUDIO
ILLUMINATION
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
*Also available in Charcoal,
VTC-TNT6FEAB-2
MICRO SD CARD SLOT
Supporting up to
256GB MicroSD Cards
FIXED LENS
PROGRAMMABLE
ANALYTICS
Advertisement
Related Manuals for Vitek TRANSCENDENT VTC-TNT6FEA-2
Summary of Contents for Vitek TRANSCENDENT VTC-TNT6FEA-2
- Page 1 VTC-TNT6FEA-2 Transcendent Series 6 MegaPixel Fixed Lens WDR IP Turret Camera QUICK START GUIDE *Also available in Charcoal, VTC-TNT6FEAB-2 CABLE CONNECTIONS MICRO SD CARD SLOT Ethernet (PoE), 12VDC Supporting up to Input, Audio In* 256GB MicroSD Cards TRANSCENDENT NETWORK INTEGRATED 6 MEGAPIXEL MATRIX IR LED FIXED LENS...
- Page 2 Components and Accessories Camera Drill Template Quick Guide Plastic Plugs Screws Network Coupler Overview Cable Connections First connect the Weather Resistant Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply.
- Page 3 Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
- Page 4 3. Secure the mounting base using the screws provided. 3. Adjust the camera to achieve the optimal viewing angle by loosening the locking screws. Before adjustment, preview the camera’s image on a monitor. 4. Tighten the locking screws after adjusting the viewing angle of the camera.
- Page 5 LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2.
- Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
- Page 7 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
- Page 8 DETAILED SPECIFICATIONS: VTC-TNT6FEA-2 Image Sensor 1/2.5” CMOS Image Size 3200 × 1800 Electronic Shutter 1/4s ~ 1/100000s Iris Type Fixed Iris Min. Illumination 0.008 lux @F1.6, AGC ON; 0 lux with illumination on Lens 2.8mm@F1.6, Horizontal FoV: 104°, Vertical FoV:55°, Diagonal FoV:128° Focus Fixed Day &...
- Page 9 3.77 × 4.25” (95.7 × 108mm) Weight 1.17lbs / 18.70oz / 0.53kg (NET) 1.37lb / 21.87oz / 0.62kg (SHIPPING) Installation Ceiling mounting, Wall mounting BREAKDOWN OF MODEL NUMBERS EXAMPLE: VTC-TNT6FEA-2 [VTC] VITEK TRANSCENDENT Network Turret Fixed Entry Second 2.8mm Camera...
- Page 10 DIMENSIONS 4.25” (108.0mm) 3.77” (95.7mm) 4.25” 4.25” (108.0mm) (108.0mm) 3.77” 3.77” (95.7mm) (95.7mm)
- Page 11 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with Programmable Analyticss and NDAA Compliance! • 12MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression • Programmable Analytic Support Including Line Crossing, Region, Area Detection, and More! •...
- Page 12 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNT6FEA-2 VT-TPDM2 VT-TWMT3 VT-TJB08 VT-TJB01 Pendant Optional Optional Optional Junction box Junction box Mount - Wall Mount reqs. for Cable for Cable Management Management VT-TJB01 5.10” VT-TCNMT VT-TPLMT Universal Corner Universal Pole Mount Adapter - Mount Adapter - reqs.
- Page 13 Also Consider Vitek NDAA Compliant Wireless Bridge Products to Reduce Costly Cable Installation! VT-WB1150, VT-WB2150, and VT-WB5900 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, High Speed Transmission, and Point-to-Multi- Point (P2MP) Topology VT-WB1150...
- Page 14 NOTES...
- Page 15 NOTES...
- Page 16 LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
