QUICK START GUIDE
FEATURES:
• 1/3" 4.0 Megapixel CMOS Image Sensor
• Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P
(1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
• 2.8mm Fixed Iris Lens
• Matrix IR with up to 100' IR Range
• True 120dB Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• 1 Ch. Audio In + Built-in Mic*
• Region Intrusion Detection, Scene Change Detection, Line Crossing,
Video Blur, Video Cast Detection
• Compression - Main stream: H.265+ / H.265 / H.264+ / H.264
Compression - Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• Remote Viewing via VMS, Internet Explorer (Plug-in Req'd), Edge in IE Mode,
and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Wall Mounts (VT-TWMT-3, VT-TWMT-A1 [reqs. VT-TJB08]), Junction
Boxes (VT-TJB01, VT-TJB08), and Pendant Mounts (VT-TPDMT-A1 [reqs.
VT-TJB08], VT-TPDM-2 [reqs. VT-TJB01]) Available
[See Additional Mounting Options on Pg. 9]
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.

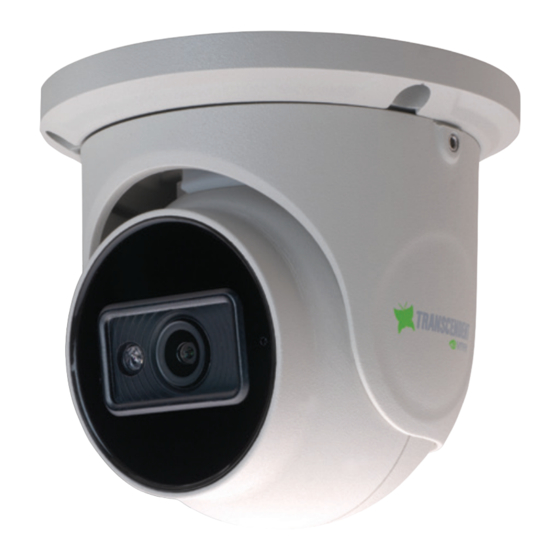

VTC-TNT4FLN-2
Transcendent Series 4 MegaPixel
Fixed Lens WDR IP Turret Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
