QUICK START GUIDE
FEATURES
• 1/2.5" 5.0 MegaPixel CMOS Image Sensor
• Up to 20fps live view @ 5 MegaPixel (2592x1944)
• 2.8mm Fixed Iris Lens
• 1 Matrix Style Infrared LED with a 100' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D-DN & 2D-DNR) Noise Reduction
• H.265, H.264 & MJPEG Compression
• On Board Motion Detection, Privacy Masking, Region of Interest,
Exception, Line Crossing, Intrusion, Object Detection / Removal
(Museum Search)
• 1 Ch. Built-in Audio
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Junction Box Mounts (VT-TJB01/B, VT-TJB08/B) and
Wall Mount (VT-TWMT3/B) Available
• 12VDC / 1Amp & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTC-TNT5RFEB-2)

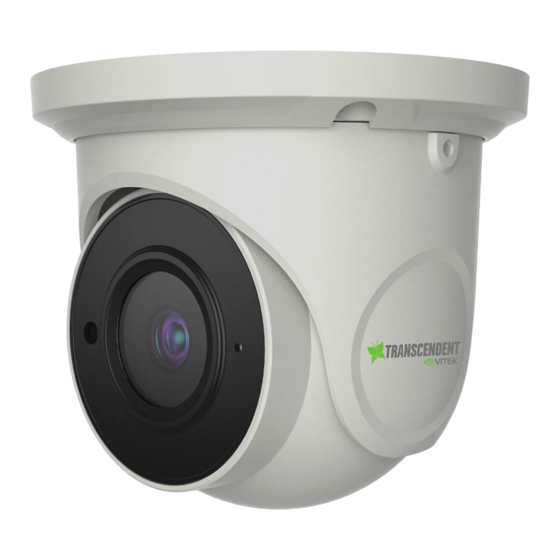

VTC-TNT5RFE-2
Transcendent Series 5MP
Indoor/Outdoor WDR IP
Camera with Matrix IR LED
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Illumination
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-TNT5RFEB-2
Summary of Contents for Vitek VTC-TNT5RFEB-2
- Page 1 • Optional Junction Box Mounts (VT-TJB01/B, VT-TJB08/B) and Wall Mount (VT-TWMT3/B) Available • 12VDC / 1Amp & PoE (Power over Ethernet) Operation • Available in Ivory or Charcoal Grey (VTC-TNT5RFEB-2) PLEASE NOTE: Complete User Guide, Software, Tools, and Updates are available online.
- Page 2 All manuals and user guides at all-guidesbox.com Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Waterproof Cap Hex Wrench Overview Lens Power Input RJ-45 Ethernet 1 Ch. Built-in MIC Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor.
- Page 3 All manuals and user guides at all-guidesbox.com Weather Resistant Network Coupler 1. Loosen the nut from the weather resistant network coupler, 2. Run the weather rated ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
- Page 4 All manuals and user guides at all-guidesbox.com Installation 3. Loosen the lock screws, then adjust the camera to obtain the optimium viewing angle. Confirm the correct viewing Rubber Plug angle with a monitor. (See next page for location of lock screw) 4.
- Page 5 All manuals and user guides at all-guidesbox.com LAN Configuration Switch Network Cable Network Cable MENU Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1.
- Page 6 All manuals and user guides at all-guidesbox.com 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in.
- Page 7 All manuals and user guides at all-guidesbox.com 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4.
- Page 8 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
