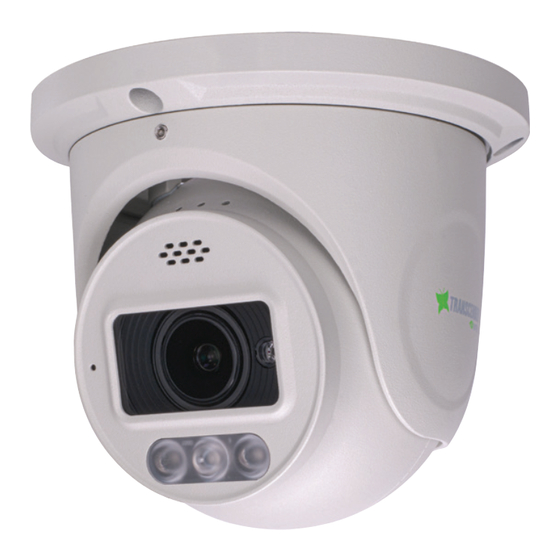

Transcendent knight guard active deterrence 8mp (4k) advanced a.i. motorized af turret camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QUICK START GUIDE
TRANSCENDENT
NETWORK
FEATURES:
•
1/1.8" 8.0 MegaPixel (4K) CMOS Image Sensor
•
Full Color at Night Camera with Active Deterrence
•
Up to 30fps @ 8MP (3840 × 2160)
•
2.8~12mm Motorized AF Lens
•
White Light + Matrix IR (130' Range)
•
GEN IV Advanced Analytics including Face Detection
•
Integrated Audio + Speaker*
•
MicroSD Card Slot (256GB)
•
IP66 Weather Resistance
•
12VDC + PoE Operation
•
3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.
VTC-TNT8MADW
Transcendent Knight Guard Active
Deterrence 8MP (4K) Advanced A.I.
Motorized AF Turret Camera
TURRET CAMERA
8 MEGAPIXEL
MOTORIZED AF
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
WHITE LIGHT +
GEN. IV
IR ILLUMINATION
ANALYTICS
LENS

Advertisement

Table of Contents
loading

Related Manuals for Vitek TRANSCENDENT VTC-TNT8MADW

Summary of Contents for Vitek TRANSCENDENT VTC-TNT8MADW

  • Page 1 VTC-TNT8MADW Transcendent Knight Guard Active Deterrence 8MP (4K) Advanced A.I. Motorized AF Turret Camera QUICK START GUIDE TRANSCENDENT NETWORK TURRET CAMERA 8 MEGAPIXEL MOTORIZED AF WHITE LIGHT + GEN. IV IR ILLUMINATION ANALYTICS LENS FEATURES: • 1/1.8” 8.0 MegaPixel (4K) CMOS Image Sensor •...

  • Page 2: Components And Accessories

    Components and Accessories Camera Drill Template Quick Guide Plastic Plugs + Rubber Plug Screws Network Coupler Overview 1. Ethernet Connector 2. Audio Input Connector 3. Audio Output Connector 4. Alarm Input / Output 5. Power Connector 6. Speaker 7. Mic 8.

  • Page 3: Installation

    Connecting Alarm Input / Output Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: Lock Screw First Install a MicroSD Card as Demonstrated in Diagram at Right 1.
  • Page 4 2. Route and connect relevant cables. 3. Attach the mounting base to the wall with the provided screws. 4. Loosen the fixed ring to adjust the viewing angle of the camera. Preview the camera’s image on a monitor. 5. Tighten the lock screw to finish the installation. Lock Screw...

  • Page 5: Lan Configuration

    LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2.
  • Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. Edge in IE mode / IE browser will download the Active X. control. After downloading, a login window will pop up as shown below: Input the user name and password to log in.

  • Page 7: Wan Configuration

    2. Open Edge in IE mode / IE browser and input the default address of IP-CAM and confirm. Edge in IE mode / IE browser will download an Active X control. 3. After downloading the Active X control, the login dialog box will appear. 4.
  • Page 8 DETAILED SPECIFICATIONS - VTC-TNT8MADW Image Sensor 1/1.8” 8.0 MegaPixel (4K) Progressive Scan CMOS Image Size 8 MegaPixel (3840 × 2160) 8MP(3840×2160 ),6MP(3072×2048 ),5MP(2592×1944 ),4MP(2592×1520 ), 2K (2560×1440 ), 3MP Resolution (2304×1296),1080P(1920 ×1080),720P(1280×720), D1, VGA(640×480), CIF, 480 × 240 Frame Rate 30fps @ 8MP and Lower Main-Stream 30fps @ 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (50Hz: 1~25fps)
  • Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNT8FADW-2 VT-TJB01 VT-TJB021 VT-TWM03 Optional Junction Box Optional Junction Box Optional Wall Mount VT-TWMT-4 VT-TPDM-2 VT-TPDM-3 Optional Wall Mount Pendant Mount - Pendant Mount - VT-TJB01 Required VT-TJB021 Required 7.65” 4.73” VT-TPLMT VT-TCNMT Universal Transcendent Universal Transcendent Pole Mount Adapter Corner Mount Adapter...
  • Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with GEN. IV Advanced Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression •...
  • Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.

  • Page 12: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
