Vitek Transcendent VTC-TNT5RFE-2 Operating Instructions Manual
5 megapixel indoor/outdoor wdr ip fixed turret camera with matrix ir illumination
Hide thumbs
Also See for Transcendent VTC-TNT5RFE-2:
- Quick start manual (9 pages) ,
- Operation manual (52 pages)
Table of Contents
Advertisement
Quick Links
QUICK START GUIDE
FEATURES:
• 1/2.7" 5.0 Megapixel CMOS Image Sensor
• Up to 20fps live view @ 5MP(2592x1944)
• 2.8mm Fixed Iris Lens
• 1 Matrix IR with 100' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D DNR) Noise Reduction
• On Board Motion Detection, Privacy Masking, Region of Interest,
Exception, Line Crossing, Intrusion, Object Detection / Removal
(Museum Search)
• H.265, H.264 Compression
• Built-in Mic*
• MicroSD Card Slot (Up to 128GB)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Junction Boxes (VT-TJB01, VT-TJB08) and Wall Mount
(VT-TWMT-3) Available
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Gray (VTC-TNT5RFEB-2)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.

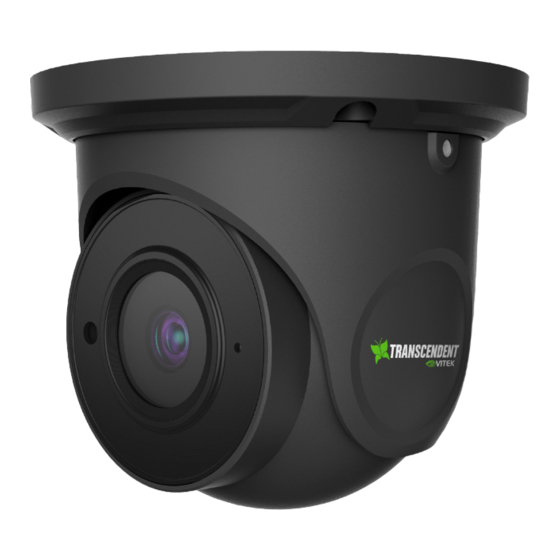

VTC-TNT5RFE-2
5 MegaPixel Indoor/Outdoor
WDR IP Fixed Turret Camera
with Matrix IR Illumination
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
Advertisement
Table of Contents
Related Manuals for Vitek Transcendent VTC-TNT5RFE-2
Summary of Contents for Vitek Transcendent VTC-TNT5RFE-2
- Page 1 VTC-TNT5RFE-2 Transcendent Series 5 MegaPixel Indoor/Outdoor WDR IP Fixed Turret Camera with Matrix IR Illumination QUICK START GUIDE FEATURES: • 1/2.7” 5.0 Megapixel CMOS Image Sensor • Up to 20fps live view @ 5MP(2592x1944) • 2.8mm Fixed Iris Lens • 1 Matrix IR with 100’ IR Range •...
- Page 2 Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Waterproof Cap Hex Wrench Overview Microphone Ethernet connector Micro SD card slot Power connector Reset Mounting base Fixed screw Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor.
- Page 3 Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
- Page 4 Fig. 2 Fig. 2 Rubber Plug Rubber Plug 3. Loosen the lock screws, 3. Loosen the lock screws, then adjust the camera then adjust the camera to obtain the optimium to obtain the optimium viewing angle. Confirm viewing angle. Confirm the correct viewing the correct viewing Lock Screw...
- Page 5 LAN Configuration LAN Configuration Switch Switch Network Cable Network Cable Network Cable Network Cable MENU MENU IP Camera IP Camera Computer Computer Router Router The camera can be accessed on the local network either using the The camera can be accessed on the local network either using the IP-Tool or directly in a web browser.
- Page 6 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X browser to connect IP-CAM .
- Page 7 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. confirm. The IE browser will download Active X control. 3.
- Page 8 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
