Truma Alde Compact 3030 Plus Quick Manual

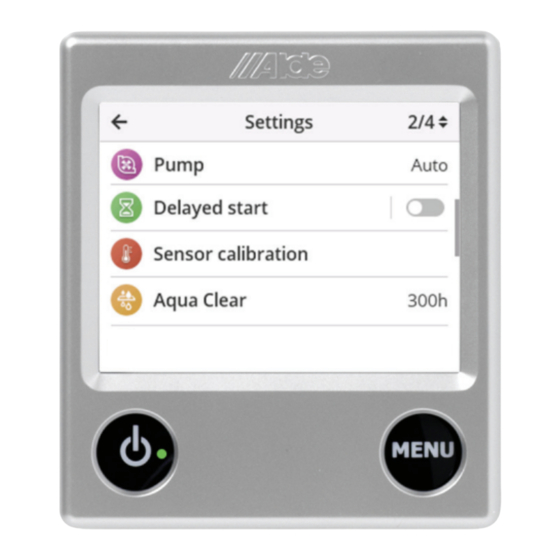

The Settings menu
Press the MENU button to access the setting menus. To change menu, click here.
Night Mode
An intelligent function for optimal comfort around the
clock, all year round that automatically changes select-
ed functions during the night. Choose which days and
between which times Night Mode should be activated.
You can choose to activate these functions:
- Desired night temperature.
- 1-zone: Change temp sensor to bed during the night*.
- 2-zone: Change temp sensor for AC to bed during the
night*.
- Underfloor heating* on or off.
- Hot water demand on or off.
- AC* should run extra quietly.
- The control panel switches to a dark screen to avoid it
"lighting up" your vehicle during the night.
Day Mode
Automatically changes selected functions during the
day. Choose which days and between which times Day
Mode should be activated.
You can choose to activate these functions:
- Desired day temperature.
- Underfloor heating* on or off.
- Hot water demand on or off.
AC*
If you have a Truma AC that is connected to the heating
system, it is possible to control the AC from the control
panel. This function makes it possible to have a fully
automatic climate control where the heating system
and the AC work together. With an outdoor sensor
fitted, comfort is even higher and provides a smoother
transition between heating and cooling.
Underfloor heating*
Turn the underfloor heating on or off. Select continu-
ous operation of the underfloor heating by activating
"Continuous".
Engine pre-heat*
Heat the engine in the motorhome using the Alde heat-
ing system via a heat exchanger and circulation pump.
Start or turn off the function, select the start time and
the engine heating duration.
Pump (only on 1-zone systems)
Choose whether the circulation pump on the boiler
should run automatically or continuously. If a circulation
pump with PWM control is mounted, the speed of the
pump can be controlled in five steps.
Truma Corp
2800 Harman Drive
Elkhart, Indiana 46514 USA
Tel: 1-855-588-7862
info@trumacorp.com • www.truma.com/us
Delayed start, automatic boiler start
Start or turn off the feature, select start and end time.
Set Delayed start and turn off the boiler on On /Off
button. The boiler then starts according to set times.
Sensor calibration
If the temperature that is displayed in the panel does
not correspond to the actual temperature, it can be
adjusted by ±10 °F (±5 °C) in the panel. Also applies to
outdoor temperature sensor.
Display
Select panel brightness: Low, Medium, or High. You
can also choose whether the status screen should be
Normal, Inverted, or Dark. If Dark is selected, the panel
will go dark after 30 seconds and will light up again if
touched.
Sound
Start or turn off button and warning/notification
sounds.
Language
Change the language in the Control Panel menus;
available languages are: English, German and French.
Service
Displays values from the heating system; these are
updated continuously and describe the current status of
the boiler.
System configuration
Here, you will find all accessories or functions that can
be connected to the Alde Heating System; tick the
features that are installed in the heating system so they
can be controlled from the control panel.
Reset
Resets the panel to factory setting. The accessories/
features selected under System Configuration are not
affected.
NOTE! Functions marked with * are optional accessories.
For more detailed information, see the operating
instructions.
