Fluidwell N Series User Manual

Batch controller with numerical keypad and optional receipt printer driver
Hide thumbs Also See for N Series:

Advertisement

Quick Links

Download this manual

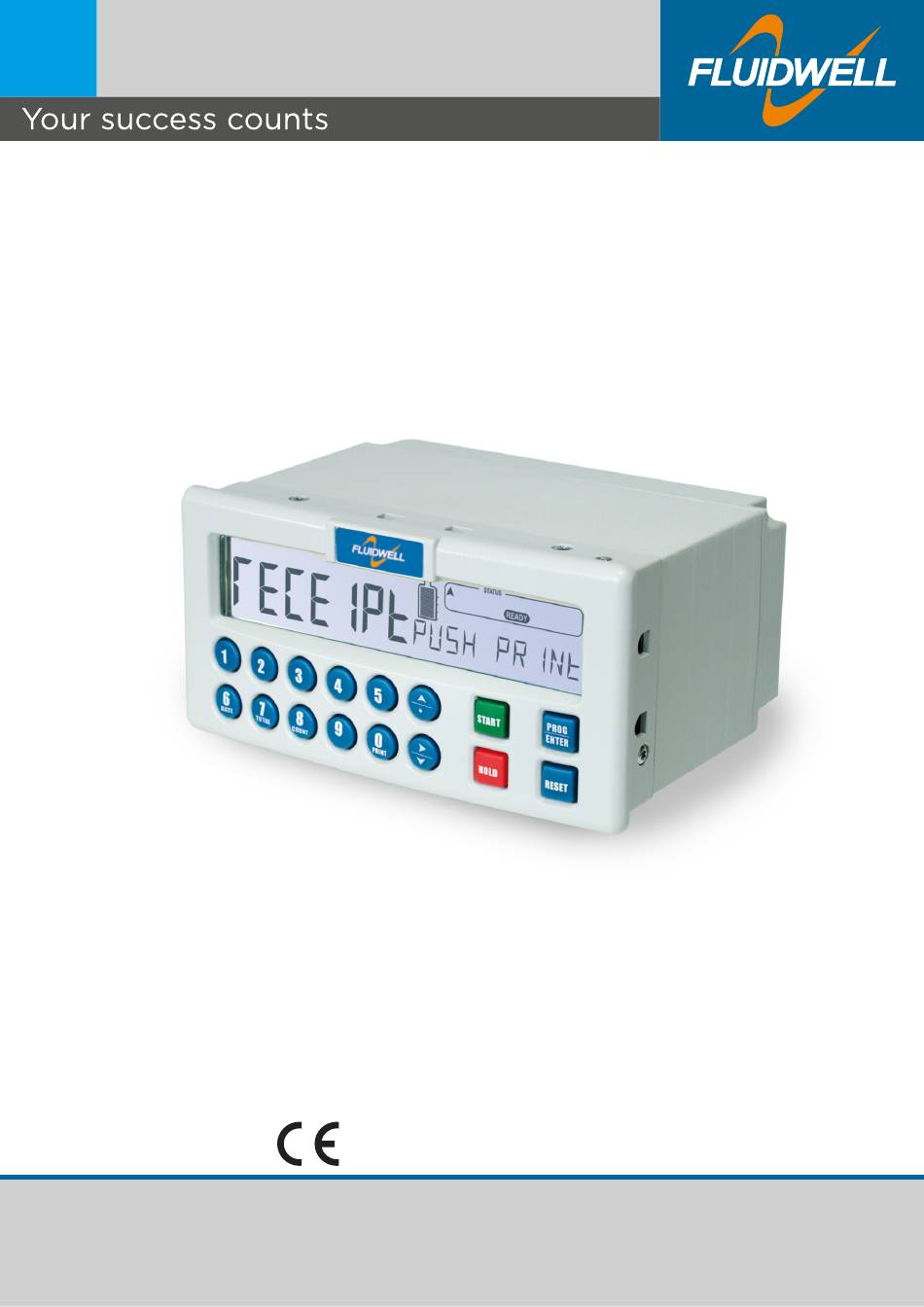

User manual
N413-P
BATCH CONTROLLER
WITH NUMERICAL KEYPAD AND
OPTIONAL RECEIPT PRINTER DRIVER
Signal input:
Pulse, NAMUR or coil flow meter signal
Control inputs:
Five inputs for remote control
Control outputs:
Five outputs to control valves, pumps or alarms
Communication:
Printer interface for receipt printing
N-Series - User friendly batch controllers
More info: www.fluidwell.com/nseries.

Advertisement

loading
Need help?

Need help?

Do you have a question about the N Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fluidwell N Series

Summary of Contents for Fluidwell N Series

  • Page 1 Signal input: Pulse, NAMUR or coil flow meter signal Control inputs: Five inputs for remote control Control outputs: Five outputs to control valves, pumps or alarms Communication: Printer interface for receipt printing N-Series - User friendly batch controllers More info: www.fluidwell.com/nseries.
  • Page 2 User manual N413-P TABLE OF CONTENTS ABOUT THIS MANUAL......................How to use this manual ....................Use of pictograms ......................Warranty and technical support ..................Model Reference ......................SAFETY ............................ Personal safety ....................... End-user responsibilities....................Potential equipment damage ..................Disposal of electronic waste ................... INTRODUCTION........................
  • Page 3 N413-P User manual Terminal connectors ....................... 29 6.5.1 Terminals 1-2: Keyboard lock ..................29 6.5.2 Terminals 3-5: Sensor supply (12 V DC) ................ 30 6.5.3 Terminals 8-12: Remote control ..................30 6.5.4 Terminals 13-16: Digital outputs ..................31 6.5.5 Terminals 22-24: Power supply (110-230 V AC) ............31 6.5.6 Terminals 27-28: Power supply (24 V DC) ..............
  • Page 4 ● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE...
  • Page 5 N413-P User manual SAFETY PERSONAL SAFETY ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy. ● Immediately inform the person responsible for the installation if you disagree with the safety precautions or if you detect errors or danger. END-USER RESPONSIBILITIES ●...
  • Page 6 User manual N413-P INTRODUCTION SYSTEM DESCRIPTION The batch controller model N413-P is a microprocessor-driven instrument designed for batching and filling of small and large quantities, with optional receipt printer driver (Type CB or CH). Fig. 1: The N413-P This manual describes the daily use, configuration and installation of the N413-P with pulse input from a flow meter.
  • Page 7 N413-P User manual ● External receipt printer interface (Type CB, CH). Configuration The N413-P can be used for many types of application and has a SETUP mode to allow for configuring it to your requirements. See for further information. Section 5: Configuration [»14] All settings are stored in an EEPROM memory so they will not be lost if there is a power failure.
  • Page 8 User manual N413-P OPERATION This product may only be operated by authorized and trained personnel who have read and understood this manual, particularly Section 2: Safety [»5] INTRODUCTION This chapter describes the daily use and operation of the N413-P. For this, the N413-P is equipped with a control panel that provides the operator with various functions, information and operating modes.
  • Page 9 N413-P User manual Display and keys – overview STATUS ACTUAL bbllb m USIGALkgton PRESET SETUP PROG BATCH WASH READY HOLD ALARM FLOWRATE ACC.TOTAL PRESET 1. Numerical keys Start/resume key 15. Relay R2 indicator 2. Rate key Reset key 16. Relay R1 indicator 3.
  • Page 10 User manual N413-P PROG/ENTER – key To program and save a new PRESET value or other settings. Also, to gain access to SETUP mode. RESET – key To terminate an interrupted batch process. Also, to accept alarms. OPERATOR INFORMATION AND FUNCTIONS The default mode of the N413-P is the OPERATOR mode.
  • Page 11 N413-P User manual Once the PRESET value is reached, the outputs are switched off and the batch process is ended. A new batch can be started with the same PRESET quantity, or a new PRESET value can be set. If print configuration setting is set to ON CONF(irmation), a new batch cannot be 8.1: PRINTER >...
  • Page 12 The figure below shows an example of a ticket (or receipt) as printed after batching is completed Up to 4 configurable Adjustable headers number of ==================== bla k rows FLUIDWELL Date/timestamp -------------------- of batch delivery Date: /06/24 Time: 12:34:56 Tagnumber...
  • Page 13 N413-P User manual 4.3.3 OTHER DISPLAYED INFORMATION Flowrate indication During batching, the actual flowrate will be displayed after pressing the RATE- key. Press RATE again or wait 20 seconds to return to the main display. Total and accumulated total When the TOTAL- key is pressed once, the (resettable) total will be displayed, with the indication TOTAL.
  • Page 14 User manual N413-P CONFIGURATION INTRODUCTION This chapter describes how technicians can use configuration settings to configure the N413-P for optimal functionality. Configuration is done in SETUP mode, using the front keys. CONFIGURING USING SETUP MODE For an overview of Operating modes, see Section 4.1.1: Operating modes [»8] 5.2.1 ENTERING SETUP MODE...
  • Page 15 N413-P User manual 5.2.3 CHANGING CONFIGURATION SETTINGS A menu item either contains a value (a number with optionally a decimal point and sign, e.g. -123.45) or a selection list (e.g. L – m - USGAL). After a menu item is selected in the SETUP menu, a new value can be programmed by performing the following steps.
  • Page 16 User manual N413-P SETUP MENU OVERVIEW PRESET DEFAULT UNIT L - m3 - USGAL - IGAL - ft3 - bbl - kg - ton - US ton - lb DECIMALS 0 - 3 xxxxxxx MINIMUM MAXIMUM xxxxxxx PRESET xxxxxxx OVERRUN DEFAULT OVERRUN disable - enable...
  • Page 17 N413-P User manual PRINTER DEFAULT PRINT Auto, on confirmation, hand auto HEADER1 [16 alpha-numeric characters] HEADER2 [16 alpha-numeric characters] HEADER3 [16 alpha-numeric characters] HEADER4 [16 alpha-numeric characters] LINETERMINATION CR/LF, CR, LF CR/LF STARTROW 0...9 ENDROW 0...9 FORMFEED Enable, disable disable Y.M.D, D.M.Y, M.D.Y Y.M.D DATEFORMAT...
  • Page 18 User manual N413-P OVERRUN OVERRUN Enables or disables the self-learning overrun correction. Please note that for accurate overrun correction, it is necessary that the flow meter meets certain technical demands such as an adequate resolution, and shows no false overrun due to f.i. slow update time. Overrun correction should not be used when the flow meter is not compatible with this function.
  • Page 19 N413-P User manual 5.4.4 MENU 4: ALARM ALARM NO-FLOW When the sensor signal is zero for a preset time (see 4.2: ALARM > ) while batching, the N413-P can switch off the control FLOWRATE TIME outputs and set the controller in alarm state. This monitoring function can be enabled or disabled with this setting.
  • Page 20 User manual N413-P DISPLAY ID-USER This menu item is only available when is set to SETUP 5.6: DISPLAY > ID-TITLE user def. Please enter the user defined title which will be printed with the ID number on the receipt. The maximum length of the title is 10 (alphanumeric) characters. The procedure to enter the characters is described in Section : Changing configuration settings [»15]...
  • Page 21 N413-P User manual Function of Relay 2 as well as of the Transistor output may be configured independently, with the following functions. ● Off: the output is switched off ● Batch: function equals R1 ● Preclose: used for two-stage control (see also 7.6: CONTROL >...
  • Page 22 User manual N413-P The printer settings of menu 8 Printer relate to the application of an external printer, not part of standard delivery of the N413-P. For proper functionality, this printer must be compatible and should be installed correctly. For more information see your printers’ manual, and Section 6.5.9: Terminals 35-37: Printer [»34] PRINTER...
  • Page 23 N413-P User manual OTHER KEYLOCK With this setting certain keyboard functions can be disabled. Start: locks the START key, a batch cannot be started Hold: locks the HOLD key, interruption of a batch is disabled Control: START and HOLD keys are both disabled Preset: disables setting a preset quantity from the keyboard (see also SETUP 1.5: PRESET >...
  • Page 24 User manual N413-P INSTALLATION ● Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ●...
  • Page 25 N413-P User manual Fig. 9: Example of N-series top label Serial number and year of production The serial number can be reviewed on the top label, or in . The SETUP 9.3: OTHER > SERIAL NUMBER production date is indicated by the first 4 digits of the serial number, representing year and week number (YYWW).
  • Page 26 User manual N413-P 6.3.2 MOUNTING Cabinet cut-out The enclosure must be mounted on a cabinet or panel. Take care to add enough space between two or more controllers. Maximum panel thickness is 6 mm (1/4”). min. 138 +/- 0.5 mm 30 mm 5.43 +/- 0.2")
  • Page 27 N413-P User manual ELECTRICAL INSTALLATION First consult the table with limiting environmental conditions and safety parameters in Section 6.1: Installation / environmental conditions [»24] HIGH VOLTAGE 230 V, combined with relays up to 400 V Be sure that all the leads to the terminals are disconnected from the N413-P when the plastic protection cover has been removed.
  • Page 28 User manual N413-P Fig. 13: Protective earth (PE) connection 6.4.3 FIELD WIRING CONNECTIONS ● Do ground the aluminum enclosure properly with a PE wire as indicated to the Protective Earth terminal. It is the responsibility of the installer to install, connect and test the Protective Earth connections in accordance with the local and (inter)national Rules and Regulations.
  • Page 29 N413-P User manual 8.2 V DC 12 V DC 24 V DC Fig. 14: Jumper positions sensor supply voltage selection Jumper setting Sensor supply voltage 8.2 V DC 12 V DC 24 V DC Terminal 31: Reference voltage 1.2 or 3 V DC Terminal 31 provides a reference voltage for low power sensors: coil or reed switch.
  • Page 30 User manual N413-P 2 KEY LOCK 1 GND Common ground unit Fig. 16: Terminals 1-2: Keyboard lock 6.5.2 TERMINALS 3-5: SENSOR SUPPLY (12 V DC) With terminal 5, 12 V DC is available for powering the sensor. Maximum current is 30 mA. Please note that signal output from the sensor should be connected to terminal 30, and that terminal 4 is not in use.
  • Page 31 N413-P User manual Terminal 11 (Reset) can also be used to block the batch process. As long as this input is connected to ground (terminal 8) it is not possible to start a batch. Alarm When terminal 12 (Alarm) is connected to ground (terminal 8), a running batch will be interrupted immediately, and the process is blocked until the alarm status is reset.
  • Page 32 User manual N413-P 28 + 24 V DC 24 V DC 27 GND Common ground unit Fig. 21: Terminals 27-28: Power 24 V DC 6.5.7 TERMINAL 29: SENSOR SUPPLY (8.2 - 12 - 24 V DC) Terminal 29 offers a selectable sensor supply with a maximum power consumption of 50 mA @ 24 V DC.
  • Page 33 N413-P User manual The N413-P can be connected to a flowmeter with a reed output signal. With SETUP 6.1: FLOW METER > a low-pass filter can be applied to the signal line. SIGNAL Terminal 31 offers a low-power 3 V DC voltage. Please read Section : Sensor supply [»29] 32 GND Common ground unit...
  • Page 34 User manual N413-P 32 GND Common ground unit 31 (not used) Sensor 30 Signal Shield Fig. 27: Terminals 30-32: Active pulse signal input – example with external sensor supply A flow meter with PNP pulse output can be used with the N413-P. For reliable pulse detection, pulse amplitude has to go above 1.2 V.
  • Page 35 N413-P User manual 6.5.10 TERMINALS 42-44: CONTROL OUTPUT (R1) Control output R1 is used for controlling the main batching pump or valve. This output is switched ‘on’ (connecting terminal 42 with 43, and disconnecting terminal 43 from 44) during the whole batch process (see ).
  • Page 36 User manual N413-P MAINTENANCE GENERAL DIRECTIONS ● Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ●...
  • Page 37 N413-P User manual APPENDIX A - TECHNICAL SPECIFICATION GENERAL DISPLAY Type High intensity reflective numeric and alphanumeric LCD with adjustable backlight, UV-resistant. Digits 7 with height 14 mm (0.56”) and 10 with height 8 mm (0.3”). Various symbols and measuring units.
  • Page 38 User manual N413-P DIRECTIVES AND STANDARDS EN 61010-1 EN 61000-6-2 EN 61000-6-3 EN 61326-1 FCC 47 CFR part 15 RoHS EN 50581 EN IEC 63000 IP & TYPE EN 60529 NEMA 250 Note See the applicable Declaration of Conformity for specific revisions and publication dates of applicable standards.
  • Page 39 N413-P User manual OPERATIONAL OPERATOR FUNCTIONS Process management Enter preset value ● Start, interrupt and stop batch process ● Displayed information Preset value ● Actual batched quantity or remaining quantity ● Total ● Accumulated total ● Flowrate ● Batch counter ●...
  • Page 40 User manual N413-P APPENDIX B - TROUBLESHOOTING Table 1 lists and describes how to troubleshoot problems that can occur when installing or operating the N413-P. Table 2 lists internal alarm codes and conditions signaled by a blinking ALARM flag on the display ALARM PROG ).
  • Page 41 DECLARATION OF CONFORMITY EU De cla tio n of Conformi Fluidwell N‒Series indicators he , May 2024 We, Fluidwell BV, declare under our s e ol respons ibility that the N‒Series indicators are de igne d and will operate conform the followi...
  • Page 42 User manual N413-P LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: PRESET UNIT DECIMALS MINIMUM MAXIMUM PRESET OVERRUN OVERRUN disable TIME SETTLE FLOWRATE UNIT TIME DECIMALS CALCULATION CUT-OFF 30.0 ALARM NO-FLOW disable FLOWRATE TIME DISPLAY DISPLAY increase TANK enable LIGHT 100% DIMMER 100%...
  • Page 43 N413-P User manual PRINTER PRINT auto HEADER1 HEADER2 HEADER3 HEADER4 LINETERMINATION CR/LF STARTROW ENDROW FORMFEED disable DATEFORMAT Y.M.D TOTAL print SPEED 9600 OTHER MODEL N413-P SOFTWARE VERSION 03.06.xx SERIAL NUMBER xxxxxxx TIME 00:00:00 DATE 01.01.01 PASSWORD 0000 KEYLOCK TAG-NR FW_N413-P_M_v0301-01_EN Page 43...
  • Page 44 Fluidwell bv P.O. Box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives the Netherlands the Netherlands © Copyright 2024 - FW_N413-P_M_v0301-01_EN...
