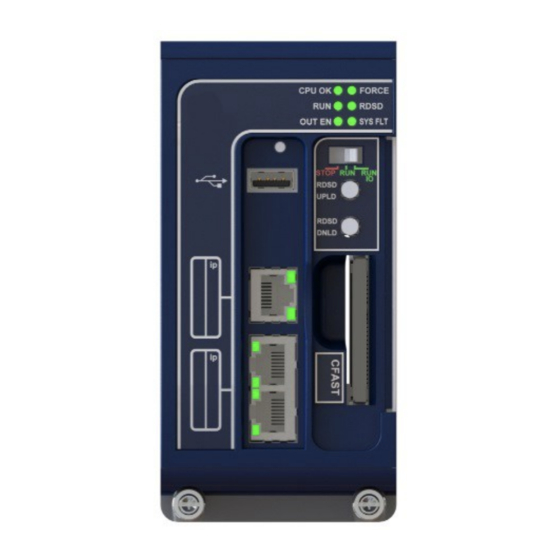

Emerson PACSystems RX3i CPE330 Quick Start Manual
Emerson PACSystems RX3i CPE330 Quick Start Manual

Emerson PACSystems RX3i CPE330 Quick Start Manual

64 mb cpu w/ethernet

Advertisement

Quick Links

PACSystems™ RX3i 64 MB CPU
w/Ethernet IC695CPE330 Quick
Start Guide
GFK-2941M
Dec 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the PACSystems RX3i CPE330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emerson PACSystems RX3i CPE330

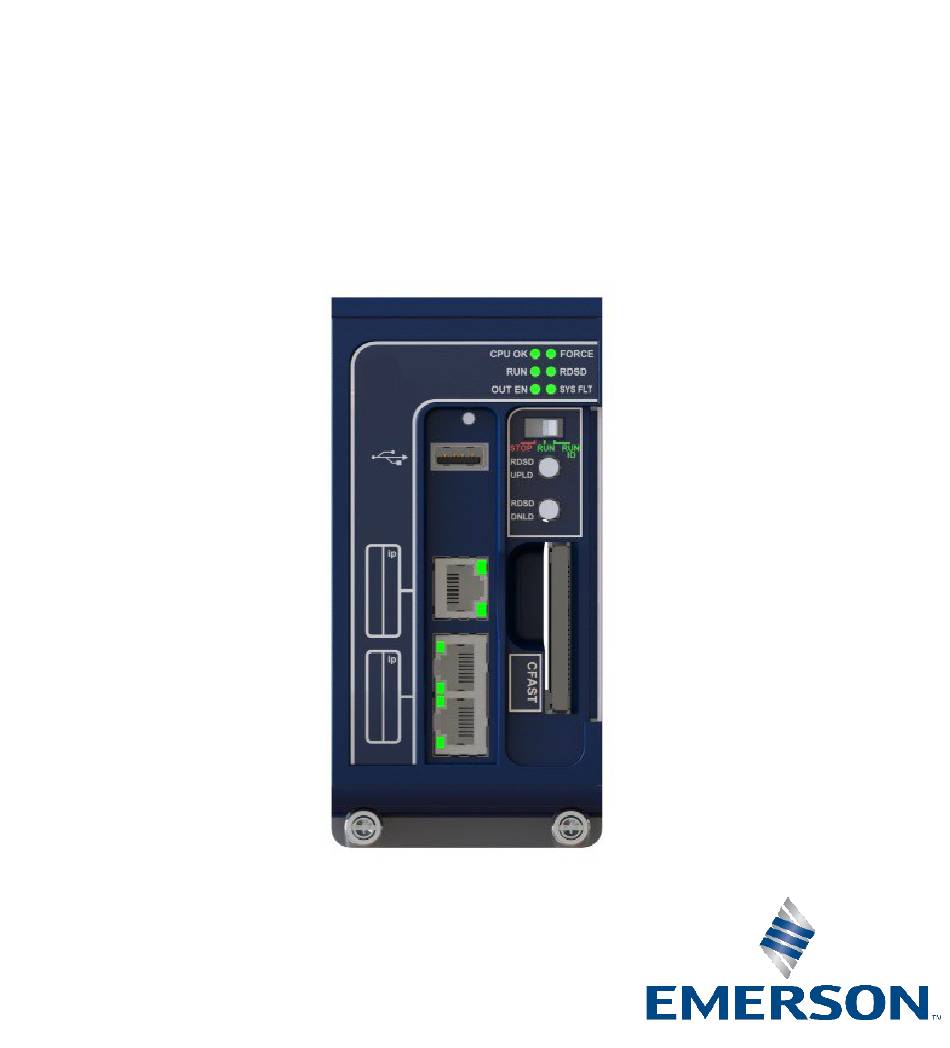

  • Page 1 PACSystems™ RX3i 64 MB CPU w/Ethernet IC695CPE330 Quick Start Guide GFK-2941M Dec 2024...
  • Page 3 Contents User Features................1 Switches ..................3 Light-Emitting Diode Indicators (LEDs) ..........5 Module Identification LED Pattern ..............7 Ethernet Ports .....................8 Hardware Installation ..............11 Initial Checks.....................11 Installation Location ..................11 Installation in Hazardous Areas ...............12 Class 1 Division 2 Groups ABCD ..............12 ATEX Zone 2 ....................13 Grounding ......................13 Module Start-up................14...
  • Page 5 User Features The PACSystems™ RX3i CPE330 is a richly f eatured programmable controller CPU equipped with 64 Mbytes of built-in program memory and two independent high-speed Ethernet interfaces. It is ideally suited f or multi-tier communications and for synchronizing large amounts of data.
  • Page 6 ▪ Enabled simplex PROFINET I/O controller with support for up to 32 I/O devices and update rates of 1 – 512 ms. I/O device update rates of 8 ms and faster are possible with 16 or fewer devices. When there are more than 16 devices configured, update rates of 16 ms and higher are available.
  • Page 7 ▪ Supports programming in Ladder Diagram, Structured Text, Function Block Diagram, or C. ▪ Contains 64 Mbytes of configurable data and program memory. ▪ Supports auto-located Symbolic Variables that can use any amount of user memory. ▪ Contains reference tables include 32k bits for discrete %I and %Q and up to 32k words each for analog %AI and %AQ.
  • Page 8 f unction of this switch can be disabled separately in HWC. The memory protection f unctionality is disabled by def ault. RDSD Function Pushbuttons RDSD UPLD Loads user program or data f rom CPU to RDSD. RDSD DNLD Stores user program or data f rom RDSD to CPU. A three-position switch which operates as Run/Stop follows:...
  • Page 9 Light-Emitting Diode Indicators (LEDs) LED State Operating State CPU has passed its power-up diagnostics Green and is f unctioning properly. (After initialization sequence is complete.) Of f Power is not applied, or CPU has a problem, which may be indicated by blink pattern.
  • Page 10 LED State Operating State CPU is in Run mode. Green Of f CPU is in Stop mode. Output scan is enabled. Green Of f Output scan is disabled. FORC Override is active on a bit ref erence. Amber Of f No Overrides active in I/O Ref erence Tables.
  • Page 11 CPE330 Ethernet Indicators LED State Operating State LINK The corresponding link is physically (upper) Green connected. Blinking Traf f ic is detected at the corresponding Green port. No connection detected at corresponding Of f port. 1Gbps Corresponding network data speed is 1 (lower) Amber Gbps.
  • Page 12 PROFINET DCP Identify Device command which is available using the PAC Machine Edition Discovery Tool by refreshing the device list, double clicking on the CPE330 row, and pressing the Identify Device button on the Device Properties pop-up window. The pattern on the CPE330 is: This circular 1Hz cycle is repeated until the Identify Device command is stopped.
  • Page 13 To establish Ethernet communications between PME and the CPE, Emerson recommends inserting an ETM with a known IP address into the rack to store a hardware conf iguration f or the CPE330 with the desired IP address.
  • Page 14 CPE330 LAN1 CPE330 LAN2 IP Address: 192.168.0.100 10.10.0.100 Subnet 255.255.255.0 255.255.255.0 Mask: Gateway: 0.0.0.0 0.0.0.0 Figure 1: Typical Multi-Tier LAN Application A typical application will take advantage of the two independent LANs. The dedicated LAN1 port will be used f or communications with plant- level or supervisory layers.
  • Page 15 As the consignee, it is your responsibility to register a claim with the carrier f or damage incurred during shipment. Emerson Automation Solutions will fully cooperate with you, however, should such action be necessary.
  • Page 16 accessible to users) and must be installed in an ultimate enclosure that is manuf actured to provide saf ety. At a minimum, the enclosure shall provide a degree of protection against solid objects as small as 12mm (e.g. f ingers). This equates to a NEMA/UL Type 1 enclosure or an IEC60529 IP20 rating providing at least a pollution degree 2 environment.
  • Page 17 WARNING • WARNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION • WARNING - EXPLOSION HAZARD - WHEN IN HAZARDOUS AREAS, TURN OFF POWER BEFORE REPLACING OR WIRING MODULES. ATEX Zone 2 This module must be mounted in an enclosure certif ied in accordance with EN60079-15 f or use in Zone 2, Group IIC and rated IP54.
  • Page 18 Module Start-up You Will Need: ▪ An RX3i Universal Backplane: IC695CHS007, IC695CHS012 or IC695CHS016. ▪ This PACSystems RX3i CPU. This CPU occupies two backplane slots. ▪ An RX3i rack-mounted Power Supply Module and compatible power source or DC). ▪ A computer running PAC Machine Edition (PME) configuration and programming software.
  • Page 19 Basic Installation Steps For startup and conf iguration of the CPE330, complete the f ollowing steps. For f ull details on CPE330 operation, ref er to the PACSystems RX3i & RSTi-EP CPU Reference Manual, GFK-2222 or later. 1. Turn power of f at the RX3i rack and install the CPE330 in a double-slot which is CPU-compatible (refer to PACSystems RX3i System Manual, GFK-2314 Chapter 3).
  • Page 20 6. Using a Phillip’s head screwdriver, secure the two captive M3 x 5 mm machine screws into the matching threaded holes in the backplate of the RX3i I/O rack. The two screws are located at the bottom rear of the CPU module. Tighten. 7.
  • Page 21 PROFINET Controller Configuration PAC Machine Edition 8.60 SIM 13, PME 9.00 SIM 4 or later may be used to conf igure an Embedded PROFINET Controller in the CPE330 Hardware Conf iguration on LAN 2. To enable the PROFINET Controller in a CPE330 project, select the CPE330 target in the PME Navigator and open the Hardware Conf iguration.
  • Page 22 Hold down the RDSD UPLD button and turn power on to the CPE330. Continue to depress the RDSD UPLD button until the CPE330 powers up and displays one of the following patterns on the LEDs. CPU Status Indicators CPE330 LED State Operating State CPU OK On Amber...
  • Page 23 normal startup procedures with the new setting. The setting is maintained over a power cycle and firmware upgrade. Note that with versions of PME that do not have native CPE330 support, only CPU320 projects can be stored to CPE330s that are in Normal (CPU320) compatibility mode and only CRU320 projects can be stored to CPE330s that are in CRU320 compatibility mode.
  • Page 24 Removable Data Storage Device (RDSD) The CPE330 user program and/or memory contents may be saved to a USB device via the RDSD UPLD pushbutton or loaded into the CPU f rom a USB device via the RDSD DNLD pushbutton. Similarly, data can be selected and saved.
  • Page 25 Figure 2). Over time, this battery will need to be replaced. No action is required during initial installation. Should the RTC battery fail, the CPU date and time will be reset to 12:00 AM, 01-01-2011 at start-up. The CPU operates normally with a f ailed or missing RTC battery;...
  • Page 26 Figure 2: RTC Battery There are no diagnostics or indicators to monitor RTC battery status. The RTC battery has an estimated life of 5 years and must be replaced every 5 years on a periodic maintenance schedule. For complete procedure, ref er to Replacement of Real-Time Clock Battery on CPE330 in PACSystems RX3i, &...
  • Page 27 Additional Information PAC Logic Developer-PLC Getting Started GFK-1918 PACSystems RX3i & RSTi-EP CPU Reference Manual GFK-2222 PACSystems RX3i & RSTi-EP TCP/IP Ethernet Communications GFK-2224 User’s Manual PACSystems TCP/IP Ethernet Communications Station Manager GFK-2225 Manual PACSystems RX3i System Manual GFK-2314 PACSystems RXi, RX3i & RSTi-EP Controller Secure Deployment GFK-2830 Guide PACSystems RX3i Energy Pack IC695ACC402 Quick Start Guide...
  • Page 28 Contact Information and Support Questions? We are here to help. Register for a Search our Open a Support Customer Knowledge Base Ticket Account pacsystems.co/ pacsystems.co/ pacsystems.co/support knowledge signup Customer Center Commercial Contact Home Page Website Information pacsystems.co/ pacsystems.co/ pacsystems.co/ customercenter commercial contactus...
