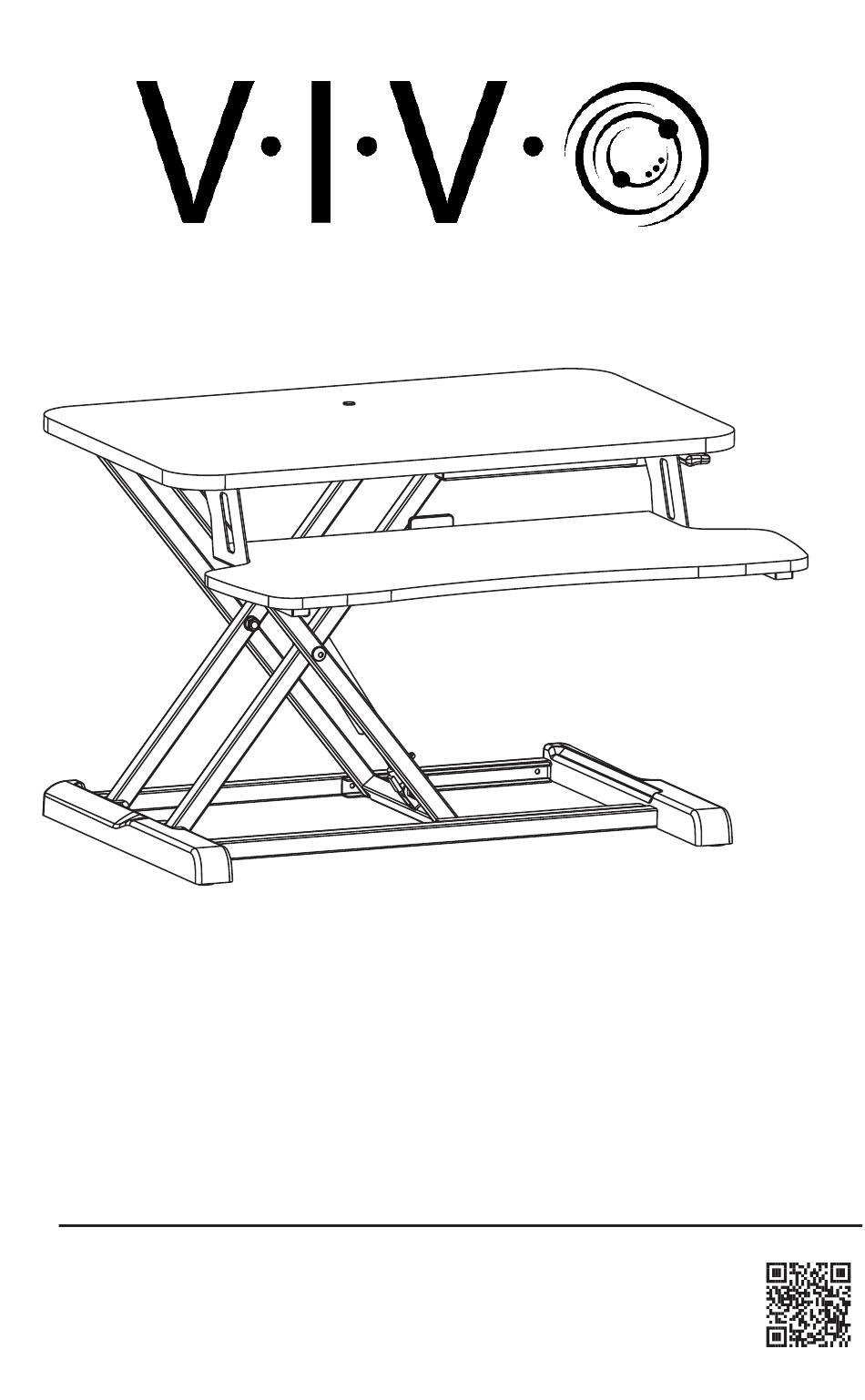

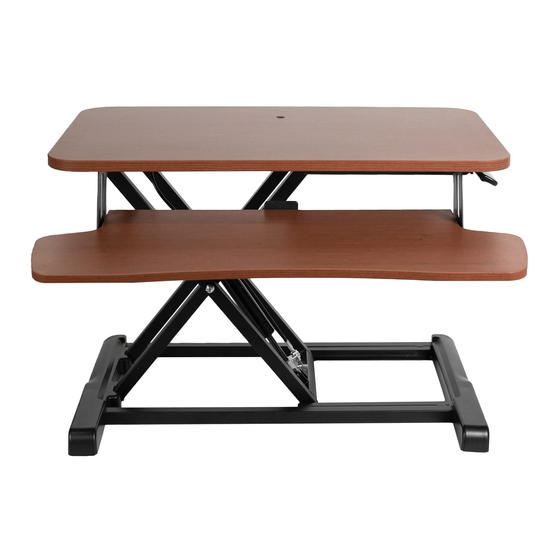

- Page 1 Desk Riser SKU: DESK-V026KB SERIES DESK-V026KB DESK-V026KG DESK-V026KA DESK-V026KN DESK-V026KF DESK-V026KW Instruction Manual Assembly Video & Product Info https://vivo-us.com/products/desk-v000k...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 STEP 3 ASSEMBLY STEPS Raise Desk (A) by lifting the handle on the right side of the frame. STEP 1 Apply Pads (D) to underside of Keyboard Tray (B). Assemble Stopper (C) to Kayboard Tray (B) using ST4.2x12mm Screws (S-A) and a Phillips screwdriver. Place Keyboard Tray (B) on the metal brackets on Desk (A).
- Page 4 GROMMET MOUNT USE STEP 4 This desk riser features a pre-drilled grommet hole for installing a monitor mount directly to desk Apply Cable Clips (F) to underside of Desk (A). surface. To utilize this feature, your will need to remove the plug from the top surface of the riser. Secure your mount using a grommet mounting method, using the hardware and assembly steps from Desk riser is now ready for use your monitor mount.
- Page 5 TENSION CONT’D TENSION ADJUSTMENT Option A: If your desk riser lifts up or down too easily, or is too difficult, the gas spring cable can be adjusted to Desk Is Difficult to Raise/Lower | Increase Tension your desired tension. The adjustment is located at the base of your riser. If the desk feels difficult to raise and lower, you will need to increase the Gas Spring Cable tension.
- Page 6 TENSION CONT’D CAUTION! Option B: Desk Raises/Lowers Too Easily | Decrease Tension If the desk is raising or lowering without the handle being pressed, the tension will need loosened. Gently push the cable down towards the base of the riser until the Upper Nut (1) is firmly pressed against the middle divider.
- Page 7 LAST UPDATED: 10/16/2023 REV2 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
