Softing CableMaster 210 Manual

CableMaster 210 Manual
CONTENT
Specifications, warnings
Display and symbol description
Operation instructions
WIRING AND DISPLAY EXAMPLES
Properly wired T568A/B UTP
Split, Short, Open
Crossed
MAINTENANCE
CUSTOMER SERVICE
Contacting Softing IT Networks
Warranty
WARNINGS
• To ensure safe operation and service of the tester, follow these instructions. Failure to observe these warnings can result in severe injury or death.
• The CableMaster 210 is designed for use on unenergized cabling systems. Connecting the CableMaster 210 to live AC power may damage it
and pose a safety hazard for the user.
• Poorly terminated RJ plugs have the potential to damage the jack on the CableMaster 210. Visually inspect an RJ plug before inserting it into
the tester. The contacts should always be recessed into the plastic housing of the plug. Plugging 6, 4 and 2-position plugs into the 8-position
jack on the tester has the potential to damage the outer-most contacts of the jack unless the plug is specifically designed for that purpose.

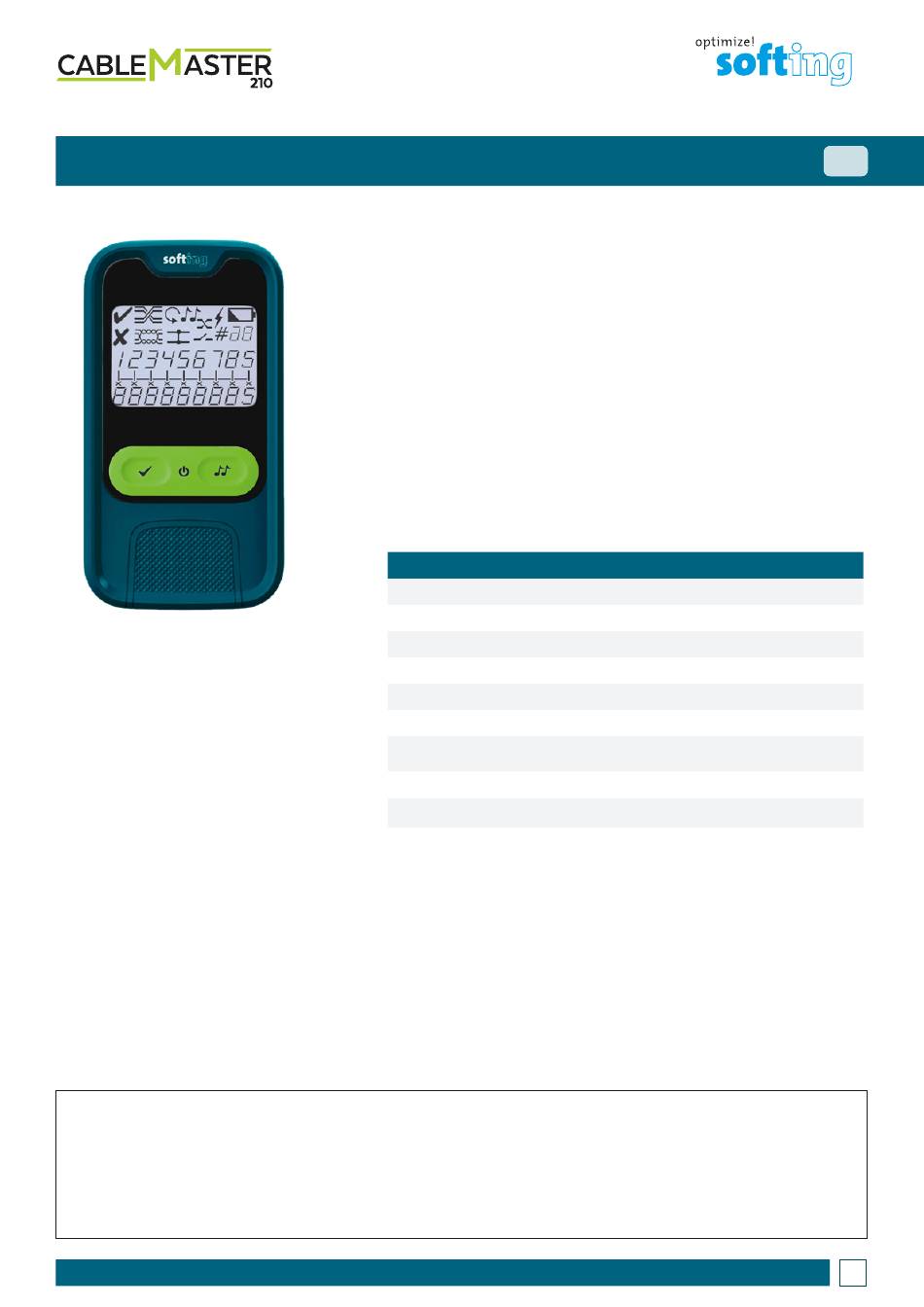

CableMaster 210 Manual
• RJ45 port
• Large, backlit LCD display with all test information,
including PASS/FAIL indication
• Very easy operation via dedicated function keys
• Display of cable faults
• Removable remote unit attached in the bottom
• Continuous Autotest capability
• Test of cables up to 304m in length
• Built in tone generator – can be used for cable tracking with
a cable probe (Art.-No. 226007)
• Compact size
• Overvoltage protection up to 60V DC and 55V AC
TECHNI CAL SPECI F ICAT IO NS
Size
Weight with Battery
Power Supply
Voltage protection
Operating temperature
Storage temperature
Humidity
1
Maximum cable length
2
3
Wiremap
4
Test port
4
4
4
5
6
6
6
120 x 67 x 28mm
120g
2 x 1.5V AAA Alkaline
60V DC, 55V AC
-10 – +50°C
-20 – +60°C
10% – 80%, non-condensing
300m
according to ISO11801, EN50173, TIA568
RJ45 port
EN
1
