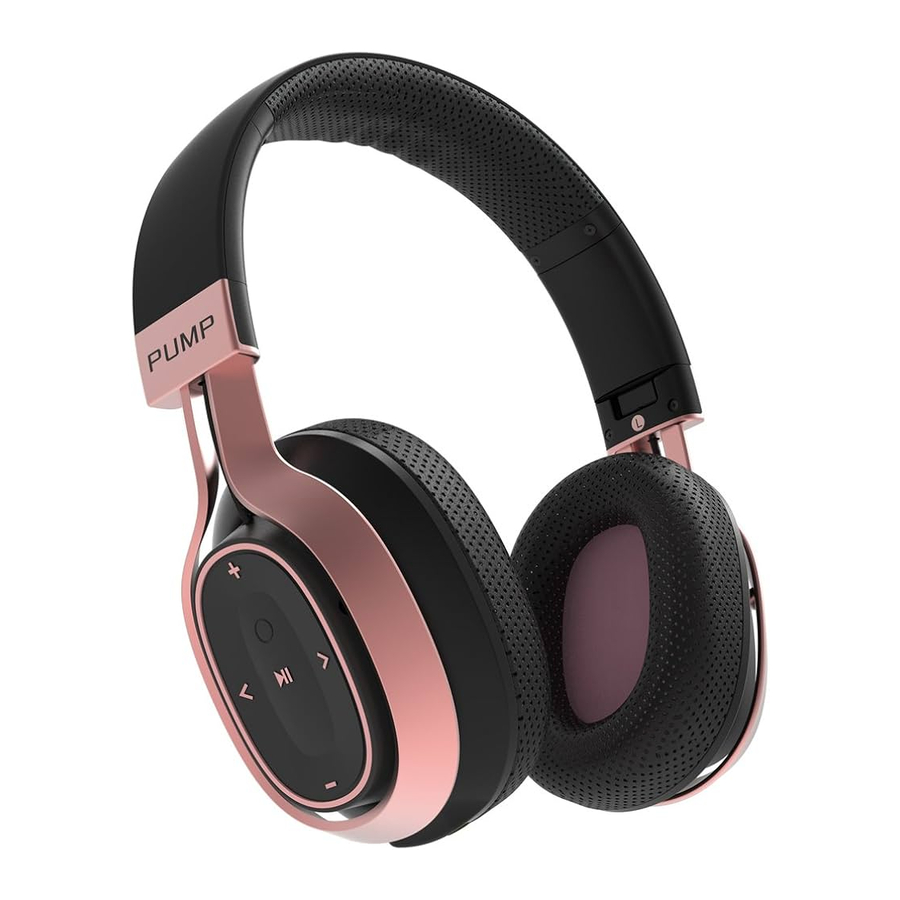

BlueAnt Pump Zone Manual

Overview

CHARGE

To charge, plug the supplied LISB cable into the PUMP ZONE and the other end into a charger or computer, 5V/1A.

• Light flashing red 2 times every 2 seconds — charge required.
• Light blue - charge complete.

PAIR

1. Make sure the headphones are powered off.
2. Press and hold the multifunction button for 5 seconds,
3. Search for devices on your phone.
4. Select the BlueAnt Pump Zone.
5. If prompted. enter the PIN 0000 an your Phone.

If your phone supports NFC can use this to pair: power on the Zone and then hold phone against the outside nf the left earpieoe where the NFC logo is. Your phone should prompt you to pair the Bluetooth device. Select Yes and the Zone and phone will connect.

LISTEN

TALK

WIRED AUDIO

Connect audio line in cable to 3.5mm audio jack for wired music playback.
The phone call features cannot be used i this mode.

IPHONE

• The PUMP ZONE features an iPhone battery meter; this displays the battery level of your PUMP ZONE.

POWER

Hold MULTIFUNCTION BUTTON 2s. Light flashes blue times.

Hold MULTIFUNCTION BUTTON 3s. Light flashes red 2 times.

CLEANING YOUR PUMP ZONE

• Instructions for cleaning your PUMP ZONE.
  After using your PUMP ZONE, please simply click the ear cups off, wipe with a non-alcohol based wipe & let air dry.
  Once your ear cups are dry, click back into place.


Important Safety Information

PLEASE READ THIS ENTIRE DOCUMENT CAREFULLY, BECAUSE IT CONTAINS IMPORTANT INFORMATION ABOUT THE SAFE USE OF BLUEANT DEVICES

PROTECT YOUR HEARING
BLUEANT DEVICES CAN REACH VOLUMES ABOVE 100 DECIBELS.
PROLONGED USE AT HIGH VOLUMES MAY AFFECT YOUR HEARING CAPACITY AND MAY RESULT IN NOISE INDUCED HEARING LOSS (NIHL).
TURN OFF THE POWER TO YOUR DEVICE WHEN NOT IN USE.
Please ensure that the device and any associated components such as ear gels or chargers, are stored safely and that any packaging or unwanted contents are disposed of thoughtfully. Do not place the product on the floor or leave it in a place, where young children could access it, or someone could trip over it.

Using Ear Gels

Your BlueAnt earbuds will come with ear gels or foam tips that are designed to provide a secure fit in your ear, while providing high quality audio

• Ear gels and tips are designed to sit comfortably in your ear and should not be forced into your ear at any time. If you have trouble fitting the ear gel or foam, please refer to the owner's manual for correct insertion and usage information.
• Always make sure that the ear gel or foam is fitted securely to your device, before placing it in your ear.

NOTE THAT NON-COMPLIANCE, MISUSE OR FORCING THE EAR GEL OR FOAM MAY CAUSE DAMAGE TO YOUR EAR CANAL EARDRUM, OR MAY OTHERWISE CAUSE BODILY HARM

Smart Practices While Driving
Check the laws and regulations on the use of mobile devices and accessories such as your BlueAnt device in the areas where you drive. Always obey them. DO NOT USE MOBILE DEVICES AND ACCESSORIES IN AREAS WHERE THEIR USE IS PROHIBITED. ENSURE THAT YOUR USE COMPLIES WITH ANY RESTRICTIONS.
Your BlueAnt device lets you communicate by voice when wireless service is available and safe conditions allow. When driving a car, driving is your first responsibility.
If you choose to use your Bluetooth device while driving, remember the following tips:

• Get to know your BlueAnt device and its features such as speed dial and redial. These features help you to place your call without taking your attention off the road.
• If you receive an incoming call at an inconvenient time, let your voicemail answer it for you.
• Let the person you are speaking to know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice, and heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while driving, Remember that your primary responsibility is driving safely.
• Do not engage in stressful or emotional conversations that may be distracting.
  Make people you are talking to aware you are driving and suspend conversations that can divert your attention away from the road.
• In the case of fire, traffic accidents, medical or other serious emergencies, dial the local emergency number.
• Call roadside assistance or a special non-emergency wireless assistance number when necessary.

Care and Handling

Your BlueAnt Bluetooth device is a precision engineered instrument. To ensure its ongoing performance, you should look after it as you would any quality consumer electronic product, and use it in accordance with the instructions.
BlueAnt recommends that you take the following precautions.

• Avoid leaving your device in direct sunlight, such as on the dashboard or console of a car or truck. Do not leave your device unattended in your vehicle.
• Do not leave your device, or use your device, in any area where the temperature may exceed 60 degrees Centigrade (140 degrees Fahrenheit), such as inside a closed car on a hot day. Remember that on a hot day, the temperature inside a closed car may be significantly higher than the outside air temperature.
• On not leave your device, or use your device, in any area where the temperature is likely to drop below degrees Centigrade (32 degrees Fahrenheit).
• Do not leave your device, or use your device, in any area exposed to humidity, dust, soot, other foreign objects, smoke, or steam as this may cause your device to malfunction.
• Do not use any household or industrial grade detergents or cleaners to clean your device, If your device becomes dirty or smeared, in most instances a wipe with a dry or slightly damp cloth should be sufficient to clean it.
• Do not leave your Bluetooth device plugged into a wall or car charger for long periods after it is fully charged. BlueAnt does not recommend long periods of continued charging,
• Before charging your BlueAnt device, make sure that the AC outlet, adaptor and cable are not damaged, If you notice any abnormalities, seek advice from a qualified professional.
• If traveling internationally, ensure that your BlueAnt wall or car power adapter is approved for use in the country where you plan to use it and that the adapter voltage is suited to the local power supply.
• Should a fault develop with your BlueAnt product, contact BlueAnt for advice on how to proceed.
  Do not attempt to repair or alter any BlueAnt product yourself.

Approved Accessories

The use of accessories not approved by BlueAnt, including but not limited to batteries, antennas, wall adapters, car chargers, ear gels, foam tips and convertible covers, may cause your BlueAnt device to malfunction, or in the case of non-approved electrical accessories, may cause the device to exceed RF energy exposure guidelines. Use only 5V/1A chargers.
Use of non approved accessories will void your device's warranty. For a list of approved BlueAnt accessories, visit our website www.blueantwireless.com

SUPPORT

For help and support visit: support.blueantwireless.com
Register your ZONE for updates:
register.blueantwireless.com
By using this product you agree to the terms and conditions listed on the BlueAnt website:
www.blueantwireless.com
For warranty and technical support please www.blueantwireless.com or call 1300 689 049
BlueAnt Wireless,
1-7 Weston St, Brunswick. Victoria, 3056, Australia
