BlueAnt Pump Air Ultra Manual

Table of Contents

Contents

1 Inside the box
2 Get to know your Pump Air Ultra
3 Charging your Pump Air Ultra
4 Let's Get Started
- 4.1 Pairing
- 4.2 Fit
5 Button Functions
6 Buds Lost Connection? You'll need a factory reset
7 Power
8 Support
9 Sweatproof
10 Important Safety Information
11 HELP & SUPPORT
12 Documents / Resources
- 12.1 References
- 12.2 Download manual

Inside the box

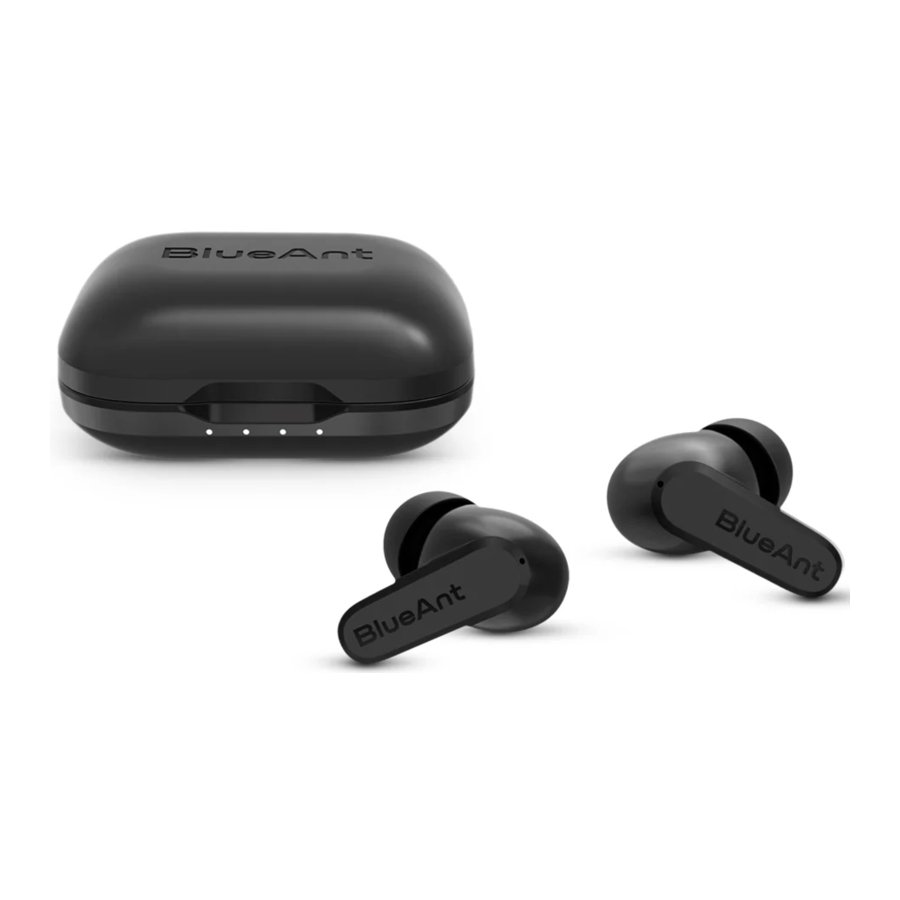

Get to know your Pump Air Ultra

Item	Function
1	Charging Case LED Lights
2	Charging Port
3	Multifunctional (MFB) / Cormmand Button
4	Earbud LED
5	Magnetic Charging Pins
6	Microphones

Charging your Pump Air Ultra

Open the charging case
Place earbuds in case
Close the lid

Use the supplied charging cable. Please only use 5V/IA chargers.

The Pump Air Ultra takes 2 hours for a full charge.

The Pump Air ultra charging case, takes 2 hours for a full charge. You can also wirelessly charge the charging case by placing it on a compatible Qi charging 3-5W charging is supported. The charging case should charge the earbuds 4 times.

The charging case has 4 lights. These signify the charge level of the charging case.
1 light 25%, 2 lights 50%, 3 lights 100%
The 4 LED lights will turn off once fully charged. Unplug the charging case.
The charging case battery level indicator light urns on, when you remove or replace the earbuds in the charging case, to let you know the charge level of the charging case.
The earbuds have a light that lights up when it's charging, The earbuds turn off when fully charged. The earbuds may charge at different rates for left and right sides.

Let's Get Started

Pairing

In order to get started using the Pump Air Ultram we need to pair it to your phone.

Remove both earbuds from the charging case, and put them in your ears.
After a few seconds, they will play a sound in each ear, to let you know that both are connected.
When the earbuds turn on for the first time, it will go into pairing mode.
Now search your phone far 'BlueAnt Pump Air Ultra' and pair.
The earbuds will auto-reconnect to your phone whenever you take it cut of the charging case and power off when you it back in.

If you need to pair with another phone, press and hold the right hand side command button, to power off the earbuds.
Then let go of the button, then press and hold the button for 5s until you hear the earbud saying, 'Pair Me'.
Repeat the pairing process the new phone.

Fit

To ensure the best sound, you need the best fit. Having the best fit creates a seal and enhances the bass performance.

This diagram shows how the earbuds should sit in your ear:

There are 3 sizes of ComfortSealTips - Small, Medium and Large.

Ta get the most cut of the earbuds, it's best to try out each af the sizes to get the best fit.

Button Functions

Active Noise Cancellation (ANC)

ANC - Single tap on Left earbud {default)

Transparency - Single tap on Left earbud

Music

Tap Right earbud once to Play/Pause

Double tap the Right earbud to Skip Forevard

Double tap Left earbud to Skip Back

Call Control

Tap MFB once on either earbud to answer a call

Double tap MFB on either earbud to end a call

Press & hold either earbud to reject a call

Siri/Googte

CIick NFB 3 times on either earbuds to Activate/Cancel Siri/Googte

Volume

When music is playing or on call

Press and hold the MFB on the Right earbud to increase volume

Press and hold the MFP on the Left earbud to decrease volume

Buds Lost Connection? You'll need a factory reset

Buds Lost Connection - Factory reset

Power

When you remove the earbuds from the charging case, they will automatically power on, and try to connect to the last phone they were connected to.
When you replace the earbuds in the charging case, they will automatically power off and disconnect from the connected phore.
To power on without the charging case, press and hold the MFB for 2s. To power off without the charging case, press and hold the right earbud MFB for 6s.
To pair without the charging case from off, press and hold the MFB on ane earbud for 5s, and then pair with your phone. Then press and hold the MFB on the other earbud for 2s to power on.

The earbuds announces when the battery is low, when there s about 20 mins of play time left.
The earbuds features an iPhone battery meter.
Mono Operation: It is possible to use the earbuds as a mono headset. Simply remove one of the earbuds from the charging case.

Support

For help and support visit support.blueantwireles.com

Register your Pump Air Ultra for updates: register.blueantwireless.com
By using this product you agree to the terms and conditions listed nn the BlueAnt website: www.blueantwireless.com

Sweatproof

Ther Pump Air Ultra earbuds are IP54 sweatproof, while the charging case is not. Please take care to avoid moisture and liquids, entering the charging case.

Important Safety Information

WARNING - PROTECT YOUR HEARING
BLUEANT DEVICES CAN REACH VOLUMES ABOVE 100 DECIBELS.

PLEASE READ THIS ENTIRE DOCUMENT CAREFULLY, BECAUSE IT CONTAINS IMPORTANT INFORMATION ABOUT THE SAFE USE OF BLUEANT DEVICES

ONLY CHARGE WHEN DEVICE IS CLEAN AND DRY

warning PROLONGED USE AT HIGH VOLUMES MAY AFFECT YOUR HEARING CAPACITY AND MAY RESULT IN NOISE INDUCED HEARING LOSS (NIHL).
TURN OFF THE POWER TO YOUR DEVICE WHEN NOT IN USE.

Please ensure that the device and any associated components such as ear gels or chargers. are stored safely and that any packaging or unwanted contents are disposed of thoughtfully. Do not place the product the floor or leave it in e place, where young children could access it. or someone could tap over it.

Using Ear Gels

Your BlueAnt headset will come with eargels or foam tips that designed to provide a secure fit your ear, while providing high quality audio.

Ear gels and tips are designed to sit comfortably in your ear and should not be forced into your ear at any time. lf you have trouble fitting the ear gel or foam please refer to the owner's manual for correct insertion and usage information.

Always make sure that the ear gel or foam is fitted securely to your device before placing it in your ear.

NOTE THAT NON- COMPLIANCE, MISUSE OR FORCING THE EAR GEL OR FOAM MAY CAUSE DAMAGE TO YOUR EAR CANAL OR EARDRUM, OR MAY OTHERWISE CAUSE BODILY HARM.

Care and Handling

Your BlueAnt Bluetooth device is a precision engineered instrument. To ensure its ongoing performance, you should look after it as you would any quality consumer electronic product, and use it in accordance with the instructions.

BlueAnt recommends that you take the following precautions.

Avoid leaving your device in direct sunlight, such as on dashboard or console of a car or truck. Do not leave your device unattended in your vehicle.
Do not leave your device, or use your device, in any area where the temperature may exceed 45 degrees Centigrade [113 degrees Fahrenheit], such as inside a closed car on a hot day. Remember that on a hot day, the temperature inside a closed car may be significantly higher than the outside air temperature.
Do ot leave your device, or use your device, in any area exposed to humidity, dust, soot, other foreign objects, smoke, or steam as this may cause your device o malfunction.
Do not use any household or industrial grade detergents or cleaners to clean your device. If your device becomes dirty or smeared, in most instances a wipe with a dry or slightly damp cloth should be sufficient to clean it.
Do not leave your Bluetooth device plugged into a wall or car charger for long periods after it is fully charged. BlueAnt does not recommend long periods of continued charging.
Before charging your BlueAnt, make sure that the AC outlet, adaptor and cable are not damaged. If you notice any abnormalities, seek advice from a qualified professional.
If traveling internationally, ensure that your BlueAnt wall or car power adapter is approved for use in the country where you plan to use it and that the adapter voltage is suited to the local power supply.
Should a fault develop with your BlueAnt product, contact BlueAnt for advice on how to proceed. Do not attempt to repair or alter any BlueAnt product yourself.

Approved Accessories

The use of accessories not approved hy BlueAnt, including but not limited to batteries, antennas, wall adapters, car chargers, ear gels, foam tips and convertible covers, may cause your BlueAnt device to malfunction, or in the case of non-approved electrical accessories may cause the device to exceed RF energy exposure guidelines. Use only 5V/1A chargers.

Use of non approved accessories will void your device's warranty. For a list of approved BlueAnt accessories, visit our website at: www.blueantwireless.com
