BlueAnt Pump Air ANC Manual

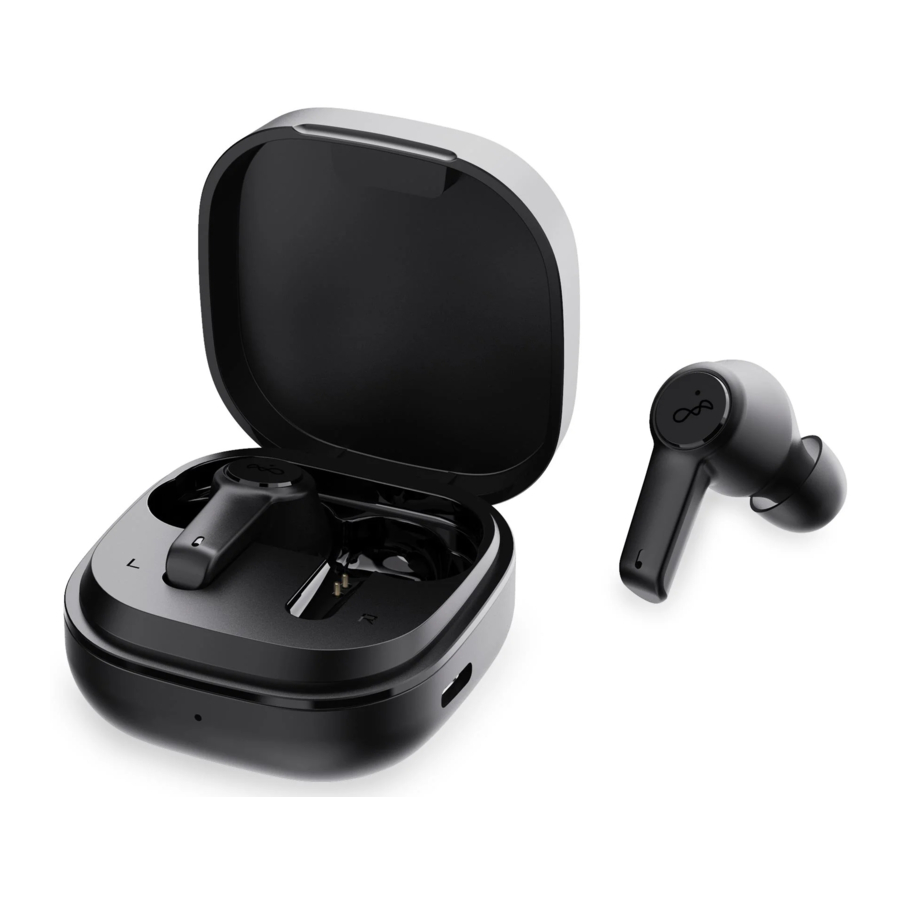

Inside the box

Get to know your Pump Air ANC

1. Charging Case LED Light
2. Charging Port
3. Multifunctional (MFB)/Command Button
4. Earbud LED
5. Magnetic Charging Pin
6. Earphone Mic

Charging your Pump Air ANC

1. Open the charging case

2. Place earbuds In case

3. Close the lid


Use the supplied charging cable. Please use only 5V/1A chargers.

The Pump Air ANC takes 2 hours for a full charge.

The Pump Air ANC charging case, takes 2 hours for a full charge. The charging case should charge the earbuds 4 times.

• The charging case has 1 light with 3 colors. These signify the charge 12veI Of the charging case.
• Below 10% light will stay on ed for 10s
  10%-50% light will stay on yellow for 10s
  50%-100% light will stay on green for 10s
  After a full charge the light will turn off.
  Please unplug the charging case.
• When the earbuds power on and connect with your device. they will announce High, Medium or Low battery level. When low, please recharge the earbuds by placing them in the case.
• To charge the earbuds, put the earbuds in the charging case.
  The LEO on earbuds will turn blue.
  When fully charged the light will turn off.

Let's Get Started

Pairing

In order to Set started using the Pump Air ANC, we need to pair it to your phone.

1. Please remove both earbuds from the charging case. and put them in your ears,
2. After a few seconds, they will play a sound in each ear, to let you know that both are connected.
3. When the ear buds power on for the first timer hey will go into paring mode.
4. Now search your phone for "BlueAnt Pump Air ANC" and pair.
5. The earbuds will auto-reconnect to your phone whenever you take it out of the charging case, and power off when you put it back in.

If you need to pair with another phone, press and hold the right hand side command button, to power off the earbuds. Then let go of the button, then press and hold the button for 5 seconds until you hear the earbud saying, 'Bluetooth pairing'. Repeat the pairing process on the new phone.

Fit

To ensure the best sound, you need the best fit. Having the best fit creates a seal and enhances the bass performance.

The diagram on the right, is how the earbuds should sit in your ear.
There are 3 sizes of ComfortSeal Tips - Small, Medium and Large.

To get the most out of the earbuds, it's best to try out each of the sizes to get the best fit.

Button Functions

Active Noise Cancellation (ANC)

	ANC - Single tap on Left earbud (default)
	Transparency - Single tap on Left earbud
	ANC & Transparency Off - Single tap on Left earbud

Music

	Tap Right earbud once to Play/Pause
	Double tap the Right earbud to Skip Forward
	Double tap Left earbud to Skip Back

Call Control

Tap MFB once on either earbud to Answer/End Call

Press and hold MFB on either earbud to Reject Call

Siri/Google

Tap MFB on Right earbud three times to Activate/Cancel Siri/Google

Volume
When music is playing or on a call

	Press and hold the MFB on the Right earbud to increase volume
	Press and hold the MFB on the Left earbud to decrease volume

Power

1. When you take the ear buds from the charging case, they will automatically power on and try to reconnect to the last phone they were connected to.

2. When you replace the ear buds in the charging case they will automatically power off and disconnect from the connected phone.

3. To power on without the charging case, press and hold the MFB for 2 seconds.
   To power off without the charging case, press and hold the right earbud MFB for 6 seconds.

4. To pair without the charging case from off, press and hold the right earbud MFB for seconds, and then pair with your phone. Then press and hold the left earbud MFB for 2 seconds to power it on.
   • The earbuds announces when the battery is low, when there is about 30 mins of play time left.
   • The earbuds features an iPhone battery meter.
   • Mono Operation: It is possible to use the earbuds as a mono headset. Simply remove one of the earbuds from the charging case.

Troubleshooting your Pump Air ANC

If you have purchased a new ear bud after losing one or find that your left and right ear buds have become disconnected please follow the instructions below to reconnect the left and right ear buds.
Please delete any pairing from your phone and turn bluetooth off on your phone.
Place the Pump Air ANC earbuds into the charging case and close the lid.
Leave the earbuds in the charging case with the lid closed for at least 15 seconds.
Now remove both ear buds from the charging case.
Please place the ear buds next to each other and wait for 15 seconds.
The earbuds will now pair to each other.
Once they are connected to each other the left ear buds led will turn solid blue and the right earbuds will flash signifying it is in pairing mode.
On your phone re-enable bluetooth and pair to the Pump Air ANC.

Sweatproof

The Pump Air ANC earbuds are sweatproof, while the charging case is not. Please take care to avoid moisture and liquids, entering the charging case.

Important Safety Information

PLEASE READ THIS ENTIRE DOCUMENT CAREFULLY, BECAUSE IT CONTAINS IMPORTANT INFORMATION ABOUT THE SAFE USE OF BLUEANT DEVICES
ONLY CHARGE WHEN DEVICE IS CLEAN AND DRY

PROTECT YOUR HEARING
BLUEANT DEVICES CAN REACH VOLUMES ABOVE 100 DECIBELS.
PROLONGED USE AT HIGH VOLUMES MAY AFFECT YOUR HEARING CAPACITY AND MAY RESULT IN NOISE INDUCED HEARING LOSS (NIHL).
TURN OFF THE POWER TO YOUR DEVICE WHEN NOT IN USE.
Please ensure that the device and any associated components such as ear gels or chargers, are stored safely and that any packaging or unwanted contents are disposed of thoughtfully. Do not place the product on the floor or leave it in a place, where young children could access it, or someone could trip over it

Using Ear Gels

Your BlueAnt earbuds will come with ear gels or foam tips that are designed to provide a secure fit in your ear, while providing high quality audio

• Ear gels and tips are designed to sit comfortably in your ear and should not be forced into your ear at any time. If you have trouble fitting the ear gel or foam, please refer to the owner's manual for correct insertion and usage information.

Always make sure that the ear gel or foam is fitted securely to your device, before placing it in your ear.

NOTE THAT NON COMPLIANCE, MISUSE OR FORCING THE EAR GEL OR FOAM MAY CAUSE DAMAGE TO YOUR EAR CANAL EARDRUM, OR MAY OTHERWISE CAUSE BODILY HARM

Care and Handling

Your BlueAnt Bluetooth device is a precision engineered instrument. To ensure its ongoing performance, you should look after it as you would any quality consumer electronic product, and use it in accordance with the instructions.
BlueAnt recommends that you take the following precautions.

• Avoid leaving your device in direct sunlight, such as on the dashboard or console of a car or truck. Do not leave your device unattended in your vehicle.
• Do not leave your device, or use your device, in any area where the temperature may exceed 60 degrees Centigrade (140 degrees Fahrenheit), such as inside a closed car on a hot day. Remember that on a hot day, the temperature inside a closed car may be significantly higher than the outside air temperature.
• Do not leave your device, or use your device, in any area exposed to humidity, dust, soot, other foreign objects, smoke, or steam as this may cause your device to malfunction.
• Do not use any household or industrial grade detergents or cleaners to clean your device. If your device becomes dirty or smeared, in most instances, a wipe with a dry or slightly damp cloth should be sufficient to clean it.
• Do not leave your Bluetooth device, plugged into a wall or car charger for long periods after it is fully charged. BlueAnt does not recommend long periods of continued charging.
• Before charging your BlueAnt device, make sure that the AC outlet, adaptor and cable are not damaged. If you notice any abnormalities, seek advice from a qualified professional.
• If travelling internationally, ensure that your BlueAnt wall or car power adapter is approved for use in the country where you plan to use it and that the adapter voltage is suited to the local power supply.
• Should a fault develop with your BlueAnt product, contact BlueAnt for advice on how to proceed. Do not attempt to repair or alter any BlueAnt product yourself.

Approved Accessories

The use of accessories not approved by BlueAnt, including but not limited to batteries, antennas, wall adapters, car chargers, ear gels, foam tips and convertible covers, may cause your BlueAnt device to malfunction, or in the case of nonapproved electrical accessories, may cause the device to exceed RF energy exposure guidelines. Use only 5V/1A chargers.
Use of non approved accessories will void your device's warranty. For a list of approved BlueAnt accessories, visit our website www.blueantwireless.com

HELP & SUPPORT

Visit support.blueantwireless.com
Email: care@blueantwireless.com
Call: 1300 669 049
Register your BlueAnt product for warranty and new product updates at:
register.blueantwireless.com
www.blueantwireless.com
