Bluetti EB55 Manual

Safety Instructions

Read this manual for instructions on the proper use and safety information for the unit. Follow the warnings and instructions marked on the unit and its accessories.
Pay attention to the "Instruction", "Caution", "Warning" and "Danger" symbols in this manual, and follow the instructions carefully to avoid injury or damage.
The Safety Requirements provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards.
If you have any questions, feel free to contact BLUETTI support or your local BLUETTI dealers.

General Safety

• Always operate or store the unit in the conditions specified in this manual.
• The installation and ambient conditions must comply with the regulations in the relevant international, national or regional standards.
• Unauthorized disassembly, alteration of the equipment or modification of the software code is not allowed.

BLUETTI shall not be liable for the following circumstances:

• Equipment damage caused by force majeure, such as earthquake, fire, storm, flood, mudslide, etc.
• Damage or loss during transportation.
• Damage caused by storage conditions that do not meet the requirements specified in this manual.
• Damage to the hardware or data of the equipment due to customer negligence, improper operation or intentional damage.
• Damage to the system caused by a third party or the customer, including handling and installation that does not meet the requirements specified in this manual.
• This product is not suitable for providing electrical service for equipment and machines that are highly dependent on the reliability of electrical power supply and that involve personal safety, such as atomic energy, aviation, medical, etc. Poweroak will not be held responsible for any personal safety accidents, fire accidents, equipment failures, etc. caused by using this product to supply power to the above equipment and machines.
• Damage caused by adjustment, alteration or removal of identification marks.

To avoid danger, please regulate the operation in the following manner:

• Do not install, use and maintain the unit in adverse weather conditions such as lightning, rain, snow and strong breezes (including but not limited to handling and operating the unit, plugging and unplugging signal connections to outdoor facilities, working at height, outdoor installations, etc.).
• Always turn off the power source before starting any electrical work.
• Do not clean the unit with water.
• Do not disassemble, modify, tamper with or repair the unit on your own.
• Regularly inspect the unit and its accessories for damage or deterioration.
• Use a tester to check for the presence of dangerous voltage before touching any conductor or terminal.
• If the unit's shell is cracked during transportation or use, do not use it and contact BLUETTI support or your local BLUETTI dealers.
• Use a dry powder extinguisher if the unit catches fire.
• In case of fire, EVACUATE the building or affected area immediately, activate the closest FIRE ALARM system and CALL 9-1-1 or your local emergency phone number.
• Use genuine cables and accessories provided by BLUETTI.
• Keep the unit away from heat sources or high temperatures, and do not expose it to direct sunlight.
• Do not store the unit with flammable liquids, gases, or explosive materials.
• Make sure the area where you are using the unit is well ventilated and spacious.
• Do not block or cover the vents of the unit as this may cause irreversible damage to it.
• Use the unit for its intended purpose and avoid stacking objects on top of it during storage or use.
• Do not move the unit during operation as the vibrations and shocks associated with movement may cause damage to the internal hardware.
• In case of malfunction, turn off the unit immediately and contact BLUETTI support or your local BLUETTI dealers if this manual cannot adequately explain the malfunction to you.
• Do not place the unit on an unstable or inclined surface.
• Do not insert foreign objects into any port and vent of the unit.
• Keep away from children and pets.

Handling

Use mechanical assistance as needed (e.g. trolleys and adjustable height workbenches).
Recommended number of people based on the weight of product

Storage and usage

• When not using the unit for over 3 months, charge it to 40% to 60% SoC to keep it in optimal condition.
• Before storing the unit, power it off and remove all electrical connections from it.
• Store the unit in a cool and dry place. The ideal temperature range is 10°C to 30°C. The unit can be safely charged and discharged at temperatures of -20°C to 40°C. However, it's NOT recommended to store the unit in harsh temperatures for extended periods of time.
• Fully cycle the unit every 6 months to maintain the battery's health.

If the SoC drops to 0 (during operation or upon startup), take the following actions to safely restart the unit:

1. Shut down immediately.
2. Charging within 48 hours.
3. Battery should be kept at an ambient temperature of 5°C to 35°C for 24 hours before charging.

It is recommended to charge the unit via an AC source. If charging via solar energy, ensure that your solar system provides an output of more than 100W.
BLUETTI shall not be liable for any equipment damage caused by the violation of above instructions.

What's In The Box

Standard Packaging

Optional

* Below accessories are not included in standard packaging and can be purchased separately at https://www.bluettipower.com/
Note:
All measurements are for reference only.
Package details are subject to change without prior notice.

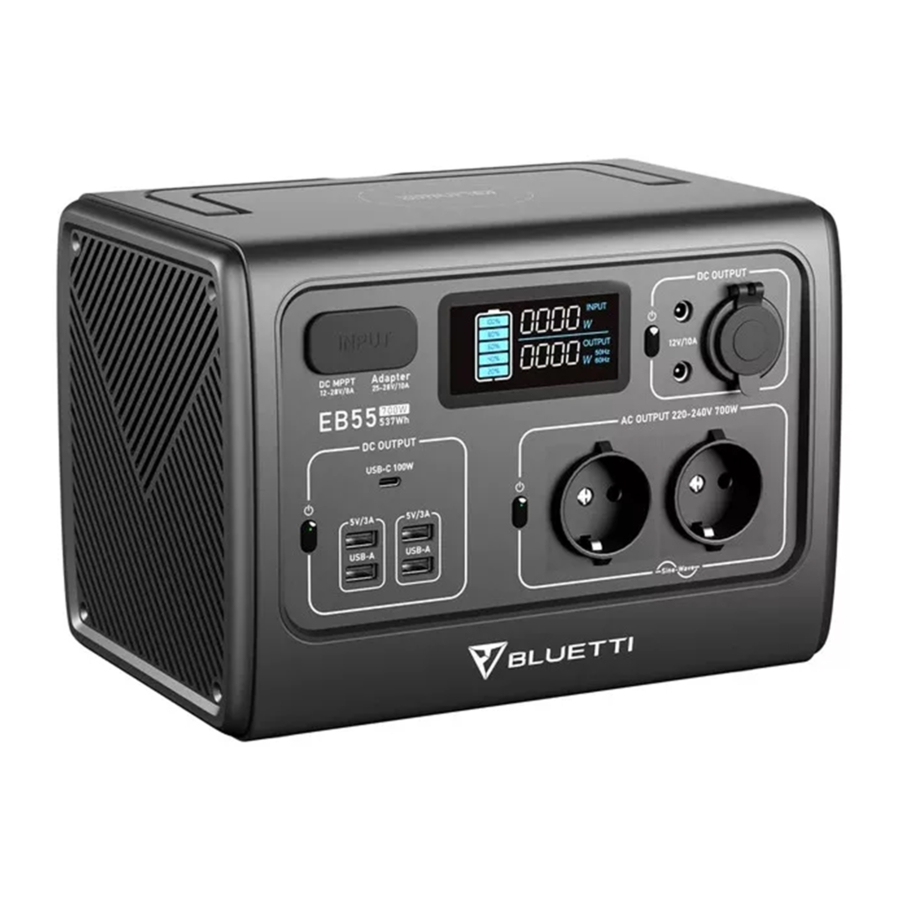

Product Overview

Diagram

1. DC Input
2. Adapter Input
3. LCD Screen
4. Wireless Charging Pad
5. DC 12V Power Button
6. DC5521 Port
7. Cigarette Lighter Port
8. DC Power Button
9. USB-A Port
10. USB-C Port
11. AC Power Button
12. AC Output

Specifications

Operation

LCD Screen

1. ECO Mode
2. Battery Level
3. Input Power
4. Low-battery Alert
5. Temperature Anomaly Alert
6. Output Power
7. Overload Alert
8. Short-circuit Alert

Powering On/Off

Powering on: Press the AC/DC/DC 12V Power Button to start up corresponding output.

* The LCD screen is on for 30-60 seconds. Please enable at least one of these ports (AC/DC/DC 12V) if you want the display to stay on longer.
Note: Please turn on the DC power to enable the wireless charging.

Powering off: Press and hold power buttons to shut down corresponding output.

Mode

Setting Mode: When the AC power is off, press AC and DC power buttons simultaneously and the frequency indicator flashes.
ECO Mode^[1]: Under 'Setting Mode', press the DC power button to turn it on/off.

Setting

AC Frequency^[2]: Under 'Setting Mode', press the AC power button to switch.

1. In this mode, the AC/DC output will automatically turn off after 4-hour low(≤10W for AC, ≤1W for DC) or 1 no load to save power.
2. AC Frequency: The number of alternating cycles per second in an AC sine wave. The utility frequency in US is usually 60Hz.

Charging

AC Charging

Simply plug the EB55 into a standard wall outlet and start charging.

PV Charging

Connect the solar panels (in series or parallel) to EB55 via the solar charging cable.
Note:
Please make sure your solar panels comply with:
OCV^[3]: 12-28V
Vmp^[4]: 12-28V
Input Power: 200W Max

E.g.
Use one BLUETTI PV200 solar panel to charge the unit.
BLUETTI PV200:
Voc=26.1V
Vmp=20.5V
Current= 9.7A Max.

3. OCV: Open circuit voltage, also for Voc. The maximum voltage that the solar panel can produce with no load on it.
4. Vmp: Voltage at maximum power. The voltage available when the panel is operating at its peak performance output.

Car Charging

Connect the EB55 directly to the vehicle plug-in cigarette lighter port via the car charging cable.

Generator Charging

Connect the AC adapter input plug to the generator while the output plug goes to the adapter charging port of EB55.

Dual Charging

EB55 also supports dual charging (e.g. Adapter + PV Charging and Dual Adapter Charging^[5]).

5. An extra adapter (200W AC Adapter + DC7909-XT60 Female Cable) is needed for Dual Adapter Charging.

Discharging

537Wh × DoD × η ÷ (load power) = charging time (estimated)
Note:
DoD refers to the Depth of Discharge, η is the local inverter efficiency. DoD=90%, η =90%.
DoD may vary depending on ambient-operating temperature and discharge rate.
Load power and charging time are measured in Watt and Hour.

FAQs (Frequently Asked Questions)

Q: How do I know whether my devices will work well with this product?
A: Please evaluate the total constant load of your appliances. If it doesn't exceed the Max. output power of EB55, you can use this power station to charge.

Q: Can I use third-party solar panels to charge this product?
A: Yes, you can. As long as the specs of solar panels you're using fall in the range below:
OCV & Vmp: 12-28V
Input Power: 200W Max.
With the same power connector (MC4)
DO NOT mix different types of solar panels.

Q: How can I charge this EB55 by dual adapter charging?
A: An extra adapter (200W AC Adapter + DC7909-XT60 Female Cable) is needed to connect to the DC input port.

Q: Is there a button to turn on/off the wireless charging?
A: Yes. Press the DC Power Button to enable the wireless charging.

Q: Can it charge and discharge at the same time?
A: Yes. It supports pass-through charging. EB55 comes with the premium LiFePO4 battery and proprietary Battery Management System to ensure that it can charge and discharge at the same time.
