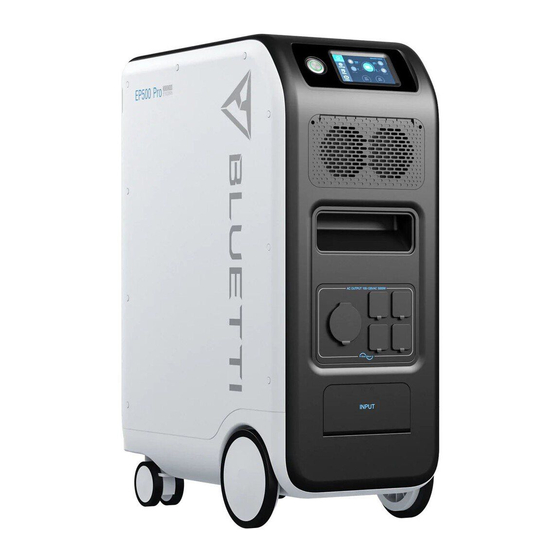

How to connect the EP500 Pro to
the US utility power.
https:// bluettipower.com/ technical support /10220705
Associated product(s):EP500 Pro
Entry type: FAQ, Entry ID: 10220703, Entry date: 07/30/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP500 Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Bluetti EP500 Pro

  • Page 1 How to connect the EP500 Pro to the US utility power. https:// bluettipower.com/ technical support /10220705 Associated product(s):EP500 Pro Entry type: FAQ, Entry ID: 10220703, Entry date: 07/30/2022...
  • Page 2: Table Of Contents

    Contents How to connect one EP500 Pro to the utility power for 120 Volt Circuits..............................2 How to connect two EP500 Pro to the utility power for 240 Volt Circuits ..............................4 Accessories: ....................................................14 Transfer switch .................................................. 14 NEMA L14-30R inlet Box ..............................................
  • Page 3 How to connect the EP500 Pro to the US utility power Then installed by the electrician refer to the example as below:...
  • Page 4: How To Connect Two Ep500 Pro To The Utility Power For 240 Volt Circuits

    2. How to connect two EP500 Pro to the utility power for 240 Volt Circuits If you purchased two EP500 Pro to get the back-up power for household as 240 Volt Circuits. Firstly, please purchase a manual transfer switch and the accessories as following:...
  • Page 5 How to connect the EP500 Pro to the US utility power Note: (1) Please disconnect the AC charging cable for both EP500Pro units while binding into split phase box. (2) Certificated Technician is required to build the split phase system to power the Power Cabinet or Sub Panel.
  • Page 6 How to connect the EP500 Pro to the US utility power Step7: Click the “single phase” of the Machine Type setting, then click the “Split phase” Step8: Click the “Master” Step 9: Turn on another EP500 pro. Step10: Click the setting button on the LCD.
  • Page 7 How to connect the EP500 Pro to the US utility power Step12: Click the “Slave” Note: click clear the alarm history if the buzzer sounded NOTE: Select "Master" will set the operating EP500Pro as the one to control both two EP500Pro. Select "Slave" will set the operating EP500Pro as the other EP500Pro as the "Master" one.
  • Page 8 How to connect the EP500 Pro to the US utility power...
  • Page 9 How to connect the EP500 Pro to the US utility power WRONG CONNECTION It`s forbidden to connect EP500Pro into Split Phase System when AC charging is ON, please use AC Input Cable(Optional Purchase) to charge both of your power stations in Split Phase System. Wrong Connection will damage the battery inside the power station and your warranty will be invalid.
  • Page 10 How to connect the EP500 Pro to the US utility power Please installed by the electrician refer to the example as below:...
  • Page 11 How to connect the EP500 Pro to the US utility power The circuit connection example as below:...
  • Page 12 How to connect the EP500 Pro to the US utility power If you didn’t purchase the FUSION BOX, Please installed by the electrician refer to the example as below:...
  • Page 13 How to connect the EP500 Pro to the US utility power The circuit connection example as below:...
  • Page 14: Accessories

    How to connect the EP500 Pro to the US utility power 3. Accessories: 3.1 Transfer switch a) If you want to get 6-circuit,please purchase a manual transfer switch as following: https://www.amazon.com/30-Amp-6-Circuit-Manual-Transfer-Switch/dp/B00X7VVVTS/ref=asc_df_B00X7VVVTS/?tag=hyprod- 20&linkCode=df0&hvadid=309788238907&hvpos=&hvnetw=g&hvrand=14413753645099096762&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=1013962&hvtargid=pla -570657575965&psc=1 If you want to get 10-circuit,please purchase a manual transfer switch as following:...
  • Page 15: Nema L14-30R Inlet Box

    How to connect the EP500 Pro to the US utility power NEMA L14-30R inlet Box NEMA L14-30 connect to the transfer switch, plug the L14-30R of the L14 extension cord. https://www.amazon.com/Reliance-Controls-Corporation-PB30-Generators/dp/B000BQT47S/ref=pd_bxgy_img_sccl_1/142-1707139- 6977663?pd_rd_w=8wVnX&content-id=amzn1.sym.7757a8b5-874e-4a67-9d85-54ed32f01737&pf_rd_p=7757a8b5-874e-4a67-9d85- 54ed32f01737&pf_rd_r=FF4D3M7RGM6JJEM7AVJ2&pd_rd_wg=K9W0F&pd_rd_r=ef64e305-ec59-4a2c-baf7-5874507a8b5e&pd_rd_i=B000BQT47S&th=1 3.3 NEMA L14 extension cord: If you want to get 10 FT NEMA L14 extension cord , the referenced purchase address as following https://www.amazon.com/VOGREX-Generator-Extension-L14-30P-L14-...
  • Page 16: Bluetti 30A-Ac-Charging-Cable

    How to connect the EP500 Pro to the US utility power 3.4 BLUETTI 30A-AC-charging-cable If you purchase two EP500 Pro to get 240V, you need to purchase one 30A AC Charging Cable for split-phase function Purchase address: https://www.bluettipower.com/products/30a-ac-charging-cable-for-split-phase-function 3.5 BLUETTI FUSION BOX The BLUETTI FUSION BOX as following, you could connect the FUSION BOX to the transfer switch by the L14 extension cord https://www.amazon.com/BLUETTI-Voltage-Capacity-Station-...
  • Page 17: Nema L14-30R Outlet

    How to connect the EP500 Pro to the US utility power 3.6 NEMA L14-30R outlet The BLUETTI 30A-AC-charging-cable need plug into a L14-30R outlet for charging both EP500 pro. The referenced purchase address as following https://www.amazon.com/Journeyman-Pro-Receptacle-Industrial-Grounding-Generator/dp/B07P8CGH52/ref=sr_1_7?crid=1WRMKA4V397S&keywords=l14- 30r+receptacle&qid=1657944329&s=hi&sprefix=%2Ctools%2C405&sr=1-7 4. More information: Website: www.bluettipower.com...
