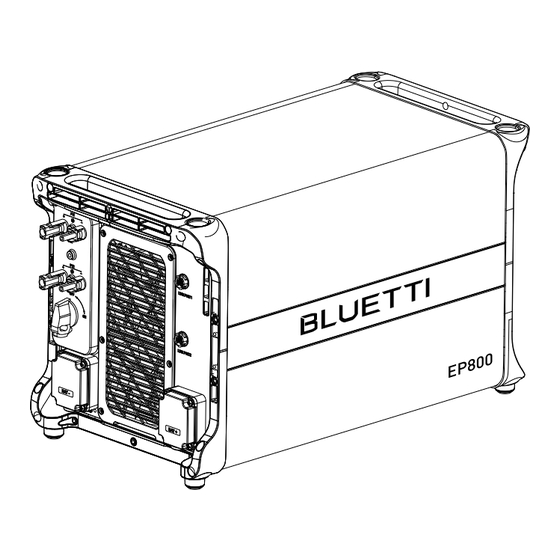

Bluetti EP800 Installation Manual
Hide thumbs Also See for EP800:

Advertisement

Quick Links

EP800
Generator Installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the EP800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bluetti EP800

  • Page 1 EP800 Generator Installation...
  • Page 2 Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world.
  • Page 3 The contents of this manual are subject to change without notice. Please get the latest version from: https://www.bluettipower.com/pages/user-guides If you have any questions or concerns about this manual, please contact BLUETTI support for further assistance. Shenzhen PowerOak Newener Co., Ltd.
  • Page 4: Working Principle

    1. Working Principle Manual Start: Enable the Generator startup settings in the BLUETTI app, and the system working mode operates as if in “Backup mode”. While the Generator is running, it supplies power to the load and fully charges the system. When the system is fully charged and the Generator stops running and switches to off-grid operation, the load is powered by the EP800 energy storage system.
  • Page 5: Electrical Diagrams

    2. Electrical Diagrams Manual Start Automatic Start Note: The EP800 electrical diagram has no CT on the grid side.
  • Page 6 3. Procedures Step 1: Wiring Connect the cables according to the electrical diagrams above. Note: Install a transfer-switch between the grid and the Generator. Step 2: Power on Press and hold the battery power button to activate the energy storage system. Refer to the product’s user manual and related materials for detailed instructions.
  • Page 7 When the power grid exists, a mutually exclusive switch is required between the power grid and the diesel engine.  Use only compatible Generators. Not all generators are compatible with EP800 , please contact BLUETTl before installation  5. Software Version (minimum required version) EP800 ESS: ARM502711, DSP502612, PBOX904311, BCU102514.
