Summary of Contents for Bluetti EB55
-

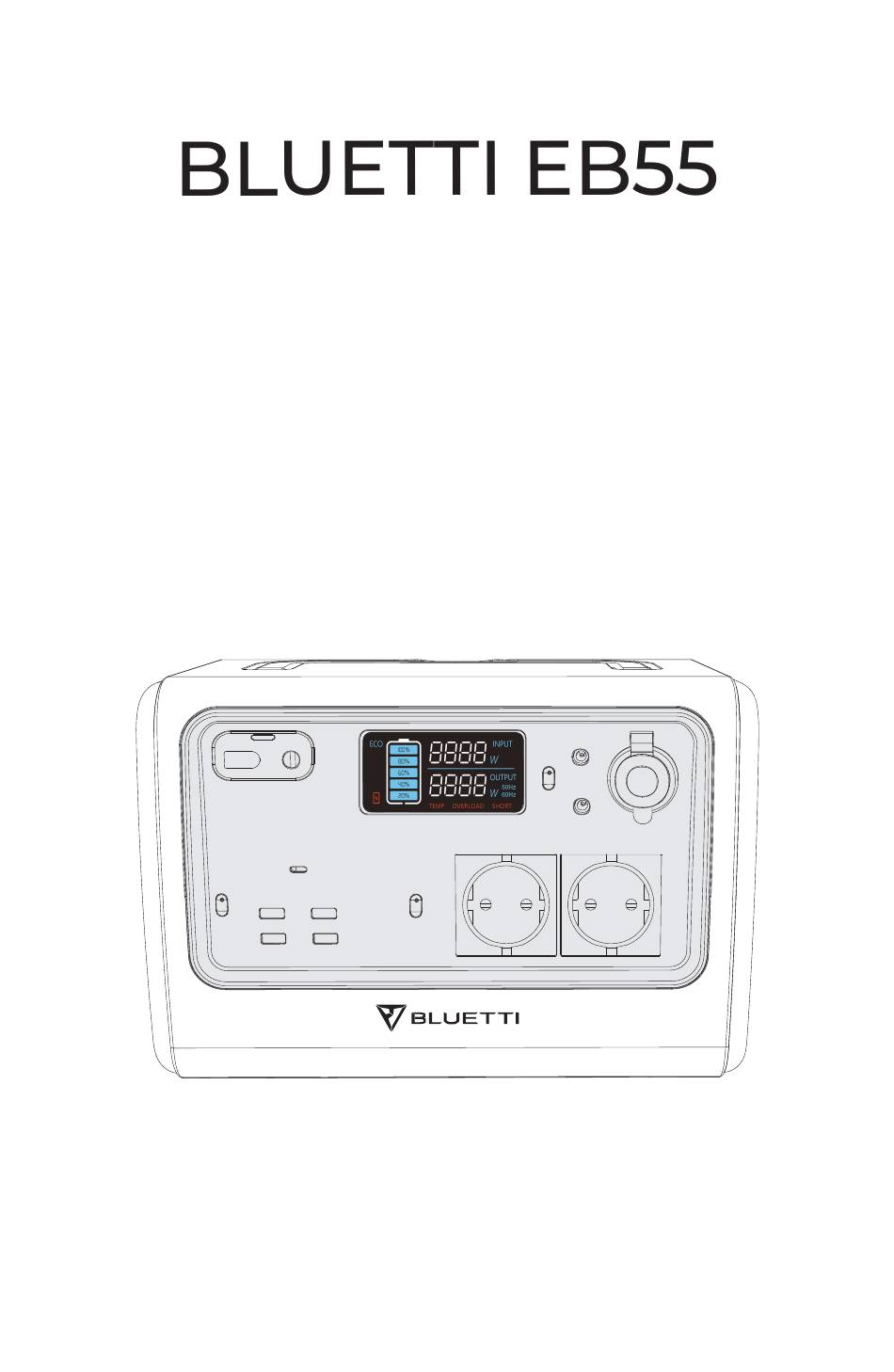

Page 1: English
User Manual... - Page 2 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 3: Table Of Contents
CONTENTS English 01-15 Important Safety Instructions User Maintenance Instructions Moving And Storage Instructions What's In The Box Standard Packaging Product Overview Diagram Specifications Operation LCD Screen Powering On/Off Mode Setting Charging Discharging Appendix FAQs (Frequently Asked Questions) Technical Support Deutsch 17-30... -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING – When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. c) Do not put fingers or hands into the product. -
Page 5: User Maintenance Instructions
n) DO NOT place the power station near heat sources. It is prohibited toplace the equipment in an environment with flammable, explosive gas, orsmoke. It is also prohibited to operate the equipment in this environment. Donot expose a power pack to fire or excessive temperature. Exposure to fire ortemperature above 130°... -
Page 6: What's In The Box
What's In The Box Standard Packaging Portable Power Station Warranty Card AC Adapter User Manual * Below accessories are not included in standard packaging and can be purchased seperately at https://www.bluettipower.eu. Car Charging Cable Solar Charging Cable DC7909-XT60 Female Cable * AC Adapter: 47in/120cm. -
Page 7: Product Overview
Product Overview Diagram EU Version UK Version AU Version 1. DC Input 7. Cigarette Lighter Port 2. Adapter Input 8. DC Power Button 3. LCD Screen 9. USB-A Port 4. Wireless Charging Pad 10. USB-C Port 5. DC 12V Power Button 11. -
Page 8: Specifications
Specifications EB55 General Battery Capacity 537Wh Cell Type LiFePO4 Dimensions (L*W*H) 10.94*7.87*7.79IN/278*200*198MM Weight 16.5LB/7.5KG Discharging Temperature -4-104°F/-20-40°C Charging Temperature 32-104°F/0-40°C Storage temperature -20-45°C(Optimal: 20-30°C )/-4-113°F(Optimal: 68-86°F) Working Humidity 10-90% AC Output Power 700W Surge 1400W Voltage(EU/UK/AU) 220-240VAC DC Output Voltage... -
Page 9: Operation
Operation LCD Screen a: ECO Mode e: Temperature Anomaly Alert b: Battery Capacity f: Output Power c: Input Power g: Overload Alert d: Low-battery Alert h: Short-circuit Alert Powering On/Off Powering on: Press the AC/DC/DC 12V Power Button to start up corresponding output. Green light(on the button) LCD Display * The LCD screen is on for 30-60 seconds. -
Page 10: Mode
: Under 'Setting Mode', press the AC power button to switch. Charging AC Charging Simply plug the EB55 into a standard wall outlet and start charging. AC Outlet(EU) AC Adapter(EU) When on this mode, the AC/DC output will automatically turn off after 4-hour low (≤10W for AC, ≤1W for DC) or no load to save power. - Page 11 Solar Charging Cable Car Charging Connect the EB55 directly to the vehicle plug-in cigarette lighter port via the car charging cable. Car Charging Cable OCV: Open circuit voltage. The maximum voltage that the solar panel can produce with no load on it.
- Page 12 Connect the AC adapter input plug to the generator while the output plug goes to the DC charging port of EB55. AC Adapter(EU) Dual Charging EB55 also supports dual charging. (e.g. Adapter+ PV Charging and Dual Adapter Charging). AC Outlet(EU) AC Adapter(EU) Car Charging Cable...
-
Page 13: Discharging
Discharging Phone LED Light Television 40-50 Times 20-30Hrs 5-6Hrs 10Wh Electric Tool Refrigerator Slow Cooker 5-6Hrs 4-5Hrs 2-3Hrs 200W 537Wh × DoD × η ÷ (load power) = charging time (estimated) Note: DoD refers to the Depth of Discharge, η is the local inverter efficiency. DoD=90%, η=90%. Load power and charging time are measured in Watt and Hour. -
Page 14: Appendix
A: Yes. Press the DC Power Button to enable the wireless charging. Q: Can it charge and discharge at the same time? A: Yes. It supports pass-through charging. EB55 comes with the premium LiFePO4 battery and proprietary Battery Management System to ensure that it can charge and discharge at the... -
Page 15: Technical Support
Technical Support Should you require any further assistance, please do not hesitate to contact BLUETTI service team. BLUETTI POWER INC Web: https://www.bluettipower.eu Mail: sale-eu@bluettipower.com Add: LindwurmstraBe 114, 80337 Munich, Germany.
